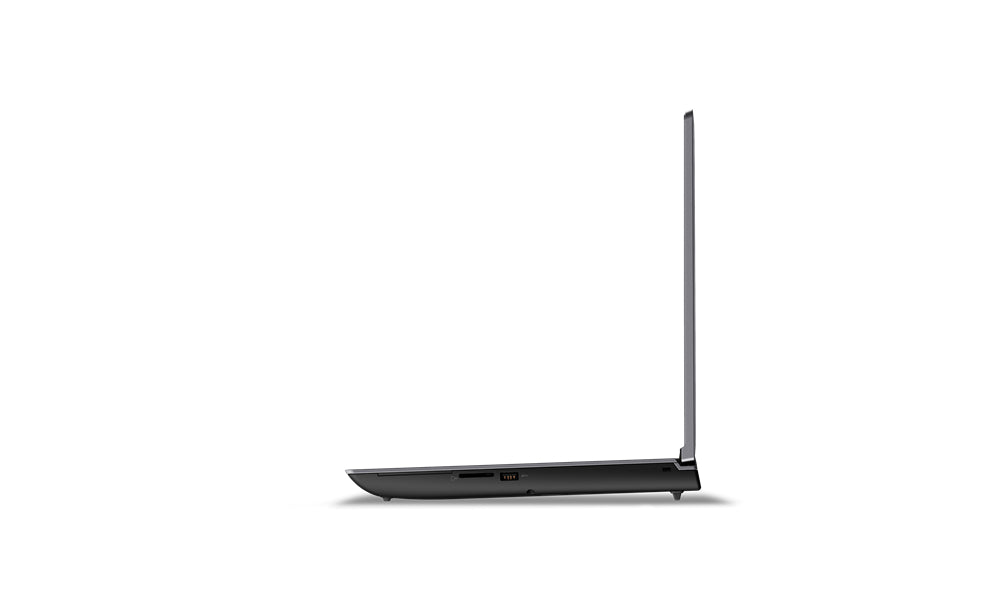

21D6005WUS - Lenovo P16 G1,W10P,I7,32GB,1TB,3YR,NO ETHERNET,NVIDIA RTX A4500 16GB GDDR6 ECC

The high-end mobile workstation at its best Lenovo breaks new ground with the ThinkPad P16 (16″ Intel) mobile workstation, a portable powerhouse for the ultimate professional. It's designed to deliver the highest levels of on-the-go performance, with up to 12th Gen Intel® Core™ HX-class processors and up to NVIDIA RTX™ graphics. Plus, it's got a fresh appearance and style that you'll love. Next-level performance & productivity Step out of the office and do more—without sacrifice. The ThinkPad P16 offers the best of everything in a standout, 16″ design. Get yours with up to 8TB of super-fast SSD storage and 128GB of DDR5 memory. Connectivity options include WiFi 6E*, along with available WWAN** and near-field communication. And the P16 PC is certified to run top ISV applications without missing a beat. New cooling features, stunning visuals The ThinkPad P16 mobile workstation has the industry's latest features—offering impressive functionality and great looks. To keep cool and quiet over long work sessions, it's got a dual-bypass design with dual fans, vapor chamber cooling, a keyboard air intake, and rear vents. Visually, you can choose from high-res FHD+ IPS to UHD+ OLED displays, one with DisplayHDR™ 500 True Black. Strong security—with easy recovery options Built with security in mind, the ThinkPad P16 comes preloaded with Lenovo ThinkShield solutions. The discrete Trusted Platform Module (dTPM) encrypts your data, a self-healing BIOS can restore system settings if needed, and a fingerprint reader enables secure, one-touch log-ins. There's even a sliding privacy shutter to physically close the webcam. Robust quality that endures A mobile workstation needs to perform wherever your day takes you—sometimes in extreme conditions. So, like all ThinkPad laptops, Lenovo tests the P16 against 12 military-grade requirements and 200+ quality checks. It can handle whatever life throws your way, from Arctic-like freezing temperatures to desert-style dust storms to day-to-day bumps, drops, and spills. A mobile workstation with a modern look At 16″, the redesigned workhorse mobile workstation, the ThinkPad P16 offers a slick, modern design in a portable size. It’s got standout looks, too, with a Storm Grey cover, red accent lines, and narrow-bezel display with a roomy 16:10 aspect ratio. In addition, the redesigned vents send hot air out the back of the system, not the sides.



Specification:



Design
Colour name	Storm Grey
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Gray
Display
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Display brightness	400 cd/m²
Contrast ratio (typical)	1200:1
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	16"
Anti-glare screen	Yes
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	12th gen Intel® Core™ i7
Bus type	DMI4
Configurable TDP-down	45 W
Processor cache	25 MB
Processor model	i7-12800HX
Processor boost frequency	4.8 GHz
Processor cores	16
Motherboard chipset	Intel WM690
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Memory
ECC	No
Memory form factor	SO-DIMM
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	NVMe, PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	1000 GB
Total SSDs capacity	1000 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	16 GB
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	NVIDIA RTX A5500
Discrete graphics memory type	GDDR6
Discrete GPU manufacturer	NVIDIA
Audio
Audio chip	Realtek ALC3306
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Installed
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 11 Pro
Technical details
Form factor	Clamshell
Product colour	Gray
Discrete graphics card memory	16 GB
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	No
Intel Flex Memory Access	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	94 Wh
Power
AC adapter power	230 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	Power on, SSD, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Certificates
Certification	EPEAT Gold ENERGY STAR 8.0 TCO Certified 9.0 RoHS MIL-STD-810H TÃœV ISV
Weight & dimensions
Width	14.3" (364 mm)
Depth	10.5" (266 mm)
Height	1.19" (30.2 mm)
Weight	6.5 lbs (2.95 kg)
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
On-board graphics card	Yes
Audio system	Dolby Atmos
Maximum shipping altitude	120000" (3048 m)
Anti-glare screen	Yes
