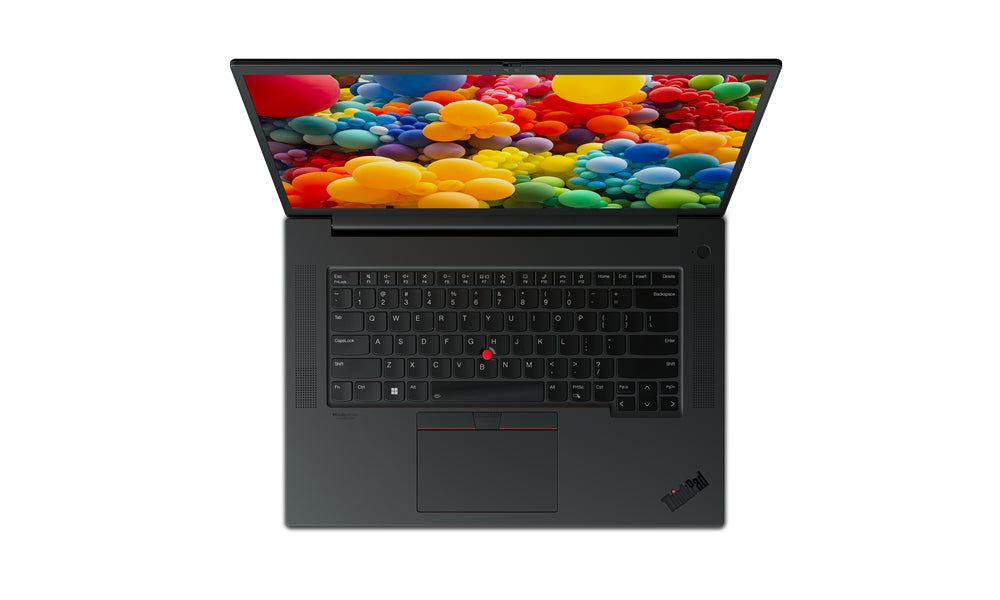

21DC003MUS - Lenovo P1 G5,W10P,I7,32G,1TB,3YR,NO ETHERNET RJ45 PORT,INTEGRATED INTEL IRIS XE GRAPHIC

Premium power The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications. Visually stunning Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world. Content creator’s dream come true Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes. Keeps your data—& privacy—safe The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered. Built to withstand the worst We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more. Specifications may vary depending upon region / model.



Specification:



Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Black
Display
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Display brightness	500 cd/m²
Contrast ratio (typical)	1200:1
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	16"
Anti-glare screen	Yes
Maximum refresh rate	165 Hz
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	12th gen Intel® Core™ i7
Configurable TDP-down	35 W
Processor cache type	Smart Cache
Processor cache	24 MB
Processor model	i7-12800H
Processor boost frequency	4.8 GHz
Processor cores	14
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Memory
ECC	No
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	NVIDIA RTX A2000
Discrete graphics memory type	GDDR6
Audio
Audio chip	Realtek ALC3306
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
Combo headphone/mic port	Yes
USB Power Delivery	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 11 Pro
Technical details
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	8 GB
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Flex Memory Access	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	90 Wh
Fast charging	Yes
Power
AC adapter power	170 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS, Power on, Supervisor, SSD
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Certificates
Certification	EPEAT Gold ENERGY STAR 8.0 RoHS compliant MIL-STD-810H TÃœV
Weight & dimensions
Width	14.2" (359.5 mm)
Depth	9.99" (253.8 mm)
Height	0.697" (17.7 mm)
Weight	3.99 lbs (1.81 kg)
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
On-board graphics card	Yes
Audio system	Dolby Atmos
Maximum shipping altitude	120000" (3048 m)
Anti-glare screen	Yes
