Description

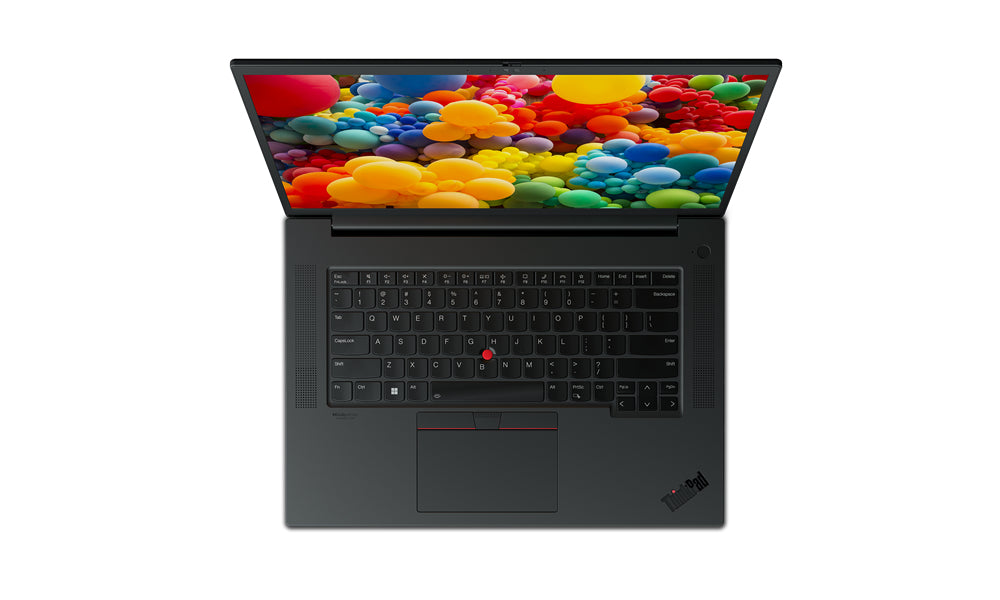

Premium power The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry-leading software vendors, and your applications will blaze through heavy workloads. Learn more about ISV certification. Visually stunning Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the optional Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world. Content creator’s dream come true Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Color Calibration for crisp, clear images, this device is easy on the eyes. Keeps your data—& privacy—safe The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and data. From discrete Trusted Platform Module (dTPM) to encrypt your data to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered. Built to withstand the worst We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more. Specifications may vary depending upon region / model.
Specification:
| Design | |
|---|---|
| Product type | Mobile workstation |
| Housing material | Aluminum, Carbon fiber Reinforced Polymer (CFRP) |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| Contrast ratio (typical) | 1200:1 |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 16" |
| Anti-glare screen | Yes |
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor generation | 12th gen Intel® Core™ i7 |
| Configurable TDP-down | 35 W |
| Processor cache | 24 MB |
| Processor model | i7-12800H |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 14 |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Memory | |
| ECC | No |
| Memory form factor | SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| Audio | |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 2 |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Windows Hello | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Software | |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 10 Pro |
| Bundled software | Lenovo® Security Assurance 48-month |
| Operating system installed | Windows 11 Pro |
| Technical details | |
| Housing material | Aluminum, Carbon fiber Reinforced Polymer (CFRP) |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 4 GB |
| Sustainability certificates | RoHS, ENERGY STAR, EPEAT Gold |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 90 Wh |
| Fast charging | Yes |
| Power | |
| AC adapter power | 170 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Password protection | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | BIOS, Power on, SSD, Supervisor |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 120000" (3048 m) |
| Certificates | |
| Certification | MIL-STD-810H TÃœV |
| Sustainability | |
| Sustainability certificates | RoHS, ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
| Width | 14.2" (359.5 mm) |
| Depth | 9.99" (253.8 mm) |
| Height | 0.697" (17.7 mm) |
| Weight | 3.99 lbs (1.81 kg) |
| Other features | |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| On-board graphics card | Yes |
| Audio system | Dolby Atmos |
| Maximum shipping altitude | 120000" (3048 m) |
| Anti-glare screen | Yes |
