27X0142 - Lexmark MARKNET N8230 FIBER ETHERNET 100BASE-FX,

Printing on ultra secure fiber networks.

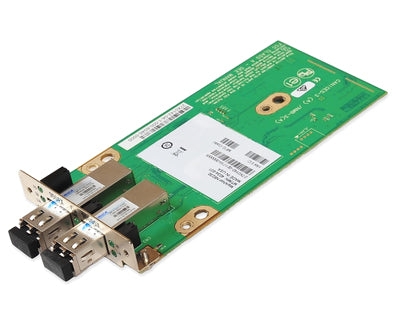

The MarkNet N8230 is an internal print server that allows direct connection of a Lexmark printer or MFP to a fiber optic network. It is compatible with two Ethernet over multi-mode fiber standards: 100BASE-FX or 1000BASE-SX.

The fiber optic edge

Support the ultimate in communication bandwidth and security: fiber optic networking. The Lexmark MarkNet™ N8230 Fiber Ethernet Print Server supports network communications at the highest level of speed and security by interfacing one of two LC-standard fiber ports with your supported Lexmark device’s internal Ethernet connection at full-duplex megabit (100Base-FX) or gigabit (1000Base-SX) fiber speeds.


Security and data accuracy

Fiber optics have greater electromagnetic immunity, eliminating the chance of radio frequency interference in electrically “noisy” environments such as a factory or warehouse. And since fiber optic systems do not radiate electromagnetic signals like copper transmission lines, even sophisticated electronic methods of intercepting information won’t work.

Easy, integrated card installation

Install the card in your supported Lexmark device without external boxes or adapters. You get fiber connectivity in a single, easily installable internal card, shipped in configurations that support many Lexmark devices (see specifications), including appropriate adapters and documentation.

Network communications security

The print server supports SNMPv3, IPSec and 802.1x authentication data encryption for communication security in all supported printers and MFPs. Advanced functions such as VLAN filtering packet processing provide added speed.
Network Protocol Support

Simultaneous active protocol support allows you to print from different systems without reconfiguring. Like standard Lexmark Ethernet connections, that includes TCP/IP IPv4, TCP/IP IPv6, Novell (IPX/SPX including NetWare Directory Services) and LexLink (DLC/LLC). It even supports on-board verification of IP headers and TCP/UDP checksums for received data.

Embedded Web Page

The embedded web page allows administrators to flash update printer firmware or access printer settings using a web browser to easily monitor printer status and change default settings.



Specification:



Hard drive
Component for	Printer/MFU
HDD capacity	320 GB
Compatible products	- Lexmark MX711de - Lexmark MX710de - Lexmark CS510de - Lexmark CS510dte - Lexmark MS812de - Lexmark MS812dn - Lexmark MS810de - Lexmark MS811dn - Lexmark MS810dn - Lexmark MS812dtn - Lexmark MS810n - Lexmark MS811n - Lexmark MS810dtn - Lexmark MS811dtn - Lexmark MS711dn - Lexmark MS710dn - Lexmark MS911de
Features
Type	HDD
Component for	Printer/MFU
Country of origin	China
HDD capacity	320 GB
Compatible products	- Lexmark MX711de - Lexmark MX710de - Lexmark CS510de - Lexmark CS510dte - Lexmark MS812de - Lexmark MS812dn - Lexmark MS810de - Lexmark MS811dn - Lexmark MS810dn - Lexmark MS812dtn - Lexmark MS810n - Lexmark MS811n - Lexmark MS810dtn - Lexmark MS811dtn - Lexmark MS711dn - Lexmark MS710dn - Lexmark MS911de
Technical details
Harmonized System (HS) code	84717050
Country of origin	China
Weight & dimensions
Package width	5.98" (152 mm)
Package height	1.5" (38 mm)
Package weight	8.11 oz (230 g)
Package depth	8.5" (216 mm)
Packaging data
Package width	5.98" (152 mm)
Package height	1.5" (38 mm)
Package weight	8.11 oz (230 g)
Package depth	8.5" (216 mm)
Other features
Country of origin	China
