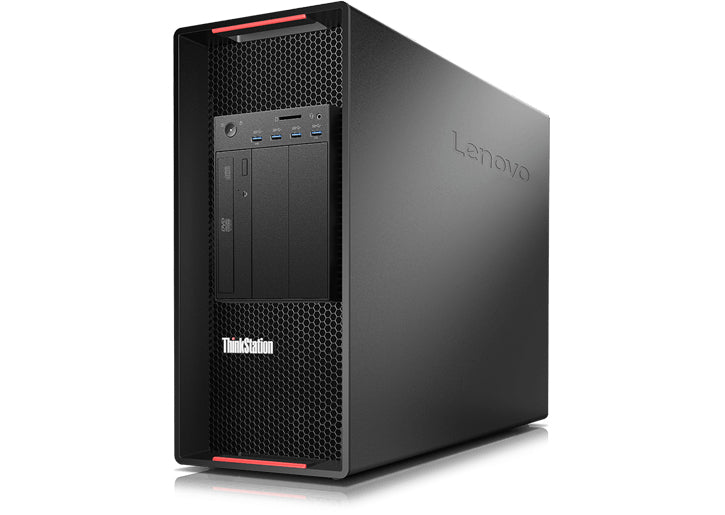

30B90020US - Lenovo THINKSTATION P910,TOWER,INTEL E5-2623 V4 (2.60GHZ, 10MB),WINDOWS 7 PROFESSIONAL

ADVANCED DUAL-PROCESSOR WORKSTATION.
Get extreme performance from this dual-processor workhorse, powered by Intel® Xeon® processors and NVIDIA® Quadro® graphics and featuring the most I/O in the industry. Perfect for professionals running intensive apps in the engineering & architecture, media & entertainment, oil & gas, or medical industries.

Powerful Performance
Thanks to the increased performance of the latest Intel® Xeon® E5-2600 v4 series processors and NVIDIA® Quadro® P6000 graphics, the ThinkStation P910 has the power and speed to handle your workload with ease, including the toughest ISV-certified applications

Higher Storage and Memory
The 2400Mhz DDR4 memory – up to 1TB – has a higher bandwidth than the previous generation, for a faster response. And bigger, faster storage options – including up-to-1TB M.2 PCIe SSD with RAID capability and up-to-8TB 3.5" SATA HDDs – can be configured for up to 48TB total storage.

Unparalleled Versatility
The ThinkStation P910 features a superior modular design, including Flex Trays holding up to two drives per bay and feature blind connection for cable-free versatility.. Configure only the components you need, for the ultimate in usability and savings.

Steadfast Reliability
Patented Tri-Channel Cooling ensures each component receives cool air, using a unique air baffle. The ThinkStatio P910 uses fewer fans and stays cooler than the competition, so it continues to run for less downtime and a higher bottom line.

Ease of Use
Intuitive red touch points guide you to quick and easy component changes – even to the motherboard and swappable power supply – without having to use a single tool. And best-of-breed cable management means no wires or plugs, and superior serviceability.



Specification:



Processor
Stepping	R0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Number of QPI links	2
Bus type	QPI
Maximum internal memory supported by processor	1536 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Thermal Design Power (TDP)	85 W
Tcase	74 °C
Processor series	Intel Xeon E5-2600 v4
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	68.3 GB/s
ECC supported by processor	Yes
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	20 MB
Processor frequency	2.1 GHz
Processor model	E5-2620V4
Number of processors installed	2
Processor manufacturer	Intel
Processor boost frequency	3 GHz
System bus rate	8 GT/s
Processor socket	LGA 2011-v3
Processor threads	16
Processor cores	8
PCI Express slots version	3.0
Processor family	Intel® Xeon® E5 v4
Memory
ECC	Yes
Internal memory	32 GB
Memory layout (slots x size)	2 x 16 GB
Maximum internal memory	1000 GB
Memory slots	16x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory channels	Quad-channel
Storage
Storage media	SSD
Optical drive type	DVD±RW
SSD interface	M.2
SSD capacity	1000 GB
Number of SSDs installed	1
Card reader integrated	Yes
Total storage capacity	1000 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	16 GB
Discrete graphics adapter model	NVIDIA® Quadro® P5000
Optical drive
Optical drive type	DVD±RW
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 2.0 ports quantity	4
Serial ports quantity	1
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Product colour	Black
Chassis type	Tower
Design
Product colour	Black
Chassis type	Tower
Performance
Embedded options available	Yes
Product type	Workstation
Software
Recovery operating system	Windows 7 Professional
Operating system installed	Windows 10
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Supported instruction sets	AVX 2.0
Scalability	2S
Processor package size	45 x 52.5 mm
Processor code	SR2R6
Physical Address Extension (PAE)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	2
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Conflict-Free processor	Yes
Processor ARK ID	92986
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Physical Address Extension (PAE)	46 bit
Power
Power supply	1300 W
Weight & dimensions
Width	7.87" (200 mm)
Depth	24.4" (620 mm)
Height	17.6" (446 mm)
Packaging content
Display included	No
Other features
Processor manufacturer	Intel
