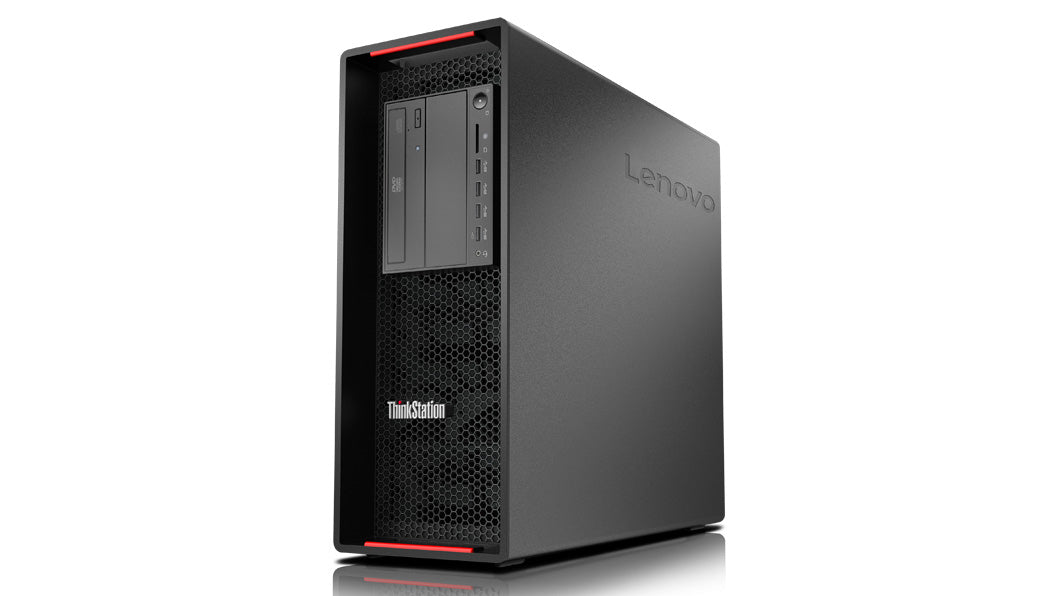

ThinkStation P720 Tower Workstation Powered by Intel® Xeon® processors and NVIDIA® Quadro® graphics, this dual-processor workstation is a tough performer. Ideal for professionals with heavy data-processing needs, the P720 offers fast processing, massive storage options, and parallel-processing capability. Packs a punch Enjoy the increased performance of the latest Intel® Xeon® processors and P6000 graphics. The ThinkStation P720 has the power and speed to handle your workload with ease, including the toughest ISV-certified applications. Faster memory, bigger storage New, faster 2666 Mhz DDR4 memory — up to 384 GB — has more bandwidth than the previous generation, for a speedy response. And bigger, faster storage options include an onboard M.2 PCIe solution, the capacity to handle up to 60 TB of HDD storage, and support for up to 12 drives. That means the P720 can handle even the most demanding workloads. Unparalleled versatility The ThinkStation P720 features a superior modular design, including Flex Trays that hold up to two drives per bay for versatility. Configure only the components you need, for the ultimate in usability and savings. Built to last Patented Tri-Channel Cooling ensures each component receives cool air. A smaller, redesigned air baffle offers protection for high-density memory configurations. And the ThinkStation P720 uses fewer fans and stays cooler than the competition, so it continues to run for less downtime and a higher bottom line. Easy to enhance Intuitive red touch points guide you to quick and easy component changes — even to the motherboard and swappable power supply — without having to use a single tool. And best-of-breed cable management means no wires or plugs, and superior serviceability.
Specification:
| Processor | |
|---|---|
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Number of QPI links | 2 |
| Bus type | UPI |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 77 °C |
| Maximum number of PCI Express lanes | 48 |
| ECC supported by processor | Yes |
| Processor cache type | L3 |
| Conflict-Free processor | Yes |
| Processor cache | 11 MB |
| Processor frequency | 2.1 GHz |
| Processor model | 4110 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 3 GHz |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 16 |
| Processor cores | 8 |
| PCI Express slots version | 3.0 |
| Processor family | Intel® Xeon® |
| Memory | |
| Non-ECC | No |
| ECC | Yes |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 384 GB |
| Memory slots | 12x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory channels | Hepta-channel |
| Storage | |
| Intel® Optane™ Memory module installed | No |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| RAID support | Yes |
| Number of HDDs installed | 1 |
| Optical drive type | DVD±RW |
| HDD capacity | 1000 GB |
| HDD speed | 7200 RPM |
| HDD interface | SATA III |
| RAID levels | 0,1,5,6,10 |
| HDD size | 3.5" |
| Card reader integrated | Yes |
| Total storage capacity | 1000 GB |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Number of speaker outputs | 3 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI port | No |
| On/off button | Yes |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Cable lock slot type | Kensington |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Product colour | Black |
| Chassis type | Tower |
| Audio system | High Definition Audio |
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Cable lock slot | Yes |
| Audio output channels | 5.1 channels |
| Motherboard chipset | Intel® C621 |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Design | |
| Volume | 36 L |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Cable lock slot | Yes |
| Viewing window | No |
| Performance | |
| Embedded options available | Yes |
| BIOS type | UEFI |
| Audio chip | Realtek ALC662 |
| Password protection | Yes |
| Password protection type | Supervisor |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Audio output channels | 5.1 channels |
| Motherboard chipset | Intel® C621 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Execute Disable Bit | Yes |
| Supported instruction sets | AVX,AVX 2.0,AVX-512,SSE4.2 |
| Scalability | 2S |
| Processor package size | 76.0 x 56.5 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 123547 |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Power | |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 900 W |
| Operational conditions | |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Volume | 36 L |
| Width | 6.89" (175 mm) |
| Depth | 19.1" (485 mm) |
| Height | 17.6" (446 mm) |
| Packaging content | |
| Manual | Yes |
| Display included | No |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
