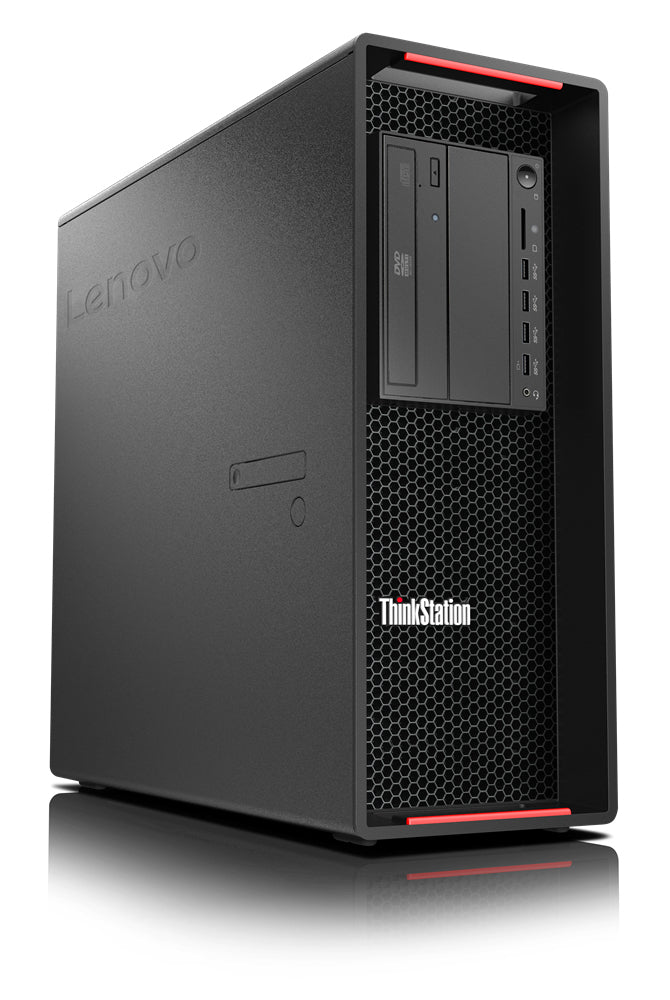

30BA00G0US - Lenovo THINKSTATION P720, INTEL XEON 4214R (3.50GHZ, 16.5MB), WINDOWS 10 PRO 64, 16.0GB

Designed for users, engineered for IT managers Powerful enough to render VR, this high-performance workstation lets you tap the speed and efficiency of Intel® Xeon® processing and NVIDIA® Quadro® graphics. It also comes with ISV certification from all the major vendors like Autodesk®, Bentley®, and Siemens®. To learn more about ISV certification, click here.Easy to set up, deploy, and manage, the ThinkStation P720 endures rigorous testing in extreme environmental conditions. So you can count on its reliability and durability. And with an exceptional design and build quality, it gives you increased serviceability along with decreased downtime. A win-win for any organization.What's more, fine-tuning and optimizing system performance is a breeze. Simply download and run the Lenovo Performance Tuner and Lenovo Workstation Diagnostics apps. Packs a punch Enjoy the increased performance of the latest Intel® Xeon® processors and up to NVIDIA® Quadro® RTX 8000 graphics. The Thinkstation P720 scales graphics memory and performance to drive the most demanding AI, rendering, and visual computing workloads with ease—including the toughest ISV-certified applications. Unparalleled versatility The P720 features superior modular design, including Flex Trays that hold up to two drives per bay. Configure only the components you need for the ultimate in usability and savings. Faster memory, bigger storage New, faster 2933 MHz DDR4 memory — up to 768 GB — has more bandwidth than the previous generation, for a speedy response. And bigger, faster storage options include an onboard M.2 PCIe solution, the capacity to handle up to 48TB of HDD storage, and support for up to 12 drives. That means the P720 can handle even the most demanding workloads. #2933 MHz requires Intel Xeon Gold or Platinum CPU Built to last Patented Tri-Channel Cooling ensures each component receives cool air. A smaller, redesigned air baffle offers protection for high-density memory configurations. And the ThinkStation P720 uses fewer fans and stays cooler than the competition, so it continues to run for less downtime and a higher bottom line. Easy to enhance Intuitive red touch points guide you to quick and easy component changes — even to the motherboard and swappable power supply — without having to use a single tool. And best-of-breed cable management means no wires or plugs, and superior serviceability.



Specification:



Processor
Processor generation	2nd Generation Intel® Xeon® Scalable
Processor cache	13.75 MB
Processor frequency	2.2 GHz
Processor model	4210
Number of processors installed	2
Processor manufacturer	Intel
Processor boost frequency	3.2 GHz
Processor cores	10
Processor family	Intel Xeon Silver
Memory
ECC	Yes
Internal memory	16 GB
Maximum internal memory	768 GB
Memory slots	12x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	DVD±RW
SSD interface	NVMe, PCI Express
Number of SSDs installed	1
Card reader integrated	Yes
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
Optical drive
Optical drive type	DVD±RW
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 2.0 ports quantity	2
PS/2 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Tower
Audio system	High Definition Audio
Placement supported	Vertical
Cable lock slot	Yes
Motherboard chipset	Intel® C621
Design
Volume	36 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Cable lock slot	Yes
Viewing window	Yes
Performance
Embedded options available	Yes
Audio chip	Realtek ALC662
Password protection	Yes
Password protection type	Power on, Supervisor
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel® C621
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro for Workstations
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	1000 W
Operational conditions
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	-598.4 - 480000" (-15.2 - 12192 m)
Certificates
Certification	EPEAT™ Silver GREENGUARD® RoHS compliant
Weight & dimensions
Volume	36 L
Width	6.89" (175 mm)
Depth	19.1" (485 mm)
Height	17.6" (446 mm)
Packaging content
Cables included	AC
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
Processor manufacturer	Intel
