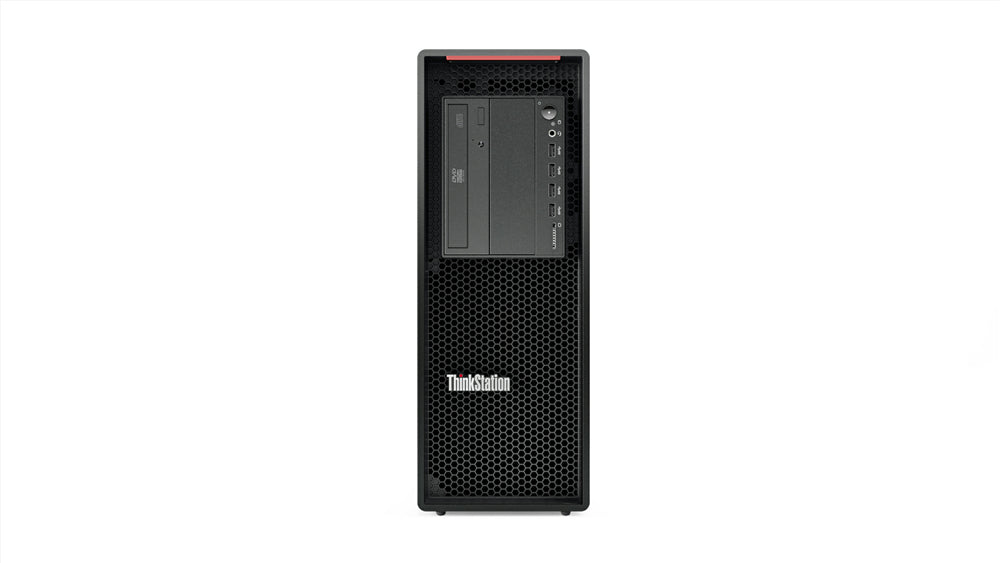

30BE00LGUS - Lenovo P520,UBUNTU LINUX,W-2245,128GB,512GB,1TB,3YR

Performance you can count on Fueled by the latest Intel® Xeon® processors and NVIDIA® Quadro® graphics, the ThinkStation P520 delivers jaw-dropping performance and stunning visuals. Whether it's computer-aided drafting or 3D animation software, this tower has the processing and visual muscle to boost your creativity and productivity to new levels. Configurable and reliable Your P520 can be configured to meet your specific needs. Choose up to 256 GB of memory, and a variety of I/O configurations and storage options. However configure your P520, ThinkStation workstations are well known for their reliability. Get more done, quickly and easily With our patented Tri-Channel Cooling technology, the P520 manages internal air flow and power supply better than most workstations. As a result, it runs more smoothly and efficiently—even when handling large workloads. The P520 also supports RAID technology and has two M.2 PCIe SSD slots embedded on the motherboard, enabling you to enjoy blistering-fast storage speeds. Hassle-free, tool-free Should you ever need to swap any components, there’s no need to worry about tools and screws. Simply slide off the side panel and away you go. Lenovo can also help automate many of the manual tasks associated with deploying new machines, from asset tagging to custom image loading. Durable and flexible Like every ThinkStation before it, the P520 has undergone rigorous testing under extreme conditions. ISV-certified, it boasts error-correcting code memory, ensuring even greater accuracy and reliability. What's more, the front FLEX module gives you a range of options, including a media card reader, optical drives, and a variety of additional front access I/O ports. VR Ready With virtual reality (VR), almost anything's possible—from revolutionary designs to stunning special effects to highly complex simulations. With the powerful P520 and top-of-the range, high-performance NVIDIA Quadro® graphics (optional), a truly immersive VR experience awaits. A helping hand when you need it You’ll be able to keep your P520 running at its peak thanks to Lenovo PC Diagnostics. Available for both desktop and smartphone, this intelligent app can help you diagnose and troubleshoot potential system issues. Should your machine ever fail to boot, an error code for additional assistance will be sent wirelessly to your smartphone. In addition, there's Lenovo Performance Tuner. Free to download and easy to use, this software can help you fine tune your workstation to your specific software. Better for the planet—and your bottom line The P520 meets some of the world's most comprehensive environmental standards. A GREENGUARD®-certified workstation, it has also been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. And as a result of its energy efficiency, the P520 can even help lower your utility bills.



Specification:



Processor
Processor cache	16.5 MB
Processor frequency	3.9 GHz
Processor model	W-2245
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.5 GHz
Processor cores	8
Processor family	Intel Xeon W
Memory
ECC	Yes
Internal memory	128 GB
Memory slots	8x DIMM
Internal memory type	DDR4-SDRAM
Storage
Storage media	HDD+SSD
Number of storage drives installed	2
Number of HDDs installed	1
Optical drive type	No
HDD capacity	1000 GB
SSD interface	NVMe, PCI Express
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	1512 GB
SSD form factor	M.2
Total HDDs capacity	1000 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	48 GB
On-board graphics card	No
Discrete graphics card model	NVIDIA RTX A6000
Discrete graphics memory type	GDDR6
On-board graphics card model	Not available
Number of discrete graphics cards	1
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 2.0 ports quantity	2
PS/2 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Tower
Audio system	High Definition Audio
Placement supported	Vertical
Cable lock slot	Yes
Motherboard chipset	Intel® C422
Design
Volume	33 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Cable lock slot	Yes
Performance
Embedded options available	No
Audio chip	Realtek ALC662
Password protection	Yes
Password protection type	Power on, Supervisor
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel® C422
Software
Operating system installed	Ubuntu Linux
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	No
Intel Software Guard Extensions (Intel SGX)	No
Intel Demand Based Switching	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	1000 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Weight & dimensions
Volume	33 L
Width	6.5" (165 mm)
Depth	18.1" (460 mm)
Height	17.3" (440 mm)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	No
Processor manufacturer	Intel
