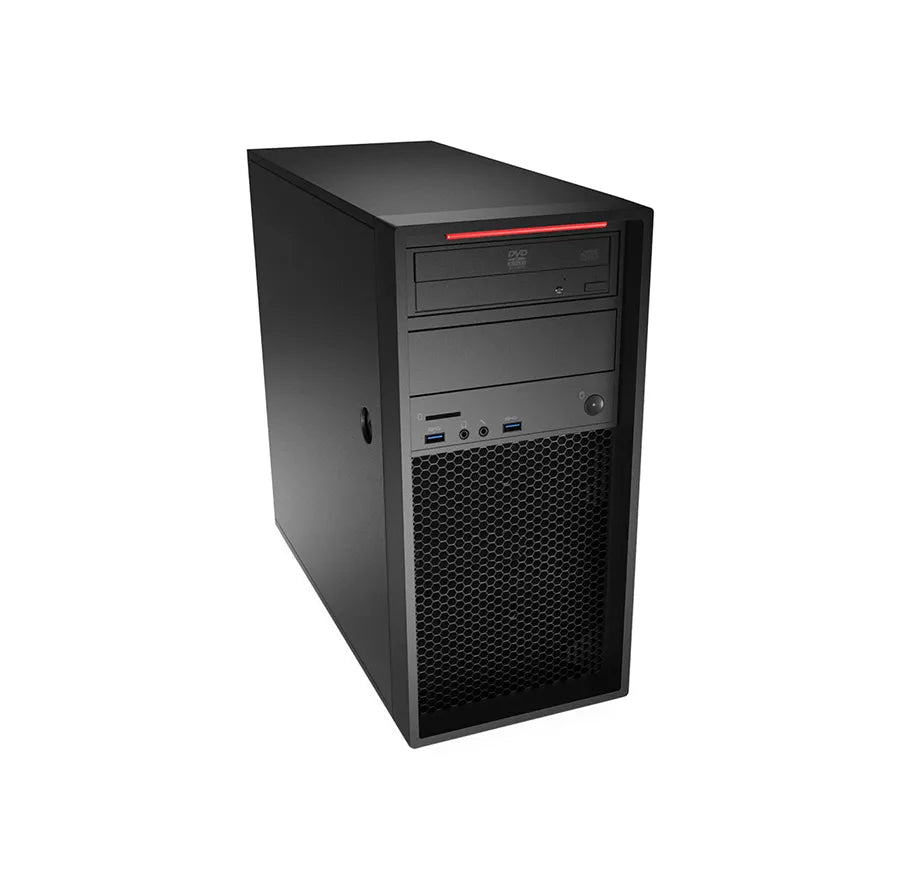

30BH0022US - Lenovo P320,W10P,I7,8GB,1TB,3YR
30BH0022US - Lenovo P320,W10P,I7,8GB,1TB,3YR
SKU:30BH0022US
Regular price
$1,037.40 USD
Regular price
Sale price
$1,037.40 USD
Unit price
per
Workstation performance. Desktop price. Next-gen processing. Professional-grade graphics. Blazing-fast memory. Cutting-edge hard drive. The ThinkStation P320 tower workstation boasts all the key productivity features you need, and then some. As well as being reliable and stable, it's also energy efficient, VR-ready, and ISV-certified. What's more, it's totally configurable, scalable, and affordable. Designed to be Uncomplicated From integrated handles to tool-less access, the P320 is designed to simplify life for everyone. Moving it around is easy, while upgrading hardware is a breeze. This 25L tower also has a range of customizable ports. With Built-in Peace of Mind Like every ThinkStation before it, the P320 has undergone rigorous, extreme testing. It has also been ISV-certified and boasts error-correcting code (ECC) memory, ensuring even greater accuracy and reliability. It's So Green, It Saves You Green With indoor air quality so closely tied to our health, you'll be pleased to know that the P320 meets some of the world's most comprehensive standards for chemical emissions. As a result, it's been awarded GREENGUARD certification and it's so energy efficient, it has been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS Platinum PSU. So by helping the planet, the P320 can help to lower your bottom line too.
Specification:
Processor | |
---|---|
Processor generation | 6th gen Intel Core i5 |
Stepping | R0 |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor codename | Skylake |
Bus type | DMI3 |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
Memory clock speeds supported by processor | 2133,1333,1600,1866 MHz |
Thermal Design Power (TDP) | 65 W |
Tcase | 71 °C |
Processor series | Intel Core i5-6500 Desktop series |
PCI Express configurations | 1x16,2x8,1x8+2x4 |
Maximum number of PCI Express lanes | 16 |
Memory bandwidth supported by processor (max) | 34.1 GB/s |
ECC supported by processor | No |
Memory voltage supported by processor | 1.35 V |
Processor cache type | Smart Cache |
Conflict-Free processor | Yes |
Processor cache | 6 MB |
Processor frequency | 3.2 GHz |
Processor model | i5-6500 |
Number of processors installed | 1 |
Processor manufacturer | Intel |
Processor boost frequency | 3.6 GHz |
System bus rate | 8 GT/s |
Processor socket | LGA 1151 (Socket H4) |
Processor threads | 4 |
Processor cores | 4 |
PCI Express slots version | 3.0 |
Processor family | Intel Core i5 |
Memory | |
Non-ECC | Yes |
Internal memory | 8 GB |
Memory layout (slots x size) | 1 x 8 GB |
Maximum internal memory | 64 GB |
Memory slots | 4x DIMM |
Internal memory type | DDR4-SDRAM |
Memory channels | Dual-channel |
Storage | |
Storage media | HDD |
Number of storage drives installed | 1 |
Number of HDDs installed | 1 |
Optical drive type | DVD±RW |
HDD capacity | 1000 GB |
HDD speed | 7200 RPM |
HDD interface | SATA III |
HDD size | 3.5" |
Card reader integrated | Yes |
Total storage capacity | 1000 GB |
Graphics | |
Discrete graphics adapter | No |
On-board graphics adapter dynamic frequency (max) | 1050 MHz |
On-board graphics adapter burst frequency | 1050 MHz |
On-board graphics adapter base frequency | 350 MHz |
Maximum on-board graphics adapter memory | 1.74 GB |
Number of displays supported (on-board graphics) | 3 |
On-board graphics adapter OpenGL version | 4.4 |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter ID | 1912 |
On-board graphics adapter | Yes |
Discrete graphics adapter model | Not available |
On-board graphics adapter model | Intel HD Graphics 530 |
Optical drive | |
Optical drive type | DVD±RW |
Optical drives quantity | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet LAN data rates | 1000 Mbit/s |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
RS€�232/422 port | Yes |
VGA (D-Sub) ports quantity | 1 |
USB 2.0 ports quantity | 2 |
Microphone in | Yes |
Line-out | Yes |
Line-in | Yes |
Headphone outputs | 2 |
Ethernet LAN (RJ-45) ports | 1 |
DVI port | No |
DisplayPorts quantity | 2 |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 2 |
PCI Express slots version | 3.0 |
Technical details | |
Intel 64 | Yes |
Intel Wireless Display (Intel WiDi) | Yes |
Product type | Workstation |
Trusted Platform Module (TPM) | Yes |
Intel Turbo Boost Technology | 2.0 |
Intel Hyper Threading Technology (Intel HT Technology) | No |
Intel Quick Sync Video Technology | Yes |
Intel Identity Protection Technology (Intel IPT) | Yes |
Product colour | Black |
Chassis type | Tower |
Number of 5.25" bays | 2 |
Motherboard chipset | Intel C236 |
Sustainability certificates | EPEAT Bronze |
Design | |
Volume | 25 L |
Product colour | Black |
Chassis type | Tower |
Number of 5.25" bays | 2 |
Performance | |
Embedded options available | Yes |
Audio chip | Realtek ALC662 |
Product type | Workstation |
Trusted Platform Module (TPM) | Yes |
Motherboard chipset | Intel C236 |
Software | |
Operating system architecture | 64-bit |
Operating system installed | Windows 10 Pro |
Processor special features | |
Embedded options available | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel OS Guard | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel TSX-NI | Yes |
Intel Trusted Execution Technology | Yes |
Intel Stable Image Platform Program (SIPP) | Yes |
Intel Secure Key | Yes |
Intel InTru 3D Technology | Yes |
Intel Insider | Yes |
Intel Clear Video Technology | Yes |
Intel Clear Video HD Technology (Intel CVT HD) | Yes |
Intel AES New Instructions (Intel AES-NI) | Yes |
Idle States | Yes |
Execute Disable Bit | Yes |
Intel Software Guard Extensions (Intel SGX) | Yes |
Intel Smart Cache | Yes |
Intel Enhanced Halt State | Yes |
Intel Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Thermal solution specification | PCG 2015C |
Supported instruction sets | SSE4.2,AVX 2.0,SSE4.1 |
Scalability | 1S |
Processor package size | 37.5 x 37.5 mm |
Processor code | SR2BX |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Graphics & IMC lithography | 14 nm |
CPU configuration (max) | 1 |
Intel Virtualization Technology (VT-x) | Yes |
Intel TSX-NI version | 1.00 |
Intel Stable Image Platform Program (SIPP) version | 1.00 |
Intel Small Business Advantage (SBA) version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel Identity Protection Technology version | 1.00 |
Conflict-Free processor | Yes |
Processor ARK ID | 88184 |
Intel 64 | Yes |
Intel Wireless Display (Intel WiDi) | Yes |
Intel Turbo Boost Technology | 2.0 |
Intel Hyper Threading Technology (Intel HT Technology) | No |
Intel Quick Sync Video Technology | Yes |
Intel Identity Protection Technology (Intel IPT) | Yes |
Power | |
Power supply | 250 W |
Sustainability | |
Sustainability certificates | EPEAT Bronze |
Weight & dimensions | |
Volume | 25 L |
Width | 6.89" (175 mm) |
Depth | 16.8" (426 mm) |
Height | 14.8" (376 mm) |
Weight | 28.7 lbs (13 kg) |
Packaging content | |
Mouse included | Yes |
Display included | No |
Keyboard included | Yes |
Other features | |
Trusted Platform Module (TPM) | Yes |
On-board graphics adapter | Yes |
Optical drives quantity | 1 |
Processor manufacturer | Intel |
