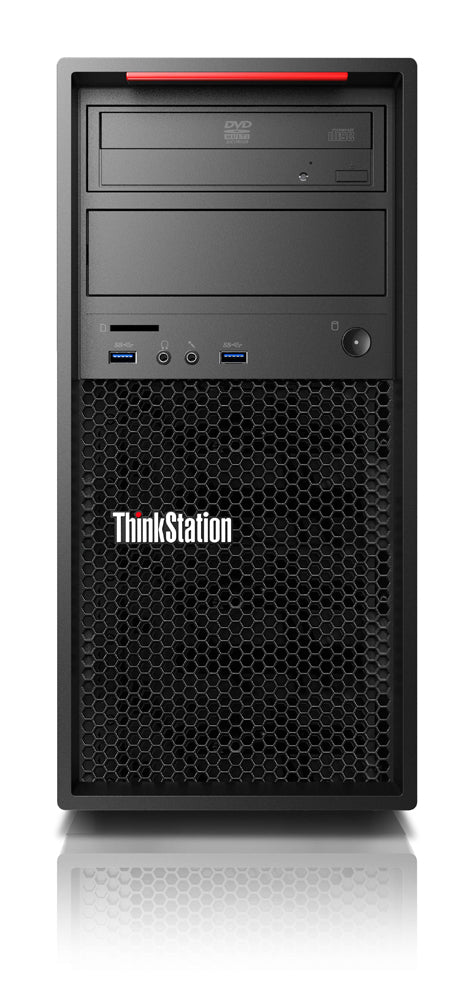

30BH002TUS - Lenovo P320,W10P,I5,8GB,256GB,3YR

Workstation performance. Desktop price. Next-gen processing. Professional-grade graphics. Blazing-fast memory. Cutting-edge hard drive. The ThinkStation P320 tower workstation boasts all the key productivity features you need, and then some. As well as being reliable and stable, it's also energy efficient, VR-ready, and ISV-certified. What's more, it's totally configurable, scalable, and affordable. Designed to be Uncomplicated From integrated handles to tool-less access, the P320 is designed to simplify life for everyone. Moving it around is easy, while upgrading hardware is a breeze. This 25L tower also has a range of customizable ports. With Built-in Peace of Mind Like every ThinkStation before it, the P320 has undergone rigorous, extreme testing. It has also been ISV-certified and boasts error-correcting code (ECC) memory, ensuring even greater accuracy and reliability. It's So Green, It Saves You Green With indoor air quality so closely tied to our health, you'll be pleased to know that the P320 meets some of the world's most comprehensive standards for chemical emissions. As a result, it's been awarded GREENGUARD® certification and it's so energy efficient, it has been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. So by helping the planet, the P320 can help to lower your bottom line too.



Specification:



Processor
Processor generation	7th gen Intel® Core™ i5
Stepping	B0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Kaby Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	65 W
Processor series	Intel Core i5-7500 Desktop Series
PCI Express configurations	1x16,1x8+2x4,2x8
Maximum number of PCI Express lanes	16
ECC supported by processor	No
Memory voltage supported by processor	1.35 V
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	6 MB
Processor frequency	3.4 GHz
Processor model	i5-7500
Processor manufacturer	Intel
Processor boost frequency	3.8 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	4
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel Core i5
Memory
Non-ECC	Yes
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	64 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	DVD±RW
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	Yes
Total storage capacity	512 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	2 GB
On-board graphics adapter dynamic frequency (max)	1100 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	5912
On-board graphics adapter	Yes
Discrete graphics adapter model	NVIDIA® Quadro® P600
On-board graphics adapter model	Intel® HD Graphics 630
Optical drive
Optical drive type	DVD±RW
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	2
Serial ports quantity	1
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	2
Expansion slots
PCI Express x16 slots	1
PCI Express x1 slots	2
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	Tower
Sustainability certificates	ENERGY STAR
Design
Product colour	Black
Chassis type	Tower
Performance
Embedded options available	Yes
Product type	Workstation
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Processor code	SR335
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	97123
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply	250 W
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	6.89" (175 mm)
Depth	16.7" (424.2 mm)
Height	14.8" (375.9 mm)
Weight	28.7 lbs (13 kg)
Packaging content
Display included	No
Other features
On-board graphics adapter	Yes
Processor manufacturer	Intel
