Description

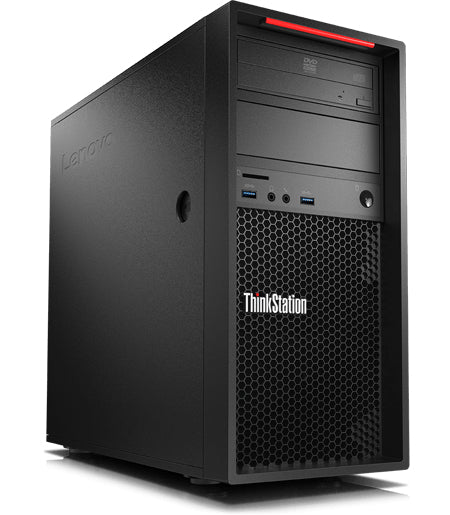

Next-gen processing. Professional-grade graphics. Blazing-fast memory. Cutting-edge hard drive. The ThinkStation P320 tower workstation boasts all the key productivity features you need, and then some. As well as being reliable and stable, it's also energy efficient, VR-ready, and ISV-certified. What's more, it's totally configurable, scalable, and affordable. Designed to Perform When it comes to mission-critical systems and performance, you can count on the ThinkStation P320 small form factor. Featuring next-gen Intel® Core™ i and Xeon® processors, plus state-of-the-art NVIDIA® Quadro® graphics, this powerful workstation boasts the fastest storage technology on the market. As well as being VR-ready and scalable, the P320 can be configured to meet your business needs now—and in the future. Designed to be Uncomplicated From integrated handles to tool-less access, the P320 is designed to simplify life for everyone. Moving it around is easy, while upgrading hardware is a breeze. This 25L tower also has a range of customizable ports, including ultraslim optical drive, 29-in-1 media card reader, and Intel® Thunderbolt™ 3 ports. With Built-in Peace of Mind Like every ThinkStation before it, the P320 has undergone rigorous, extreme testing. It has also been ISV-certified and boasts error-correcting code (ECC) memory, ensuring even greater accuracy and reliability. It's So Green, It Saves You Green With indoor air quality so closely tied to our health, you'll be pleased to know that the P320 meets some of the world's most comprehensive standards for chemical emissions. As a result, it's been awarded GREENGUARD® certification and it's so energy efficient, it has been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. So by helping the planet, the P320 can help to lower your bottom line too.
Specification:
| Processor | |
|---|---|
| Processor generation | 7th gen Intel® Core™ i7 |
| Stepping | B0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 65 W |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Maximum number of PCI Express lanes | 16 |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor cache | 8 MB |
| Processor frequency | 3.6 GHz |
| Processor model | i7-7700 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.2 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 8 |
| Processor cores | 4 |
| PCI Express slots version | 3.0 |
| Processor family | Intel Core i7 |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 4x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Storage | |
| Intel® Optane™ Memory module installed | Yes |
| Storage media | HDD |
| Number of storage drives installed | 2 |
| Number of HDDs installed | 1 |
| Optical drive type | DVD±RW |
| HDD capacity | 1000 GB |
| HDD speed | 7200 RPM |
| HDD interface | SATA III |
| Number of SSDs installed | 1 |
| HDD size | 3.5" |
| Card reader integrated | Yes |
| Total storage capacity | 1000 GB |
| Intel® Optane™ Memory module capacity | 16 GB |
| Graphics | |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| On-board graphics adapter burst frequency | 1150 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0x5912 |
| On-board graphics adapter 4K support | Yes |
| On-board graphics adapter | Yes |
| On-board graphics adapter model | Intel® HD Graphics 630 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Motherboard chipset | Intel® C236 |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Design | |
| Volume | 25 L |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Performance | |
| Embedded options available | Yes |
| Audio chip | Realtek ALC662 |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel® C236 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR338 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 97128 |
| Intel® Optane™ Memory Ready | Yes |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Power | |
| Power supply | 250 W |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Volume | 25 L |
| Width | 6.89" (175 mm) |
| Depth | 16.8" (426 mm) |
| Height | 14.8" (376 mm) |
| Weight | 28.7 lbs (13 kg) |
| Packaging content | |
| Mouse included | Yes |
| Keyboard included | Yes |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics adapter | Yes |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
