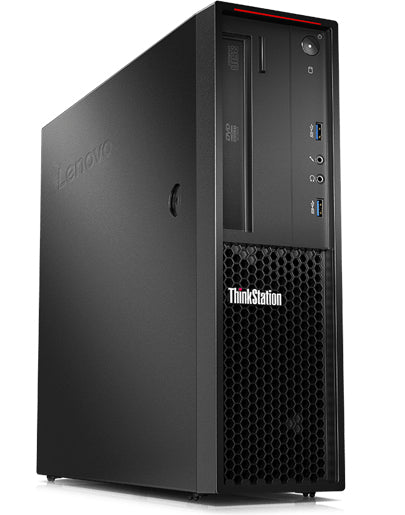

Features Designed to Perform When it comes to mission-critical systems and performance, you can count on the ThinkStation P320 small form factor. Featuring powerful, next-gen Intel® Core™ i and Xeon® processors, plus state-of-the-art NVIDIA® Quadro® graphics, this compact, scalable workstation boasts the fastest storage technology on the market. What's more, the P320 can be configured to meet your business needs now—and in the future. Designed to be Uncomplicated From integrated handles to tool-less access, the ThinkStation P320 is designed to simplify life for everyone. Installing and moving it around is easy, while upgrading hardware is a breeze. This 12L space-saving tower also has a range of customizable ports, including ultraslim optical drive, 29-in-1 media card reader, and Intel® Thunderbolt™ 3 ports. With Built-in Peace of Mind Like every ThinkStation before it, the P320 has undergone rigorous, extreme testing. It has also been ISV-certified and boasts error-correcting code (ECC) memory, ensuring even greater accuracy and reliability. It's So Green, It Saves You Green With indoor air quality so closely tied to our health, you'll be pleased to know that the P320 meets some of the world's most comprehensive standards for chemical emissions. As a result, it has been awarded GREENGUARD® certification and is so energy efficient, it has been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. So by helping the planet, the P320 can help to lower your bottom line too.
Specification:
| Processor | |
|---|---|
| Stepping | R0 |
| Processor operating modes | 32-bit, 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Thermal Design Power (TDP) | 80 W |
| Processor series | Intel Xeon E3-1200 v5 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | Yes |
| Memory voltage supported by processor | 1.35 V |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor cache | 8 MB |
| Processor frequency | 3.5 GHz |
| Processor model | E3-1240V5 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 3.9 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor front side bus | 2133 MHz |
| PCI Express slots version | 3.0 |
| Processor family | Intel® Xeon® E3 v5 |
| Memory | |
| Non-ECC | Yes |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 4x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| Optical drive type | DVD±RW |
| HDD capacity | 1000 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Card reader integrated | Yes |
| Total storage capacity | 1000 GB |
| Graphics | |
| Discrete graphics adapter | Yes |
| Discrete graphics adapter memory | 2 GB |
| Discrete graphics adapter model | NVIDIA® Quadro® P600 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| DisplayPorts quantity | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel® Active Management Technology (Intel® AMT) | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Product type | Workstation |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Product colour | Black |
| Chassis type | SFF |
| Intel® Smart Response Technology | No |
| Placement supported | Horizontal/Vertical |
| Motherboard chipset | Intel® C236 |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Design | |
| Product colour | Black |
| Chassis type | SFF |
| Placement supported | Horizontal/Vertical |
| Performance | |
| Embedded options available | No |
| Audio chip | Realtek ALC662 |
| Product type | Workstation |
| Motherboard chipset | Intel® C236 |
| Software | |
| Operating system installed | Windows 7 Professional |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel Clear Video Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Built-in Visuals Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel HD Graphics | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Smart Cache | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR2LD |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Graphics & IMC lithography | 14 nm |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 88176 |
| Intel 64 | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel® Active Management Technology (Intel® AMT) | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Response Technology | No |
| Power | |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 210 W |
| Weight & dimensions | |
| Width | 4.02" (102 mm) |
| Depth | 15.5" (394.5 mm) |
| Height | 13.3" (338 mm) |
| Weight | 17.4 lbs (7.9 kg) |
| Packaging content | |
| Manual | Yes |
| Display included | No |
| Other features | |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
