Description

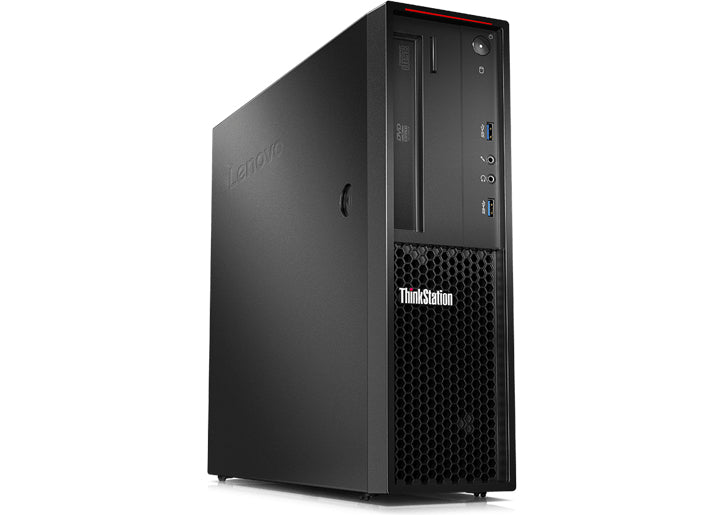

Designed to Perform When it comes to mission-critical systems and performance, you can count on the ThinkStation P320 small form factor. Featuring powerful, next-gen Intel® Core™ i and Xeon® processors, plus state-of-the-art NVIDIA® Quadro® graphics, this compact, scalable workstation boasts the fastest storage technology on the market. What's more, the P320 can be configured to meet your business needs now—and in the future. Designed to be Uncomplicated From integrated handles to tool-less access, the ThinkStation P320 is designed to simplify life for everyone. Installing and moving it around is easy, while upgrading hardware is a breeze. This 12L space-saving form-factor also has a range of customizable ports, including ultraslim optical drive, 29-in-1 media card reader, and Intel® Thunderbolt™ 3 ports. With Built-in Peace of Mind Like every ThinkStation before it, the P320 has undergone rigorous, extreme testing. It has also been ISV-certified and boasts optional error-correcting code (ECC) memory, ensuring even greater accuracy and reliability. It's So Green, It Saves You Green With indoor air quality so closely tied to our health, you'll be pleased to know that the P320 meets some of the world's most comprehensive standards for chemical emissions. As a result, it has been awarded GREENGUARD® certification and is so energy efficient, it has been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. So by helping the planet, the P320 can help to lower your bottom line too.
Specification:
| Processor | |
|---|---|
| Stepping | U0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Bus type | QPI |
| Maximum internal memory supported by processor | 512 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Thermal Design Power (TDP) | 120 W |
| Tcase | 66 °C |
| PCI Express configurations | 1x16,1x4,1x8 |
| Maximum number of PCI Express lanes | 48 |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| ECC supported by processor | Yes |
| Conflict-Free processor | Yes |
| Processor cache | 8.25 MB |
| Processor frequency | 3.2 GHz |
| Processor model | W-2104 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 (Socket R4) |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor front side bus | 2400 MHz |
| PCI Express slots version | 3.0 |
| Processor family | Intel® Xeon® |
| Memory | |
| ECC | Yes |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 128 GB |
| Memory slots | 4x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory channels | Quad-channel |
| Storage | |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| Optical drive type | DVD±RW |
| HDD capacity | 1000 GB |
| HDD speed | 7200 RPM |
| HDD interface | SATA III |
| HDD size | 3.5" |
| Card reader integrated | Yes |
| Total storage capacity | 1000 GB |
| Graphics | |
| Discrete graphics adapter | Yes |
| Discrete graphics adapter memory | 2 GB |
| Discrete graphics adapter model | NVIDIA® Quadro® P600 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | Tower |
| Audio system | High Definition Audio |
| Placement supported | Vertical |
| Motherboard chipset | Intel® C422 |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Design | |
| Volume | 25 L |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Performance | |
| Embedded options available | No |
| Audio chip | Realtek ALC662 |
| Password protection | Yes |
| Password protection type | Power on |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel® C422 |
| Software | |
| Recovery operating system | Windows 7 Professional |
| Operating system installed | Windows 7 Professional |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Supported instruction sets | AVX,AVX 2.0,AVX-512,SSE4.2 |
| Scalability | 1S |
| Processor package size | 45 x 52.5 mm |
| Processor code | SR3LH |
| Physical Address Extension (PAE) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 125039 |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Power | |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 500 W |
| Operational conditions | |
| Operating altitude | -598.4 - 120000" (-15.2 - 3048 m) |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Volume | 25 L |
| Width | 6.89" (175 mm) |
| Depth | 16.8" (426 mm) |
| Height | 14.8" (375 mm) |
| Weight | 32 lbs (14.5 kg) |
| Packaging content | |
| Manual | Yes |
| Display included | No |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
