Description

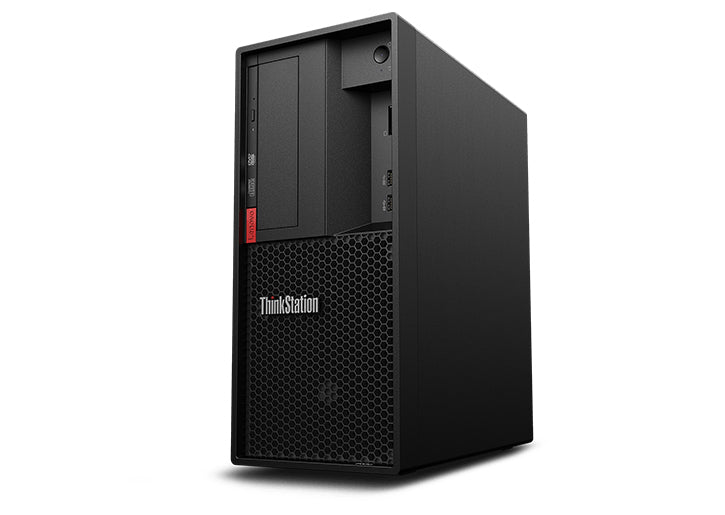

IT can expect more The ThinkStation P330 Tower workstation delivers performance and speed to power through tasks. The latest-gen Intel® Core™ vPro or Xeon® CPUs and optional Optane™ memory combines with direct M.2 storage support on the motherboard for blazing speed and responsiveness. Plus, this workstation is primed for security with data encryption through TPM and a door that can be physically locked with a padlock. The cheetah of workstations Designed for acceleration, the ThinkStation P330 Tower delivers mind-blowing speeds of up to 5.0 GHz, with the latest generation of Intel® Xeon® or Intel Core™ vPro processors boasting up to 8 cores per CPU. Combined with optional Intel Optane™ memory and ISV certifications, this workstation is speedy. Certified VR-ready Supporting up to NVIDIA® Quadro RTX™ 4000 graphics, the ThinkStation P330 Tower is certified VR-ready by NVIDIA. This entry-level system lets you create truly immersive virtual reality experiences at a low cost. Additionally, this workstation includes ISV certification from all the major vendors including Autodesk®, Bentley®, Dassault®, PTC®, and Siemens®. Performance efficiency made simple With the Lenovo Performance Tuner, it’s a cinch to get the most out of your ThinkStation P330 Tower. Simply download the free software, and choose a focus area: Processor Affinity (which lets you designate an app to run on specific cores), Power Management, Resource Monitoring and Tuning, Graphics Management, and BIOS Management. There’s a tutorial to help get you started and the interface is highly intuitive. Learn more What are you waiting for? The ThinkStation P330 Tower includes optional Intel® Optane™ memory, for a faster, smoother, and more responsive PC experience. Working in tandem with your hard drive, Intel Optane memory can recognize the way you work and create. As a result, everything’s accelerated from everyday computing and opening media-rich files to loading high-performance datasets and professional ISV applications. We'll come to you Should your ThinkStation P330 Tower ever require maintenance, you can rest assured with the standard 3-year warranty with on-site support.
Specification:
| Processor | |
|---|---|
| Processor generation | 9th gen Intel® Core™ i7 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 95 W |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| ECC supported by processor | No |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor frequency | 3.6 GHz |
| Processor model | i7-9700K |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.9 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 8 |
| Processor cores | 8 |
| PCI Express slots version | 3.0 |
| Processor family | Intel® Core™ i7 |
| Memory | |
| Non-ECC | Yes |
| ECC | No |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 4x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| RAID support | Yes |
| Optical drive type | DVD±RW |
| SSD interface | NVMe |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | Yes |
| Graphics card DisplayPorts quantity | 4 |
| Discrete graphics card memory | 5 GB |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E98 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card 4K support | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro P2200 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Number of discrete graphics cards | 1 |
| Graphics card Open GL support | Yes |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| DisplayPorts quantity | 2 |
| On/off button | Yes |
| M.2 card slot (storage) | 1 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
| Technical details | |
| Number of 2.5" bays | 1 |
| Intel 64 | Yes |
| Cable lock slot type | Kensington |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | Tower |
| Audio system | High Definition Audio |
| Placement supported | Vertical |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 2 |
| Cable lock slot | Yes |
| Motherboard chipset | Intel C246 |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Design | |
| Volume | 18 L |
| Number of 2.5" bays | 1 |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 2 |
| Cable lock slot | Yes |
| Country of origin | United States |
| Performance | |
| Embedded options available | No |
| Audio chip | Realtek ALC233 |
| Market positioning | Business |
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel C246 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Thermal solution specification | PCG 2015D |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Graphics & IMC lithography | 14 nm |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 186604 |
| Intel® Optane™ Memory Ready | Yes |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Power | |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply input voltage | 100 - 240 V |
| Power supply | 400 W |
| Operational conditions | |
| Operating altitude | -598.4 - 120000" (-15.2 - 3048 m) |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 30 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Non-operating altitude | -598.4 - 420000" (-15.2 - 10668 m) |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Weight & dimensions | |
| Volume | 18 L |
| Width | 6.5" (165 mm) |
| Depth | 12.9" (328 mm) |
| Height | 14.8" (376 mm) |
| Weight | 28.2 lbs (12.8 kg) |
| Packaging content | |
| Windows keys | Yes |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Features | |
| Country of origin | United States |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Optical drives quantity | 1 |
| Windows keys | Yes |
| Processor manufacturer | Intel |
| Country of origin | United States |
