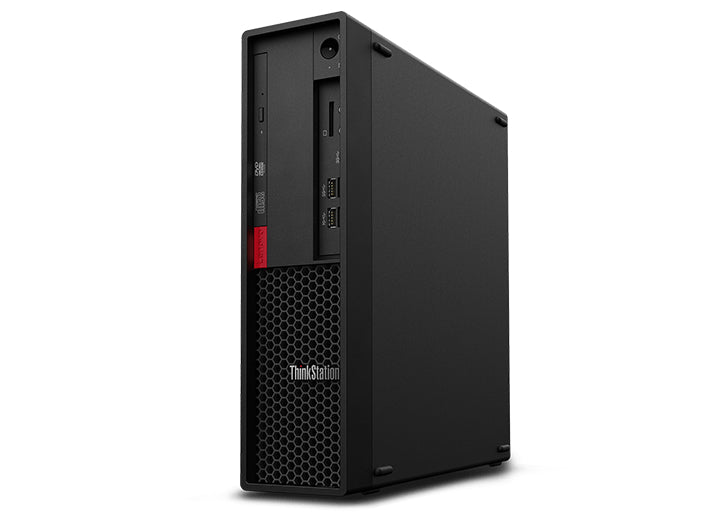

30D10009US - Lenovo P330 SFF,W10P,I5,16GB,256GB,3YR

IT can expect more The P330 SFF workstation delivers performance and speed to power through tasks. The latest-gen Intel® Core™ vPro or Xeon® CPUs and Optane™ memory combines with dual M.2 storage support on the motherboard for blazing speed and responsiveness. Plus, the P330 SFF is primed for security with data encryption through TPM and a door to internal components that physically locks. The cheetah of workstations Designed for acceleration, the ThinkStation P330 SFF delivers mind-blowing speeds of up to 4.2 GHz, with the latest generation of Intel® Xeon® or Intel Core™ vPro processors boasting up to 6 cores per CPU. Combined with Intel Optane™ memory and ISV certifications, this workstation is speedy. Plus, at 30% smaller than the previous generation, it fits just about anywhere you want to put it. Let your eyes run wild Supporting up to dual NVIDIA® Quadro® P1000 graphics, this workstation enables up to 6 independent displays. What’s more, with independent software vendor (ISV) certifications, you can expect apps to run seamlessly with no lag time—your biggest challenge may just be which monitor to watch. ISV certification from all the major vendors, including Autodesk®, Bentley®, Dassault®, PTC®, and Siemens®. Performance efficiency made simple With the Lenovo Performance Tuner, it’s a cinch to get the most out of your ThinkStation P330 SFF. Simply download the free software, and choose a focus area: Processor Affinity (which lets you designate an app to run on specific cores), Power Management, Resource Monitoring and Tuning, Graphics Management, and BIOS Management. There’s a tutorial to help get you started and the interface is highly intuitive. Lenovo ThinkStation P330 SFF workstation showing Windows 10 Pro on the monitor, and positioned with keyboard and mouse. What are you waiting for? The ThinkStation P330 SFF includes Intel® Optane™ memory, for a faster, smoother, and more responsive PC experience. Working in tandem with your hard drive, it can recognize the way you work and create. As a result, everything’s accelerated from everyday computing and opening media-rich files to loading high-performance datasets and professional ISV applications. We’ll come to you Should your ThinkStation P330 SFF ever require maintenance, you can rest assured with the standard 3-year warranty with on-site support.



Specification:



Processor
Processor generation	9th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI3
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	65 W
PCI Express configurations	1x8+2x4,1x16,2x8
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	41.6 GB/s
Processor cache type	Smart Cache
Processor cache	9 MB
Processor frequency	2.9 GHz
Processor model	i5-9400
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.1 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	6
Processor cores	6
Processor front side bus	2666 MHz
PCI Express slots version	3.0
Processor family	Intel Core i5
Memory
Non-ECC	Yes
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	64 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD interface	M.2
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	512 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	2 GB
On-board graphics adapter dynamic frequency (max)	1050 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0X3E98/x92
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
Discrete graphics adapter model	NVIDIA® Quadro® P620
On-board graphics adapter model	Intel® UHD Graphics 630
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	2
Microphone in	Yes
Line-out	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	SFF
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Motherboard chipset	Intel C246
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	8.4 L
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Performance
Embedded options available	No
Audio chip	Realtek ALC233
Password protection	Yes
Password protection type	Power on, Supervisor
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel C246
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Processor ARK ID	134898
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply	260 W
Operational conditions
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	30 - 90%
Storage relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Volume	8.4 L
Width	3.64" (92.5 mm)
Depth	12" (305.6 mm)
Height	13.5" (343.5 mm)
Weight	13.2 lbs (6 kg)
Packaging content
Manual	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics adapter	Yes
Processor manufacturer	Intel
