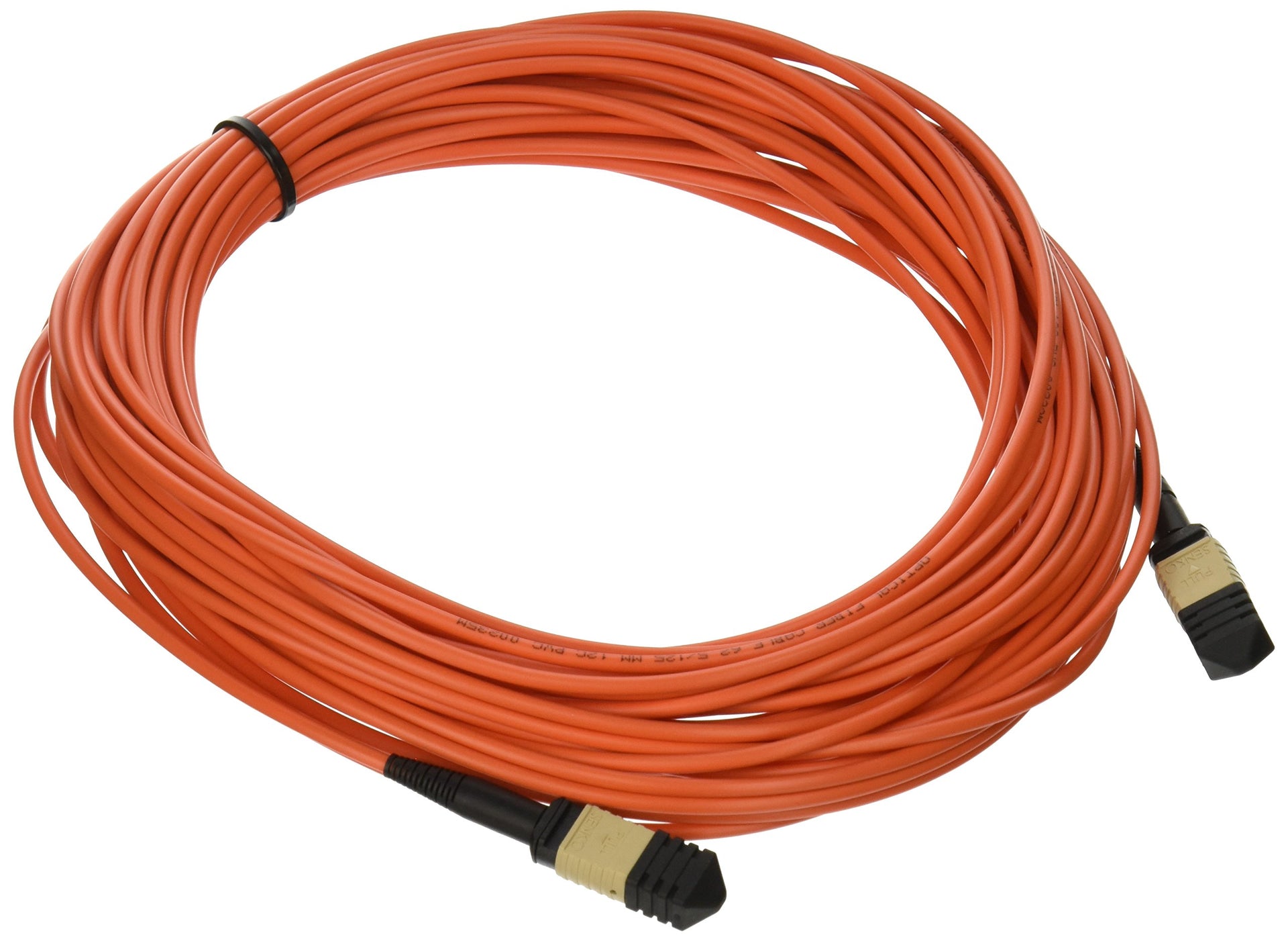

31414 - Legrand C2G 15M MTP 62.5/125 OM1 FIBER-ORG

Our MTP fiber assembly consists of twelve 62.5/125µm multimode fibers under one PVC jacket. Save time and money with MTP’s increased ease of installation - simply pull one cable rather than twelve. With our MTP, it's possible to run a single cable that automatically terminates twelve fibers in one easy plug-in. The small form factor of an MTP connector provides a higher port density. Make MTP your choice for high-density fiber networks! Specifications: - Connector: MTP Female to MTP Female - Fiber Size: 62.5/125µm x 12 - Jacket Color: Orange - Jacket Type: PVC (OFNR-rated) - Pinning: Straight Through - Type: Multimode Features: - Easier installation - Small, rugged design - MTP connector is easy to engage and disengage with its "push-pull" release mechanism - Latch design prevents the plug from snagging when jumper cables are being routed - Immune to electrical interference - Application: Fast Ethernet, Fibre Channel, ATM and Gigabit Ethernet



Specification:



Technical details
Cable length	1181.1" (30 m)
Weight (imperial)	3 lbs
Features
Cable length	1181.1" (30 m)
Product colour	Orange
Connector 2 gender	Female
Connector 1 gender	Female
Weight & dimensions
Cable length	1181.1" (30 m)
Other features
Core / cladding diameter	62.5/125 µm
Weight (imperial)	3 lbs
