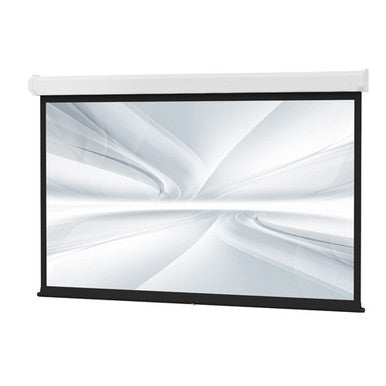

34730 - Da-Lite MODEL C W/CSR,113D 60X96NPA MW

The Model C with CSR is a manual wall or ceiling mounted screen with Da-Lite's Controlled Screen Return (CSR). Offered exclusively by Da-Lite, the Controlled Screen Return (CSR) system adds an impressive feature to the Model C design. The CSR system ensures the quiet controlled return of the screen into the case providing optimal performance and smooth, consistent operation. Screens with the CSR feature must be fully extended. There are not intermediate stopping positions. Provides great performance and smooth operation. An optional choice of seven veneer finishes are also available for the screen case for a warm, elegant look. Veneers from left to right (top row) Honey Maple, Medium Oak, Heritage Walnut, Mahogany, (bottom row) Light Oak, Natural Walnut, Cherry. Cases with Honey Maple, Light Oak and Medium Oak finishes come standard with white end caps. Cherry, Mahogany, Natural Walnut and Heritage Walnut cases come with black end caps. Optional Floating Mounting Brackets allow the Model C to be mounted onto wall or ceiling studs and aligned left or right after installation by releasing two sets of screws. Veneer can also be added to the Floating Mounting Bracket to match a veneer case.



Specification:



Performance
Native aspect ratio	16:10
Viewable screen height (H)	59.8" (152 cm)
Viewable screen width (W)	96.1" (2.44 m)
Diagonal (metric)	113" (287 cm)
Diagonal	113"
Viewing angle	30°
Screen gain	2.4
Format	Wide
Drive type	Manual
Design
Case colour	White
Mounting type	Ceiling/wall
Weight & dimensions
Case L3	103.1" (2.62 m)
