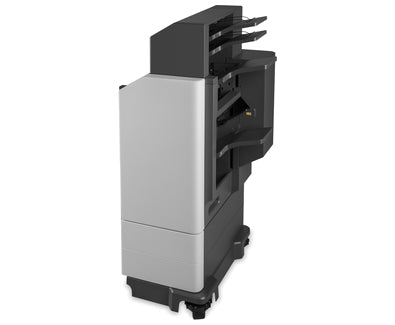

42K1267 - Lexmark CX825, CX860 MULTI-POSITION STAPLE PUNCH FINISHER S-LV

Configure your Lexmark
Provides offset stacking, stapling and hole punching with 2 mailbox bins

The Multi-position Staple Punch Finisher contains 2 mailbox bins, a standard bin and a staple bin. Each mailbox bin supports up to 125 sheets and the standard output bin supports up to 600 sheets. The staple bin supports up to 1100 sheets. The total output capacity for the finisher is up to 1950 sheets of paper.

Staple Bin
The staple bin supports up to 1100 sheets of plain bond paper, 16 to 24 lb. (60 to 90 gsm) for A4, A5 (long edge fed), Executive, Folio, JIS B5, Letter, Legal and Oficio sizes. Stapling of up to 10 sets of up to 50 sheets of paper is supported with 1- or 2-position stapling (long edge).

Hole Punch
2-, 3- or 4- hole punching (long edge) is supported to any finisher bin if the bin supports the paper size. Plain bond paper, 16 to 24 lb. (60 to 90 gsm) in A4, A5 (short edge fed), Executive, Folio, JIS B5, Letter, Oficio and Statement sizes is supported for hole punch. Note that Statement size is not supported to the staple bin.

Offset Stacking
Offset stacking is supported to the standard output bin for bond papers in A4, A5, A6, Executive, Folio, JIS B5, Letter, Oficio and Statement sizes.

Sensing
Output bin full and output bin empty sensing is supported.

Consideration
The use of this finisher requires the multifunction printer to have 2 of the 550-Sheet Trays installed with the caster base.



Specification:



Features
Stapling capacity	1100 sheets
Stapler	Yes
Hole punching	Yes
Country of origin	China
Media types
Supported media weight (imperial)	24 lbs
Weight & dimensions
Width	24.5" (622.3 mm)
Weight	122.4 lbs (55.5 kg)
Height	50.2" (1275 mm)
Depth	22.6" (574 mm)
Technical details
Supported media weight (imperial)	24 lbs
Stapling capacity	1100 sheets
Stapler	Yes
Package weight	210.1 lbs (95.3 kg)
Package dimensions (WxDxH)	33.5 x 30.3 x 57.5" (851 x 769 x 1460 mm)
Hole punching	Yes
Country of origin	China
Packaging data
Package weight	210.1 lbs (95.3 kg)
Package dimensions (WxDxH)	33.5 x 30.3 x 57.5" (851 x 769 x 1460 mm)
