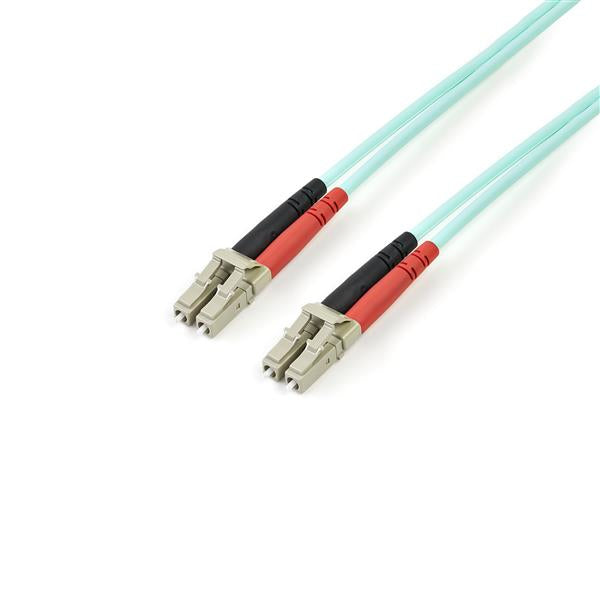

450FBLCLC3 - StarTech.com CONNECT 40GBASE-SR4, 100GBASE-SR10, SFP+ AND QSFP+ TRANSCEIVERS IN 40 AND 100 GI

This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in 40 and 100 Gigabit networks. The OM4 cable supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources and is backward compatible with your existing 50/125 equipment. This Aqua OM4 duplex multimode fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. It's ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration. Each OM4 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability. The 450FBLCLC3 from StarTech.com is backed by a lifetime warranty.



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable length	196.9" (5 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	REACH, RoHS
Doesn't contain	Halogen
Features
Fibre optic type	OM4
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable length	196.9" (5 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Data transfer rate	100 Gbit/s
Certification	CE
Wavelengths supported	850 nm
Harmonized System (HS) code	85447000
Product colour	Aqua color, Blue
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	100 Gbit/s
Certificates
Certification	CE
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Cable length	196.9" (5 m)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.748" (19 mm)
Weight	2.61 oz (74 g)
Package weight	2.96 oz (84 g)
Packaging data
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.748" (19 mm)
Package weight	2.96 oz (84 g)
