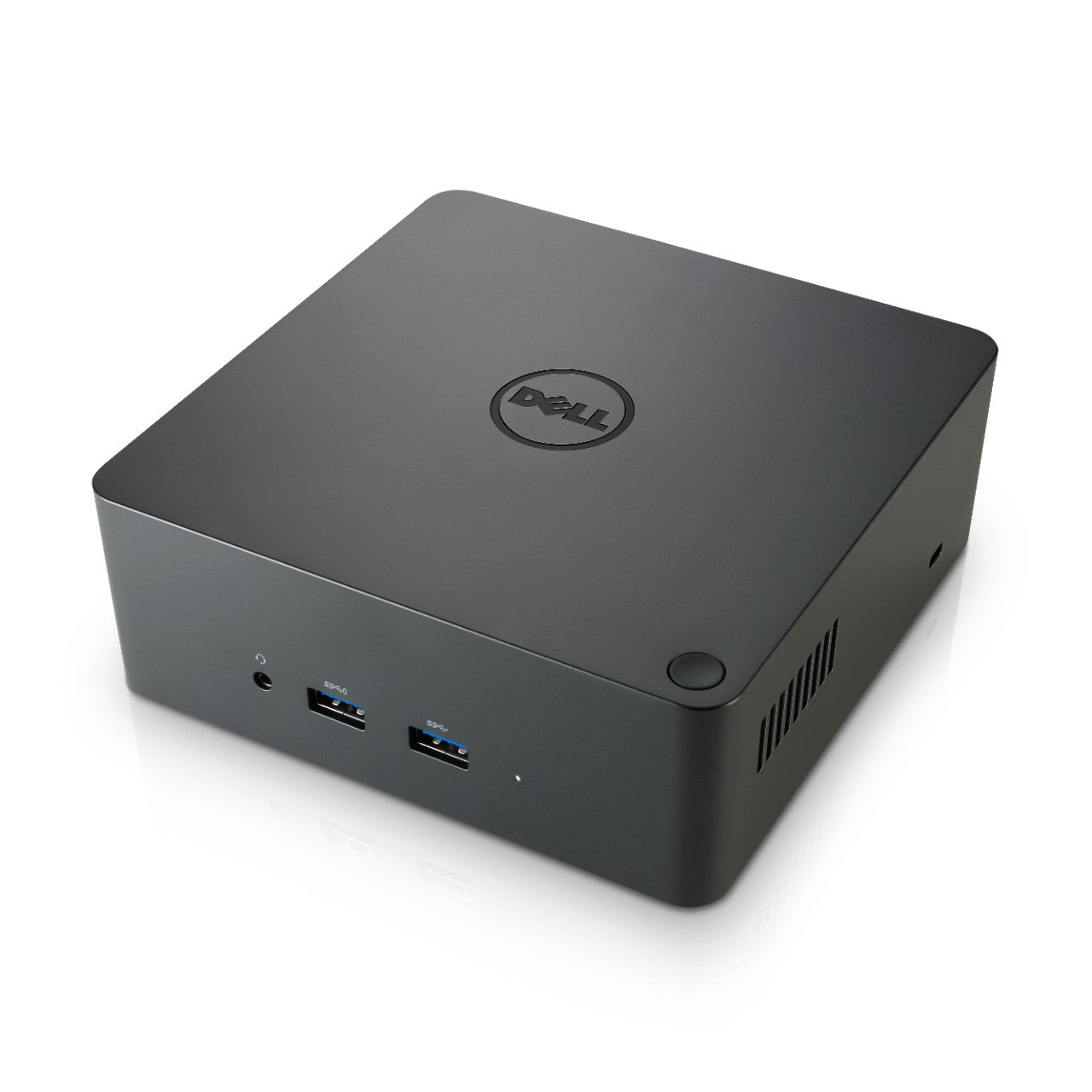

452-BCNP - DELL TB16 THUNDERBOLT 180W
452-BCNP - DELL TB16 THUNDERBOLT 180W
SKU:452-BCNP
Regular price
$295.00 USD
Regular price
Sale price
$295.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace. * While Dell has committed to ensuring the TB16 meets open standards, 3rd party OEMs can limit compatibility The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files. The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power. - Supports 3 displays - Two USB 2.0 ports - Three USB 3.0 ports - Thunderbolt 3 (USB-C) port - Speaker output (rear) - Combo audio (front) - Gigabit Ethernet - Kensington Lock Slot - 7.4 mm DC-IN Power Input
Specification:
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Thunderbolt 3 ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| Line-out | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Dell |
| Compatibility | XPS 13 (9350) XPS 15 (9550) XPS 12 (9250) Precision 15 7000 Series (7510) Precision 17 7000 Series (7710) Precision 15 3000 Series (3510) Precision 15 5000 Series (5510) XPS 13 (9360) XPS 9560 Precision 5520 Precision 3520 |
| LED indicators | Yes |
| Technical details | |
| Product colour | Black |
| Brand compatibility | Dell |
| Compatibility | XPS 13 (9350) XPS 15 (9550) XPS 12 (9250) Precision 15 7000 Series (7510) Precision 17 7000 Series (7710) Precision 15 3000 Series (3510) Precision 15 5000 Series (5510) XPS 13 (9360) XPS 9560 Precision 5520 Precision 3520 |
| Harmonized System (HS) code | 84733020 |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| Power consumption (max) | 240 W |
| AC input voltage | 120-230 V |
| AC input frequency | 50 - 60 Hz |
| Software | |
| Windows operating systems supported | Yes |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Weight | 25.4 oz (720 g) |
| Width | 5.71" (145 mm) |
| Depth | 5.71" (145 mm) |
| Height | 2.01" (51 mm) |
| Design | |
| Windows operating systems supported | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-C |
| AC adapter included | Yes |
