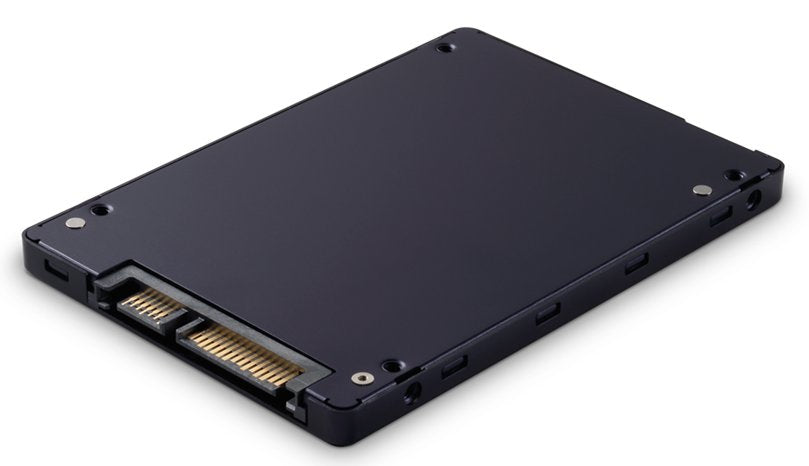

4XB0K12358 - Lenovo HDD_BO PM863A 240GB SATA 3.5 SSD

The Lenovo PM863a Enterprise Entry SATA solid-state drives (SSDs) in capacities of 240 GB, 480 GB, 960 GB, and 1.92 TB are next-generation general-purpose SSDs based on the Samsung PM863a platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. These SSDs are available both as 2.5-inch and 3.5-inch form factor drives.



Specification:



Hard drive
SSD capacity	480 GB
Data transmission
Read speed	520 MB/s
Write speed	480 MB/s
Random write (4KB)	16000 IOPS
Random read (4KB)	97000 IOPS
Write latency	30 µs
Read latency	130 µs
Data transfer rate	6 Gbit/s
Endurance
Mean time between failures (MTBF)	2000000 h
Performance
Interface	Serial ATA III
Component for	Server/workstation
Hot-swap	Yes
SSD capacity	480 GB
Read speed	520 MB/s
Write speed	480 MB/s
Random write (4KB)	16000 IOPS
Random read (4KB)	97000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	30 µs
Read latency	130 µs
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
Product colour	Black
SSD form factor	3.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
Hot-swap	Yes
SSD capacity	480 GB
Read speed	520 MB/s
Write speed	480 MB/s
Random write (4KB)	16000 IOPS
Random read (4KB)	97000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	30 µs
Read latency	130 µs
Data transfer rate	6 Gbit/s
SSD form factor	3.5"
Power
Power consumption (write)	3 W
Power consumption (read)	3 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	8 - 85%
Operating shock	1500 G
Operating vibration	2.17 G
Maximum operating altitude	120078.7" (3050 m)
Technical details
Interface	Serial ATA III
Hot-swap	Yes
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	8 - 85%
Operating shock	1500 G
Operating vibration	2.17 G
Maximum operating altitude	120078.7" (3050 m)
Product colour	Black
SSD form factor	3.5"
Other features
Product colour	Black
