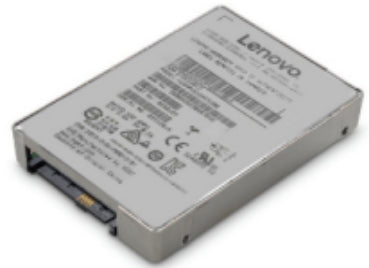

4XB0K12410 - Lenovo HDD_BO 800GB SAS HS 2.5 SSD

The New 12 Gb SAS Enterprise Performance solid-state drives (SSDs) use 3D MLC NAND flash memory technology with a 12 Gb SAS interface to provide a high-performance storage solution in either 2.5-inch or 3.5-inch drive form factor.

The 12 Gb SAS drives with 10 full drives writes per day (DWPD) are an excellent choice for applications demanding high write performance, such as High Performance Computing (HPC), High Definition Imaging and Video (HDIV), high data rate analytics and databases, large-scale virtualization, and video on demand content delivery.

Compared to the previous generation 12 Gb SAS SSDs, these new SSDs offer more than double the random IOPS performance and double the sequential throughput performance.



Specification:



Hard drive
SSD capacity	1600 GB
Data transmission
Read speed	1076 MB/s
Write speed	862 MB/s
Random write (4KB)	128000 IOPS
Random read (4KB)	240000 IOPS
Write latency	85 µs
Read latency	85 µs
Data transfer rate	12 Gbit/s
Endurance
Mean time between failures (MTBF)	2500000 h
Performance
Interface	SAS
Component for	Server/workstation
SSD capacity	1600 GB
Read speed	1076 MB/s
Write speed	862 MB/s
Random write (4KB)	128000 IOPS
Random read (4KB)	240000 IOPS
Mean time between failures (MTBF)	2500000 h
Write latency	85 µs
Read latency	85 µs
Data transfer rate	12 Gbit/s
Design
Component for	Server/workstation
Product colour	Gray
SSD form factor	2.5"
Features
Interface	SAS
Component for	Server/workstation
SSD capacity	1600 GB
Read speed	1076 MB/s
Write speed	862 MB/s
Random write (4KB)	128000 IOPS
Random read (4KB)	240000 IOPS
Mean time between failures (MTBF)	2500000 h
Write latency	85 µs
Read latency	85 µs
Data transfer rate	12 Gbit/s
SSD form factor	2.5"
Power
Power consumption (write)	9 W
Power consumption (read)	9 W
Operational conditions
Operating shock	1500 G
Operating vibration	2.17 G
Technical details
Interface	SAS
Operating shock	1500 G
Operating vibration	2.17 G
Product colour	Gray
SSD form factor	2.5"
Other features
Product colour	Gray
