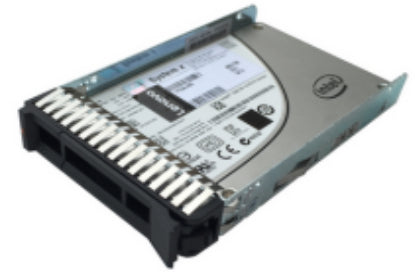

4XB0K12437 - Lenovo HDD_BO S3520 1.2TB SATA 2.5 HS SSD

The S3520 Enterprise Entry SATA solid-state drives (SSDs) for System x, ThinkServer and Flex System use Intel 3D NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution with industry leading performance.

This product guide provides essential presales information to understand the S3520 SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S3520 SSDs and consider their use in IT solutions.

The S3520 Enterprise Entry SATA solid-state drives (SSDs) for System x, ThinkServer and Flex System use Intel 3D NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution with industry leading performance. Compared with the Intel S3510 series, these new drives offer significantly improved endurance and lower power consumption. The S3520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.



Specification:



Hard drive
SSD capacity	1200 GB
Data transmission
Read speed	450 MB/s
Write speed	380 MB/s
Random write (4KB)	17500 IOPS
Random read (4KB)	67500 IOPS
Write latency	42 µs
Read latency	40 µs
Data transfer rate	6 Gbit/s
Endurance
Mean time between failures (MTBF)	2000000 h
Performance
Interface	Serial ATA III
Component for	Server/workstation
Hot-swap	Yes
SSD capacity	1200 GB
Read speed	450 MB/s
Write speed	380 MB/s
Random write (4KB)	17500 IOPS
Random read (4KB)	67500 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	42 µs
Read latency	40 µs
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
Product colour	Silver
SSD form factor	3.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
Hot-swap	Yes
SSD capacity	1200 GB
Read speed	450 MB/s
Write speed	380 MB/s
Random write (4KB)	17500 IOPS
Random read (4KB)	67500 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	42 µs
Read latency	40 µs
Data transfer rate	6 Gbit/s
SSD form factor	3.5"
Power
Power consumption (write)	3.5 W
Power consumption (read)	3.5 W
Technical details
Interface	Serial ATA III
Hot-swap	Yes
Product colour	Silver
SSD form factor	3.5"
Other features
Product colour	Silver
