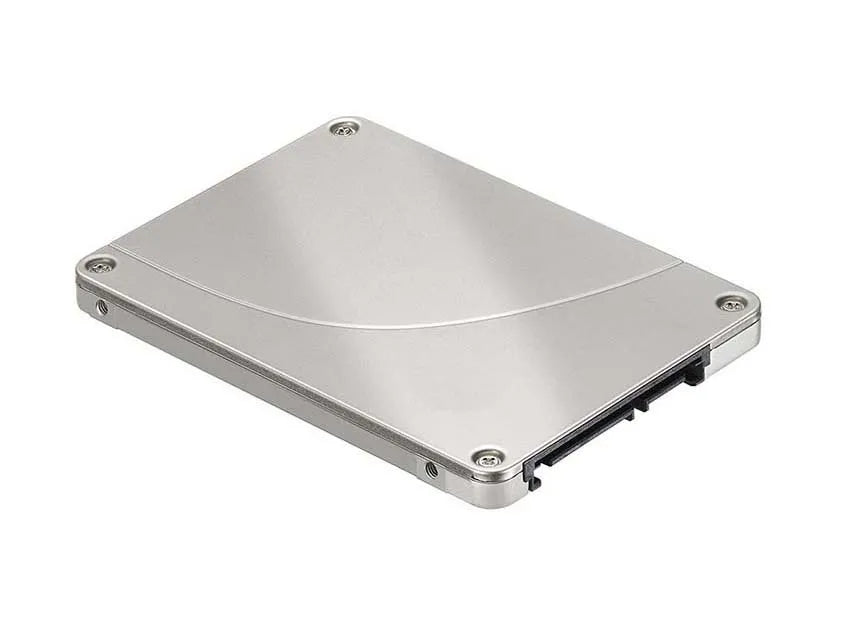

4XB7A13634 - Lenovo 2.5 S4610 480GB MS SATA SSD

The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor. This product guide provides essential presales information to understand the S4610 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4610 SSDs and consider their use in IT solutions. The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. Compared with the Intel S4600 series, these new drives offer improved performance and lower latency. The Intel SSD S4610 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases. The Intel S4610 Enterprise Mainstream SATA solid-state drive is shown in the following figure. By combining the Intel 3D NAND TLC Flash Memory technology and Intel€™s latest controller, the design of Intel S4610 Mainstream SATA SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for endurance and IOPS/watt. Rigorous testing of Intel S4610 Mainstream SATA SSDs by Lenovo through the ServerProven program ensures a high degree of storage subsystem compatibility and reliability. Providing additional peace of mind, these drives are covered under Lenovo warranty. The key difference between Performance SSDs such as the S3710 SSDs, Mainstream SSDs such as the S4610 SSDs, and Entry SSDs, such as the S4510 SSDs, is their endurance (life expectancy). SSDs have a huge, but finite, number of program/erase (P/E) cycles, which determines how long the drives can perform write operations and thus their life expectancy. Mainstream SSDs have better endurance than the Entry SSDs, but at a higher cost/IOPS ratio. SSD write endurance is typically measured by the number of program/erase cycles that the drive can incur over its lifetime, which is listed as TBW in the device specification. The TBW value that is assigned to a solid-state device is the total bytes of written data that a drive can be guaranteed to complete. Reaching this limit does not cause the drive to immediately fail; the TBW simply denotes the maximum number of writes that can be guaranteed. A solid-state device does not fail upon reaching the specified TBW, but at some point after surpassing the TBW value (and based on manufacturing variance margins), the drive reaches the end-of-life point, at which time the drive goes into read-only mode. Because of such behavior, careful planning must be done to use SSDs in the application environments to ensure that the TBW of the drive is not exceeded before the required life expectancy. For example, the S4610 960 GB drive has an endurance of 6.0 PB of total bytes written (TBW). This means that for full operation over five years, write workload must be limited to no more than 3,288 GB of writes per day, which is equivalent to 3.4 full drive writes per day (DWPD). For the device to last three years, the drive write workload must be limited to no more than 5,479 GB of writes per day, which is equivalent to 5.7 full drive writes per day.



Specification:



Hard drive
SSD capacity	960 GB
Memory type	3D TLC NAND
Data transmission
Read speed	560 MB/s
Write speed	510 MB/s
Random write (4KB)	51000 IOPS
Random read (4KB)	96000 IOPS
Write latency	37 µs
Read latency	36 µs
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Certificates
Certification	FCC, CA/CSA-CEI/IEC, EN 55024, EN 55022, EN-60950-1, UL/CSA, C-Tick, BSMI, KCC, WEEE
Performance
Interface	Serial ATA III
Component for	Server/workstation
NVMe	No
TBW rating	6000
End-to-End Data Protection	Yes
Hot-swap	Yes
SSD capacity	960 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	560 MB/s
Write speed	510 MB/s
Memory type	3D TLC NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	51000 IOPS
Random read (4KB)	96000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	37 µs
Read latency	36 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
Certification	FCC, CA/CSA-CEI/IEC, EN 55024, EN 55022, EN-60950-1, UL/CSA, C-Tick, BSMI, KCC, WEEE
SSD form factor	2.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
NVMe	No
TBW rating	6000
End-to-End Data Protection	Yes
Hot-swap	Yes
SSD capacity	960 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	560 MB/s
Write speed	510 MB/s
Memory type	3D TLC NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	51000 IOPS
Random read (4KB)	96000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	37 µs
Read latency	36 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Certification	FCC, CA/CSA-CEI/IEC, EN 55024, EN 55022, EN-60950-1, UL/CSA, C-Tick, BSMI, KCC, WEEE
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Power consumption (average)	2.7 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 95 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	120078.7" (3050 m)
Technical details
Interface	Serial ATA III
Hot-swap	Yes
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 95 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	120078.7" (3050 m)
Hardware encryption	Yes
SSD form factor	2.5"
Sustainability certificates	RoHS
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
