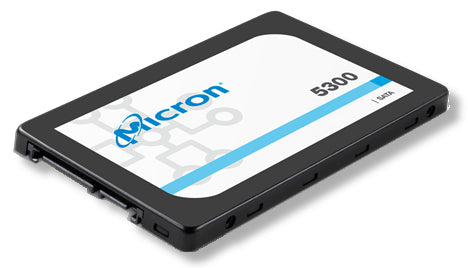

4XB7A17076 - Lenovo 2.5 5300 480GB EN SATA SSD

The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics. This product guide provides essential presales information to understand the 5300 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.



Specification:



Hard drive
SSD capacity	960 GB
Memory type	3D TLC NAND
Data transmission
Read speed	540 MB/s
Write speed	520 MB/s
Random write (4KB)	35 IOPS
Random read (4KB)	95 IOPS
Write latency	100 µs
Read latency	175 µs
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	3000000 h
Performance
Interface	Serial ATA III
Component for	Server/workstation
NVMe	No
Hot-swap	Yes
SSD capacity	960 GB
Security algorithms	256-bit AES
Read speed	540 MB/s
Write speed	520 MB/s
Memory type	3D TLC NAND
Random write (4KB)	35 IOPS
Random read (4KB)	95 IOPS
Mean time between failures (MTBF)	3000000 h
Write latency	100 µs
Read latency	175 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
SSD form factor	2.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
NVMe	No
Hot-swap	Yes
SSD capacity	960 GB
Security algorithms	256-bit AES
Read speed	540 MB/s
Write speed	520 MB/s
Memory type	3D TLC NAND
Random write (4KB)	35 IOPS
Random read (4KB)	95 IOPS
Mean time between failures (MTBF)	3000000 h
Write latency	100 µs
Read latency	175 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Power consumption (write)	3.4 W
Power consumption (read)	2.8 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Vibration resistance	3.13 G
Technical details
Interface	Serial ATA III
Hot-swap	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Hardware encryption	Yes
SSD form factor	2.5"
Sustainability certificates	RoHS
