50FIBLCSC2 - StarTech.com CONNECT FIBER NETWORK DEVICES FOR HIGH-SPEED TRANSFERS WITH LSZH RATED CABLE - L

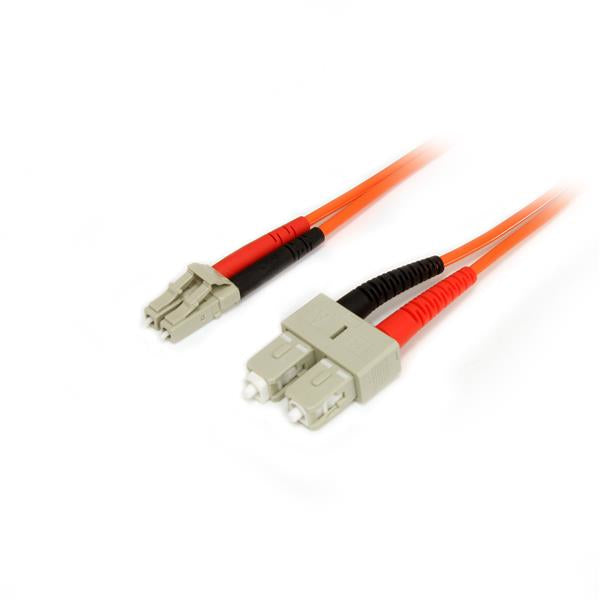

The 50FIBLCSC2 2m LSZH LC to SC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications. This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration. Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty. The StarTech.com Advantage - LSZH-rated cable, suitable for installations under restrictive building codes - High-speed, high bandwidth transmissions over Gigabit Ethernet/fiber channel networks - Resistant to pulls, strains, and impacts during your cable installations and maintenance



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	SC
Cable length	118.1" (3 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	REACH, RoHS
Doesn't contain	Halogen
Features
Fibre optic type	OM2
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	SC
Cable length	118.1" (3 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Data transfer rate	10 Gbit/s
Certification	CE
Harmonized System (HS) code	85447000
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	10 Gbit/s
Certificates
Certification	CE
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Cable length	118.1" (3 m)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	1.06" (27 mm)
Weight	1.62 oz (46 g)
Package weight	1.94 oz (55 g)
Packaging data
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	1.06" (27 mm)
Package weight	1.94 oz (55 g)
