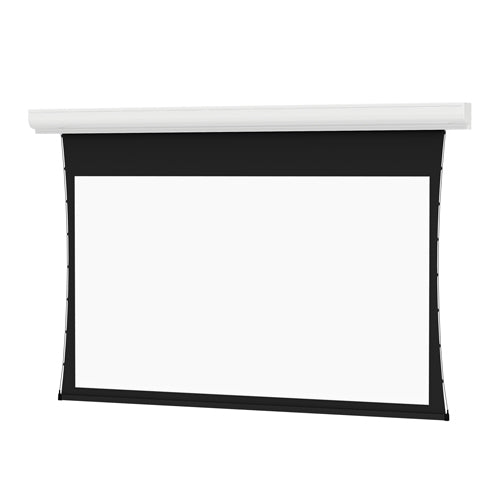

70175LS - Da-Lite CONTOUR TNSD 137D HDC1.1

The Tensioned Contour® Electrol® is the latest ceiling or wall-mounted electric screen offering simple installation. A variety of finishes make this a seamless addition to any room. Tensioned screens ensure the smoothest surface possible.

- All sizes standard with 12” of black drop except for Parallax which is standard with 2”
- Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10’x10’)
- Standard Low Voltage Control (LVC) to keep your screen operation flexible
- Smooth Roll Technology to keep your screen perfectly flat
- Slim-Tab, a lower profile, stronger tab design to keep your screen perfectly taut
- Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
- Support includes a comprehensive five-year warranty to keep you confident in your purchase
- Tensioning Cable System to prevent warping and ensure even lateral tension
- Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
- Decora-style, three-button wall switch
- Standard black backing retains projected brightness on front projection surfaces
- Seamless surfaces
- Standard white powder-coated aluminum finish; available in black upon request



Specification:



Performance
Native aspect ratio	16:10
Screen surface	HD Progressive 1.1 Contrast
Viewable screen height (H)	72.4" (184 cm)
Viewable screen width (W)	116.1" (2.95 m)
Overall screen size (Height x Width)	72.4 x 116.1" (184 x 295 cm)
Diagonal (metric)	137" (348 cm)
Diagonal	137"
Remotely operated	Yes
Format	Wide
Drive type	Motorized
Tensioned screen	Yes
Design
Product colour	Black,White
Black backing	Yes
Mounting type	Ceiling/Wall
Technical details
Screen surface	HD Progressive 1.1 Contrast
Viewable screen height (H)	72.4" (184 cm)
Viewable screen width (W)	116.1" (2.95 m)
Overall screen size (Height x Width)	72.4 x 116.1" (184 x 295 cm)
Diagonal (metric)	137" (348 cm)
Diagonal	137"
Remotely operated	Yes
Format	Wide
Drive type	Motorized
Tensioned screen	Yes
Black backing	Yes
Colour
Product colour	Black,White
Projector
Diagonal	137"
