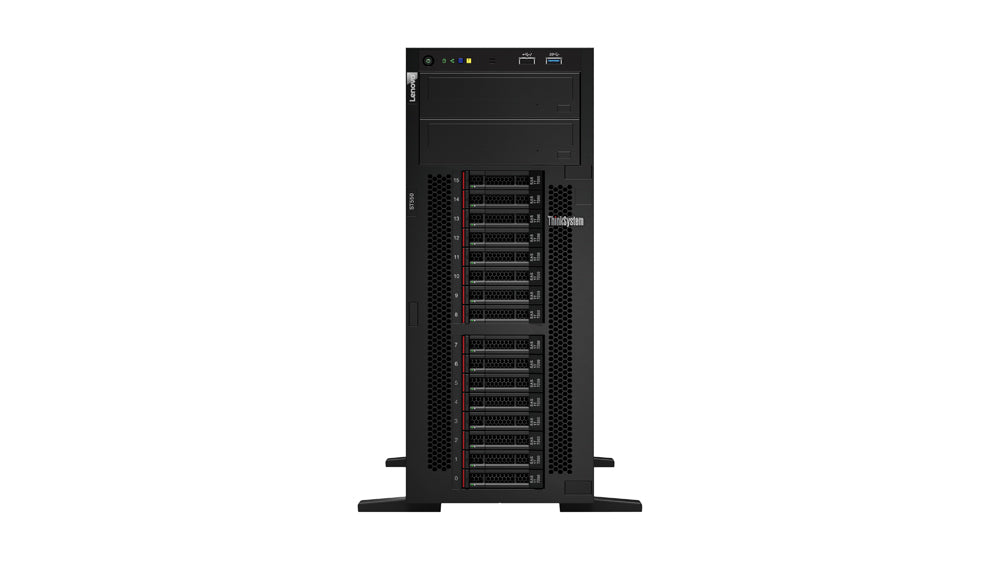

7X10A0AXNA - Lenovo THINKSYSTEM ST550 5218 32GB

The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. It is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices. This product guide provides essential presales information to understand the ThinkSystem ST550 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST550 and consider its use in IT solutions.



Specification:



Processor
Processor generation	2nd Generation Intel® Xeon® Scalable
Execute Disable Bit	Yes
Embedded options available	Yes
Processor cache	13.75 MB
Processor frequency	2.2 GHz
Number of processors installed	1
Processor model	4210
Processor boost frequency	3.2 GHz
Processor manufacturer	Intel
Motherboard chipset	Intel® C624
Processor family	Intel Xeon Silver
Memory
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Memory slots	12x DIMM
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
Supported RAID controllers	930-8i 2GB
RAID support	Yes
RAID levels	0,1,5,6,10,50,60
Graphics
On-board graphics adapter model	Matrox G200
Maximum graphics adapter memory	16 MB
On-board graphics adapter	Yes
Network
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	5
Design
Redundant fans support	Yes
Chassis type	Tower (4U)
Product colour	Black
Performance
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Performance management	XClarity Enterprise
Trusted Platform Module (TPM) version	1.2
Trusted Platform Module (TPM)	Yes
Software
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Power
Number of redundant power supplies installed	1
Redundant power supply (RPS) support	Yes
Power supply	750 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Trusted Platform Module (TPM) version	1.2
Trusted Platform Module (TPM)	Yes
Redundant fans support	Yes
Chassis type	Tower (4U)
Management features
Performance management	XClarity Enterprise
Weight & dimensions
Width	6.93" (176 mm)
Weight	79.4 lbs (36 kg)
Height	17.2" (438 mm)
Depth	26" (660 mm)
