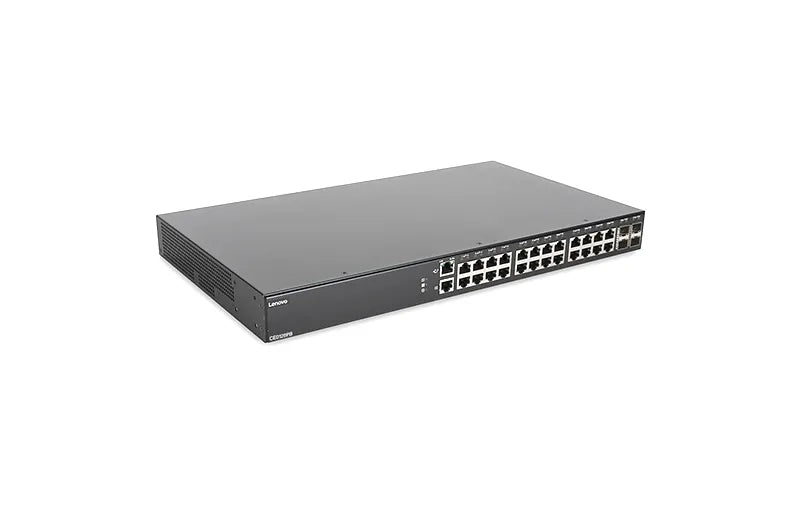

7Z360012WW - Lenovo LENOVO CE0128PB GIGABIT ETHERNE

Abstract The Lenovo CE0128PB Switch is a 1/10 Gb Ethernet (GbE) switch with Power over Ethernet (PoE) that delivers a compact, high-density, cost-effective GbE solution for network environments where space and power are at a premium. Featuring a small, 1U footprint, this switch is designed for access-layer deployments in branches, retail and workgroup environments, and campus networks. It can also be used as a management network switch in the data center infrastructures. This product guide provides essential pre-sales information on the CE0128PB switch, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the CE0128PB switch and consider its use in IT solutions. Introduction The Lenovo CE0128PB Switch is a 1/10 Gb Ethernet (GbE) switch with Power over Ethernet (PoE) that delivers a compact, high-density, cost-effective GbE solution for network environments where space and power are at a premium. Featuring a small, 1U footprint, this switch is designed for access-layer deployments in branches, retail and workgroup environments, and campus networks. It can also be used as a management network switch in the data center infrastructures. The CE0128PB switch offers 24x 10/100/1000BASE-T (RJ-45) fixed ports with Power over Ethernet (PoE) for powering attached network devices, such as such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones. The switch also offers 4x SFP+ ports that support 1 GbE and 10 GbE optical transceivers, 10 GbE active optical cables (AOCs), and 10 GbE direct attach copper (DAC) cables. The switch supports a wide range of L2 and L3 features that provide performance, availability, security, and manageability for campus networks. The Lenovo CE0128PB Switch is shown in the following figure. Did you know? The CE0128PB switch can simultaneously deliver up to 15.4 watts of standards-based 802.3af Class 3 PoE to a maximum of 12 ports or 30 watts of standards-based 802.3at PoE+ to a maximum of 6 ports. The CE0128PB switch supports the LLDP-Media Endpoint Discovery (LLDP-MED) protocol, enabling the switches to automatically discover Ethernet-enabled devices, determine their power requirements, and assign virtual LAN (VLAN) membership. The CE0128PB switch supports stacking, enabling up to eight interconnected switch devices to be managed as a single logical device. The CE0128PB switch supports AutoInstall, which enables a switch to automatically configure itself using the resources available on the network, without manual intervention.



Specification:



Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	60 W
Supported instruction sets	AVX 2.0
Stepping	M1
Scalability	1S
Processor threads	8
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Processor code	SR3ZW
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Maximum number of PCI Express lanes	32
Maximum internal memory supported by processor	512 GB
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	Yes
Bus type	UPI
Processor cache	8 MB
Conflict-Free processor	Yes
Processor frequency	2.2 GHz
Number of processors installed	1
Processor model	D-2123IT
Processor boost frequency	3 GHz
Processor socket	FCBGA2518
Processor cores	4
Processor manufacturer	Intel
Processor family	Intel Xeon D
Memory
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Memory slots	4
Memory clock speed	2666 MHz
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
Number of SSDs supported	4
Total storage capacity	480 GB
SSD interface	M.2
RAID support	Yes
RAID levels	0, 1, 5, 10
Optical drive type	No
Number of SSDs installed	1
Maximum storage capacity	15.68 TB
Network
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	2
Serial ports quantity	1
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Rack (1U)
Product colour	Black
Performance
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. Ubuntu Server certification.
Performance management	XClarity Enterprise
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Software
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. Ubuntu Server certification.
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Secure Key	Yes
Intel Hyper Threading Technology (Intel HT Technology)	Yes
Intel Enhanced Halt State	Yes
Intel AES New Instructions (Intel AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel QuickAssist Technology	No
Processor ARK ID	136429
CPU configuration (max)	1
Power
Number of redundant power supplies installed	1
Redundant power supply (RPS) support	Yes
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
CPU configuration (max)	1
Chassis type	Rack (1U)
Management features
Performance management	XClarity Enterprise
Weight & dimensions
Width	8.23" (209 mm)
Weight	8.27 lbs (3.75 kg)
Height	1.69" (43 mm)
Depth	14.8" (376 mm)
Other features
CPU configuration (max)	1
