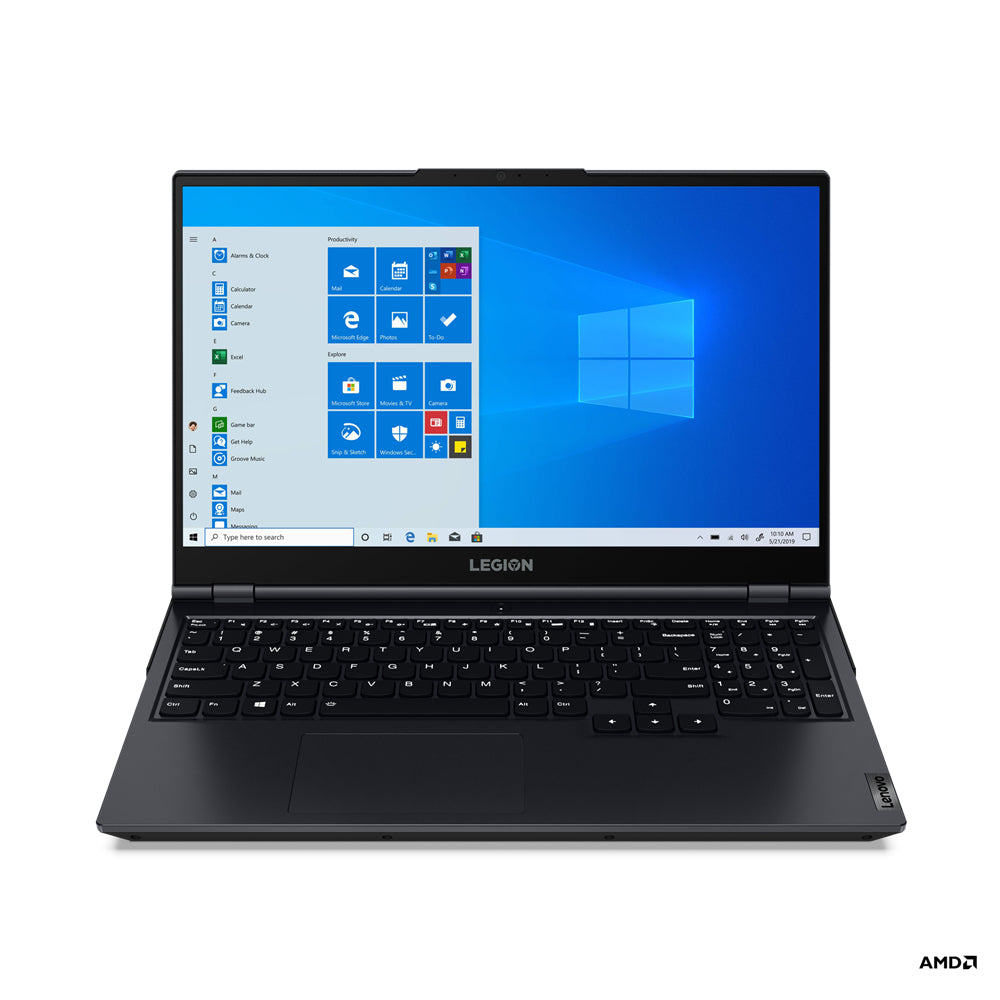

82JU00MUUS - Lenovo LN LEGION 5 15-ACH6H R7 16G 1TB

Battle-ready performance Compete with the Legion 5 Gen 6 (15" AMD). It’s armed with everything you need to dominate any lobby, including up to AMD Ryzen™ 7 5800H mobile processors and NVIDIA® GeForce RTX™ 30 series graphics. Enjoy crisp visuals on up to 15" WQHD display, featuring amazing colour accuracy and Dolby Vision™, while Nahimic 3D audio and the Legion Truestrike keyboard help you strike with pinpoint precision.



Specification:



Design
Colour name	Phantom Blue (Top), Shadow Black (Bottom)
Product type	Notebook
Market positioning	Gaming
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black, Blue
Display
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Display brightness	250 cd/m²
Contrast ratio (typical)	800:1
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	15.6"
Anti-glare screen	Yes
Maximum refresh rate	120 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:9
Processor
Processor cache	16 MB
Processor frequency	3.3 GHz
Processor model	5600H
Processor boost frequency	4.2 GHz
Processor cores	6
Processor manufacturer	AMD
Processor family	AMD Ryzenâ„¢ 5
Memory
Memory form factor	SO-DIMM
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	NVMe, PCI Express 3.0
Card reader integrated	No
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	6 GB
On-board graphics card	Yes
On-board graphics card model	AMD Radeon Graphics
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics memory type	GDDR6
Audio
Audio chip	Realtek ALC3306
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery	Yes
Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard backlit	Yes
Keyboard language	US English
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Home
Technical details
Market positioning	Gaming
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black, Blue
Discrete graphics card memory	6 GB
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	7 h
Battery capacity (Watt-hours)	60 Wh
Fast charging	Yes
Fast charging time (50%)	30 min
Power
AC adapter power	300 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Certificates
Certification	ErP Lot 3 RoHS compliant
Weight & dimensions
Width	14.3" (362.6 mm)
Depth	10.3" (260.6 mm)
Height (front)	0.886" (2.25 cm)
Height (rear)	1.02" (2.58 cm)
Weight	5.29 lbs (2.4 kg)
Other features
On-board graphics card	Yes
Maximum shipping altitude	120000" (3048 m)
Anti-glare screen	Yes
