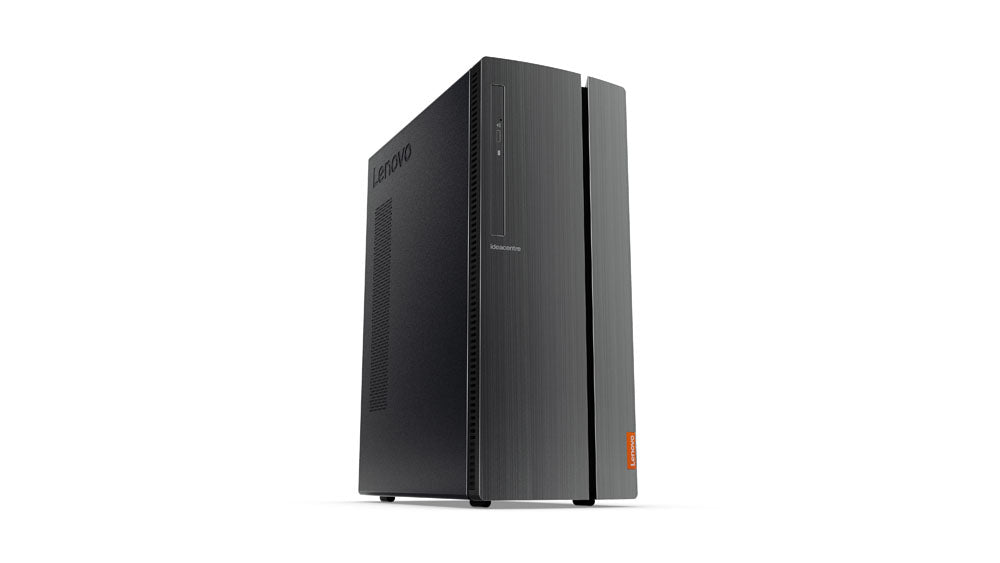

90HV000NUS - Lenovo IDEACENTRE 510A, CORE I3-8100 / 4 / 1TB

Contemporary and Affordable Style for Your Family. The IdeaCentre 510A will make things easy for you. This compact desktop PC was designed to go easy on your wallet and your lifestyle. Offering you performance powerful enough to make your most difficult tasks painless, a contemporary form factor that’s easy on the eyes, and the connectivity needed to effortlessly share the content you and your family will enjoy creating on it. Try to Challenge It — We Dare You The new standard for PC performance has arrived with up to 7th Generation Intel® Core™ processors. Offering a gamut of performance increases, this chip family represents the latest version of Intel® processors—meaning you will enjoy the latest performance for work or play. This processor can easily handle whatever task you throw at it. Form Meets Function Compact and contemporary, the IdeaCentre 510A also features a brushed closure that makes it a great complement to your contemporary home. Enjoy its high performance and simple design at the same time, in this elegant addition to your home. No Need to Sacrifice Looks for Functionality The IdeaCentre 510A features multiple ways to connect your monitor, keyboard, external hard drive, camera and favorite speakers—but there’s no need to fret about unsightly ports. Its abundant front ports are housed behind a magnetic door, so this machine keeps you plugged in while maintaining its classy style. Connects to Almost Any Device or Accessory — Alone or All at Once Your monitor, keyboard, external hard drive, camera and favorite speakers don’t need to vie for available ports on the IdeaCentre 510A. This machine offers multiple ways to connect, including 6 x USB 3.0**, 2 x USB 2.0, 1 x VGA, 1 x HDMI and 1 x LAN with optional wireless support. Easily upload, transfer, display and play your media. Cloud Content Makes It Easy to Connect With Your Family Accessible via an easy-to-use app, Lenovo Family Cloud gives your family wireless access to secure data storage on your IdeaCentre 510A — from other devices. Effortlessly upload to your PC via the Lenovo Family Cloud software or access any file on your PC when connecting to the same network. With Lenovo Family Cloud, everything on your home PC is at your fingertips.



Specification:



Processor
Processor generation	8th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	65 W
PCI Express configurations	1x16,1x8+2x4,2x8
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	No
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	9 MB
Processor frequency	2.8 GHz
Processor model	i5-8400
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	6
Processor cores	6
PCI Express slots version	3.0
Processor family	Intel Core i5
Memory
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	DVD±RW
SSD capacity	128 GB
Number of SSDs installed	1
Total storage capacity	128 GB
Total SSDs capacity	128 GB
Graphics
On-board graphics adapter dynamic frequency (max)	1050 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
Number of execution units	23
On-board graphics adapter ID	0x3E92
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 630
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	4.0
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	1x1
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	PC
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	Tower
Audio system	High Definition Audio
Placement supported	Vertical
Motherboard chipset	Intel® B250
Sustainability certificates	RoHS, ENERGY STAR
Design
Volume	15 L
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Performance
Embedded options available	No
Audio chip	Realtek ALC662
Password protection	Yes
Product type	PC
Audio system	High Definition Audio
Motherboard chipset	Intel® B250
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Home
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	126687
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Sustainability
Sustainability certificates	RoHS, ENERGY STAR
Weight & dimensions
Volume	15 L
Width	5.71" (145 mm)
Depth	11.2" (285.2 mm)
Height	14.4" (366 mm)
Weight	12.8 lbs (5.8 kg)
Packaging content
Manual	Yes
Other features
On-board graphics adapter	Yes
Optical drives quantity	1
Processor manufacturer	Intel
