Description

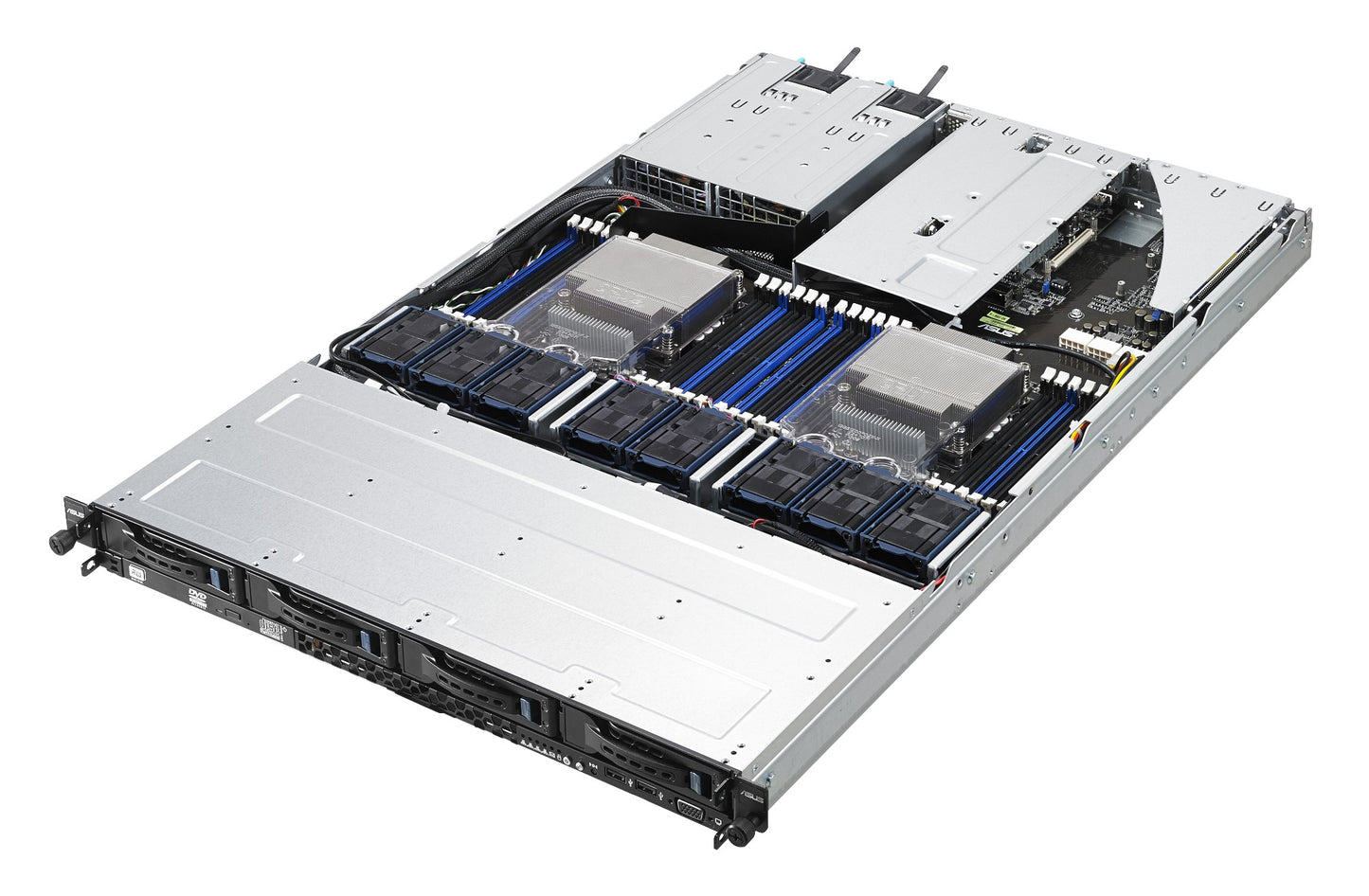

Optimized for rack-mounting RS700-E8-RS8’s internal layout is optimized for rack-mounted configurations, with both the CPU and memory placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for increased efficiency— and that makes it perfect for datacenters. 2+2 expansion slots RS700-E8-RS8 has high expandability with one Full-high PCI Express 3.0 x16 slot (x16 link) and one Low-profile PCI Express 3.0 x8 slot (x8 link), plus one proprietary PCI Express 3.0 x8 (x8 link) for the optional ASUS PIKE II card and one PCI Express 3.0 x8 (x8 link) for mezzanine cards, such as the OCP 10Gbit/s LAN card. This flexible expansion offers diverse applications in storage and networking to meeting the demands of future expansion and high scalability in a 1U case. Premium components for premium efficiency RS700-E8-RS8 benefits from premium components hand-chosen and carefully arranged by ASUS engineers to provide premium efficiency. With ASUS Beat Thermal Chokes, Dr. MOS and 1+1 80 PLUS 800W Platinum power supplies, it delivers great durability and up to 94% power efficiency. The 1+1 power supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation. RS700-E8-RS8 has durable 12k solid capacitors that are able to withstand up to 12,000 hours of high ambient temperatures. These 12K capacitors also boast lower equivalent series resistance (ESR) for increased efficiency and minimal heat generation. Instant Deployment RS700-E8-RS8 benefits from an exclusive tool-less rail kit design, easing deployment for systems administrators for increased efficiency. RS700-E8-RS8 includes a front-side VGA port, so you’re able to connect a display quickly and easily. RS700-E8-RS8 also offers great freedom when it comes to the choice of operating system drive type and placement, with M.2 slot available. Complete Remote Server Management With the Intelligent Platform Management Interface (IPMI) 2.0-compliant ASMB8-iKVM module in RS700-E8-RS8, you’ll be able to monitor, control and manage the server remotely. ASUS Server Web-based Management (ASWM) Enterprise has a simple and intuitive web-based graphical user interface. Save time and effort by flashing the BIOS remotely, use the new screen-recording function for quick and easy trouble-shooting and exploit the many efficiency benefits of one-to-many centralized management afforded by ASWM Enterprise.
Specification:
| Hard drive | |
|---|---|
| RAID levels | 0,1,5,10 |
| Hot-swap HDD bays | Yes |
| Optical drive | |
| Optical drive type | DVD-RW |
| Software | |
| Compatible operating systems | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS VMware |
| Processor | |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Motherboard chipset | Intel® C236 |
| Intel Xeon series | E3-1200 |
| Compatible processor series | Intel® Xeon® |
| Processor manufacturer | Intel |
| Design | |
| 80 PLUS certification | 80 PLUS Bronze |
| LED indicators | HDD, LAN, Power |
| Chassis type | Tower |
| Memory | |
| Supported UDIMM clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 4GB, 8GB, 16GB |
| Number of DIMM slots | 4 |
| Non-ECC | Yes |
| Maximum UDIMM memory | 64 GB |
| Maximum internal memory | 64 GB |
| Storage | |
| Number of storage drives supported | 4 |
| Supported storage drive interfaces | M.2, Serial ATA III |
| RAID levels | 0,1,5,10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 3.5" |
| Performance | |
| Optical drive type | DVD-RW |
| Compatible operating systems | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS VMware |
| Graphics | |
| On-board graphics adapter model | Aspeed AST2400 |
| On-board graphics adapter memory | 32 MB |
| Network | |
| LAN controller | Intel® I210-AT |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Number of SATA III connectors | 8 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
| PCI slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Optical drive type | DVD-RW |
| Compatible operating systems | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS VMware |
| Technical details | |
| Number of storage drives supported | 4 |
| Chassis type | Tower |
| Indication | |
| LED indicators | HDD, LAN, Power |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Number of main power supplies | 1 |
| Power supply | 500 W |
| 80 PLUS certification | 80 PLUS Bronze |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 17.9" (455 mm) |
| Weight | 33.1 lbs (15 kg) |
| Height | 21.5" (545 mm) |
| Depth | 8.56" (217.5 mm) |
