952-000088 - Logitech TAP IP - WHITE

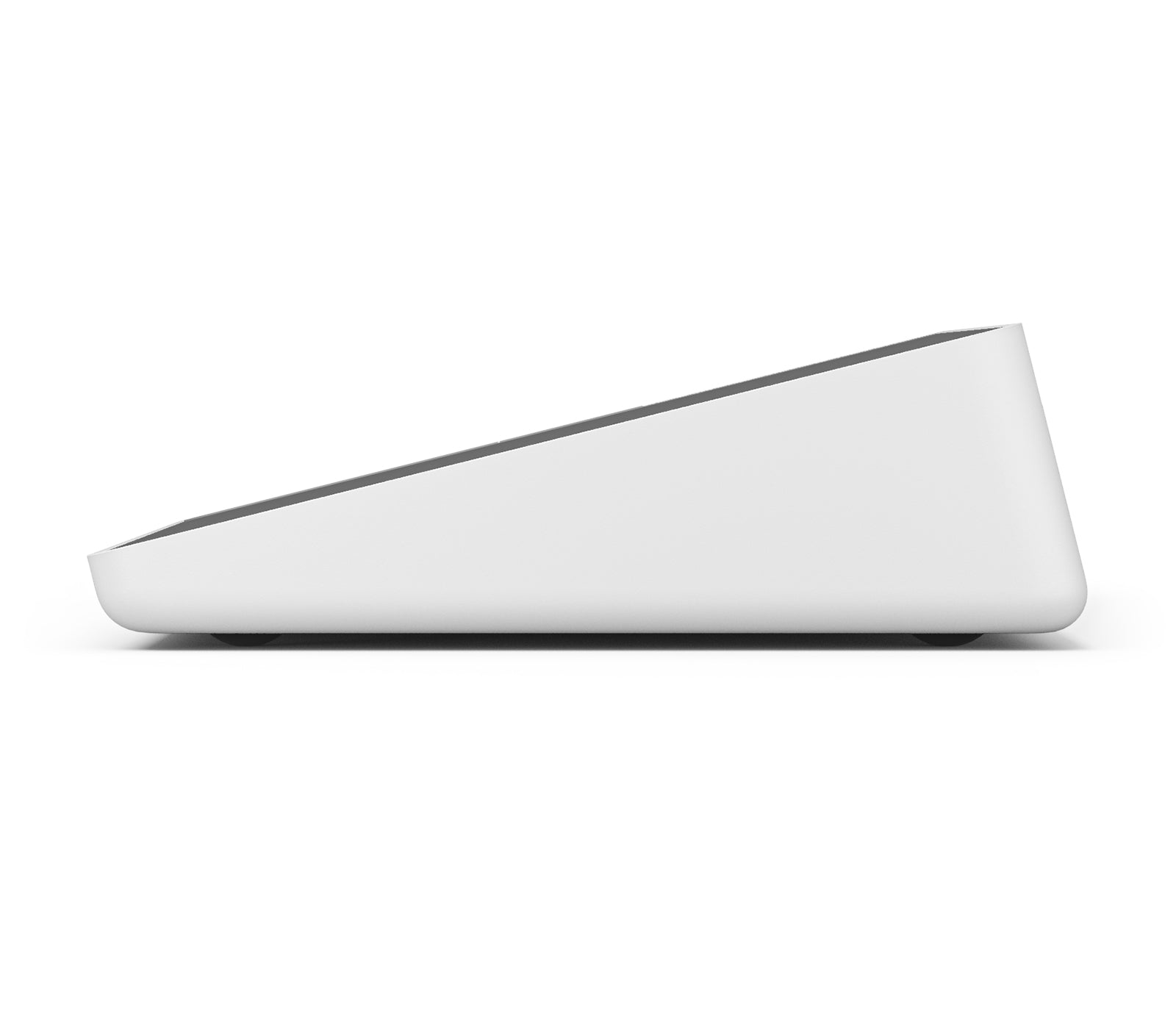

Logitech TAP IP Make video meetings simple to join with a network-connected touch controller. DEPLOY ROOM SOLUTIONS WITH EASE Transform collaboration spaces with Logitech Tap IP and leading video conferencing room solutions. Deliver one-touch join, easy content-sharing, and a seamless meeting experience across all rooms. CLEAN AND CONVENIENT SETUP Just the Right Presence With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room. Simple and Secure Cabling Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms. Multiple Mounting Options Install Tap IP almost anywhere in the room with Table and Riser Mounts that fit standard table grommets and rotate 180° for visibility and convenience. Or save table space in small rooms with the Wall Mount. SINGLE CABLE SIMPLICITY With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install. PAIRS WELL WITH PARTNERS Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience. SIMPLE TO MANAGE WITH LOGITECH SYNC With Logitech Sync, you can monitor and manage Tap IP along with your other meeting room devices from one single platform. AN ALL-IN-ONE SERVICE PLAN Logitech Select is a comprehensive service plan that delivers reliability, continuity, and peace of mind for each room you designate. Select provides 24/7 support, a dedicated Customer Success Manager, accelerated RMA, onsite spares, and advanced Sync analytics including customizable alerts through ServiceNow integration. UP TO FIVE YEAR WARRANTY Purchasing an extended warranty offers security and peace of mind that comes with knowing your Logitech video collaboration room systems and devices are protected against defects for up to five years from the purchase date. Extended warranties are available for either one year or three years beyond the original Logitech manufacturer’s two-year warranty.



Specification:



Display
Display diagonal	10.1"
Display technology	IPS
Display resolution	1280 x 800 pixels
LED backlight	Yes
Viewing angle	85°
Touchscreen	Yes
Touchscreen technology	Capacitive
LED backlighting type	LED
Display brightness	400 cd/m²
Number of simultaneous touchpoints	10
Design
Housing colour	Graphite
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Accelerometer	Yes
Ambient light sensor	Yes
Oleophobic coating	Yes
LED indicators	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Audio
Built-in speaker(s)	No
Built-in microphone	No
Camera
Built-in camera	No
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Security algorithms	128-bit AES
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.3af
Power
Power source type	AC, PoE
Weight & dimensions
Width	9.69" (246.2 mm)
Depth	1.12" (28.5 mm)
Height	6.5" (165 mm)
Weight	24.7 oz (700 g)
Packaging data
Package width	9.72" (247 mm)
Package depth	13.6" (346 mm)
Package height	3.66" (93 mm)
Package weight	4.78 lbs (2.17 kg)
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Mounting bracket(s) included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Technical details
Master (outer) case width	10.2" (260 mm)
Master (outer) case length	14.1" (358 mm)
Master (outer) case height	7.83" (199 mm)
Master (outer) case gross weight	10.3 lbs (4.66 kg)
Features
Built-in speaker(s)	No
Logistics data
Master (outer) case width	10.2" (260 mm)
Master (outer) case length	14.1" (358 mm)
Master (outer) case height	7.83" (199 mm)
Master (outer) case gross weight	10.3 lbs (4.66 kg)
