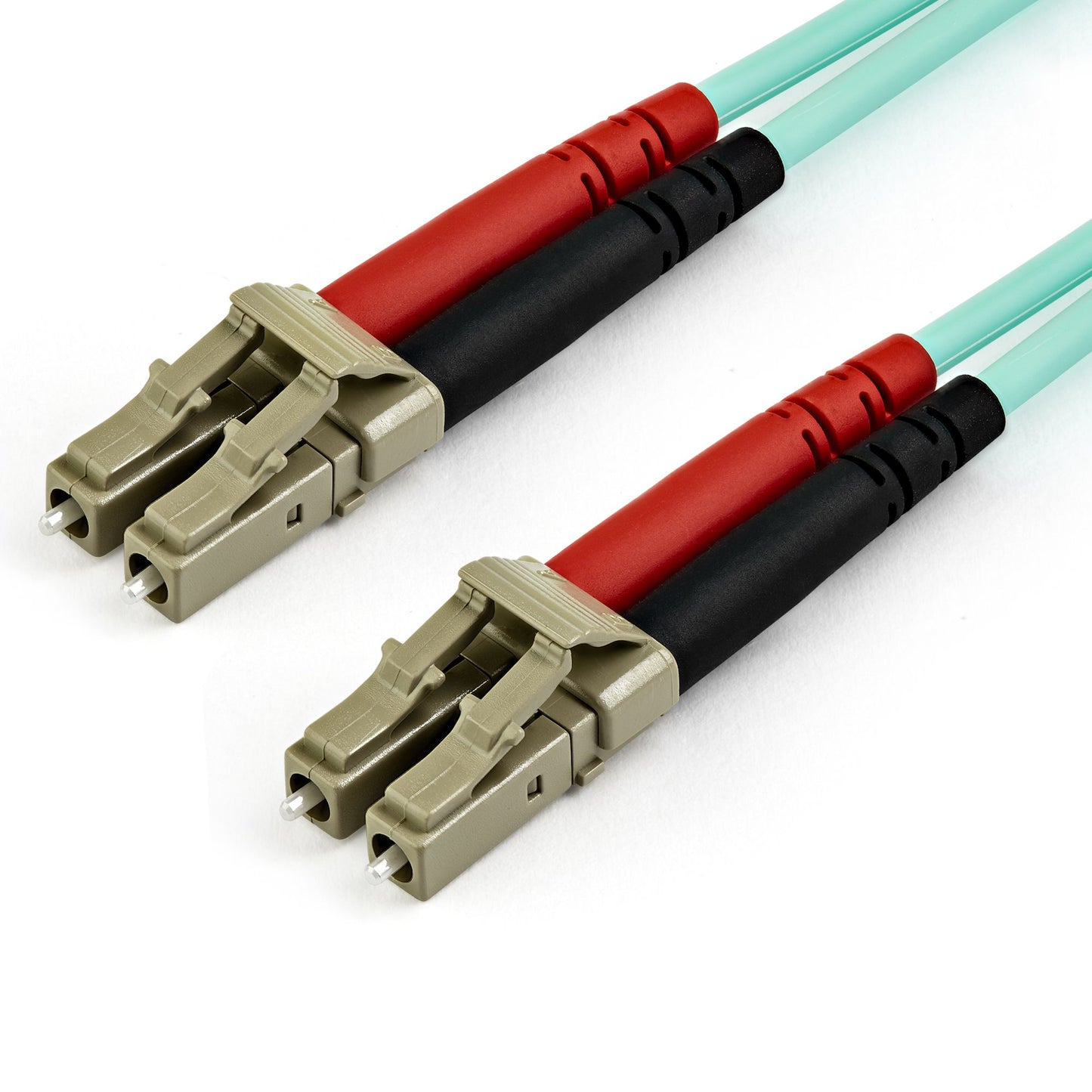

A50FBLCLC7 - StarTech.com OM3 LC TO LC MULTIMODE DUPLEX FIBER OPTIC PATCH CABLE HAS 50/125 MICRON FIBER AN

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.Built for PerformanceWith laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.Reliable ConnectionEach OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.High-Quality ConstructionHoused in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	SC
Cable length	39.4" (1 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Doesn't contain	Halogen
Features
Fibre optic type	OM3
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	SC
Cable length	39.4" (1 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Data transfer rate	10 Gbit/s
Wavelengths supported	850 nm
Harmonized System (HS) code	85447000
Product colour	Turquoise
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	10 Gbit/s
Weight & dimensions
Cable length	39.4" (1 m)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	1.02" (26 mm)
Cable diameter	0.118" (3 mm)
Package weight	1.23 oz (35 g)
Packaging data
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	1.02" (26 mm)
Package weight	1.23 oz (35 g)
Logistics data
Master (outer) case width	13.9" (352 mm)
Master (outer) case length	18.8" (478 mm)
Master (outer) case height	12.4" (314 mm)
Products per master (outer) case	320 pc(s)
