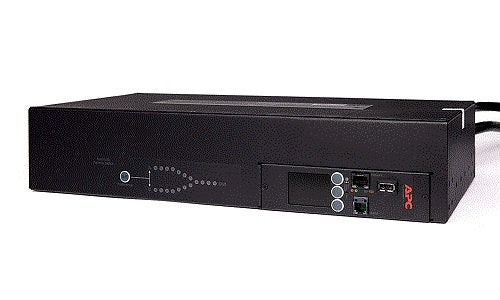

AP4431 - APC RACK ATS, 208V, 30A, (2) L6-30P IN, (1) L6-30R OUT

Provides redundant rack mount power to single-corded equipment. 10 kAIC Overcurrent Protection Provides protection in the event of a significant overcurrent event. Command line interface Offers simultaneous remote management access through Telnet and SSH. Current Monitoring Monitors the aggregate current draw per power distribution unit. Cyber security A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs. Local Current Monitoring Display The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only) Quick Transfer Rate Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance. Remote Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. RoHS Certifies that electronic devices don't contain hazardous metals and flame retardants. StruxureWare Data Center Expert compatible Enables centralized management via StruxureWare Data Center Expert.



Specification:



Design
PDU types	Switched
Mounting	Horizontal
Product colour	Black
Rack capacity	2U
Ports & interfaces
AC outlets quantity	18 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Output connections	(2) IEC 320 C19 (Battery Backup) (16) IEC 320 C13 (Battery Backup)
Input connection type	NEMA L6-30P
Power
Nominal input voltage	208 V
Nominal output voltage	208 V
Power protection features	Overload
Maximum current	30 A
Maximum total current draw per phase	30 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	3.46 x 9.29 x 17" (88 x 236 x 432 mm)
Weight	14.5 lbs (6.58 kg)
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Sustainability certificates	RoHS
