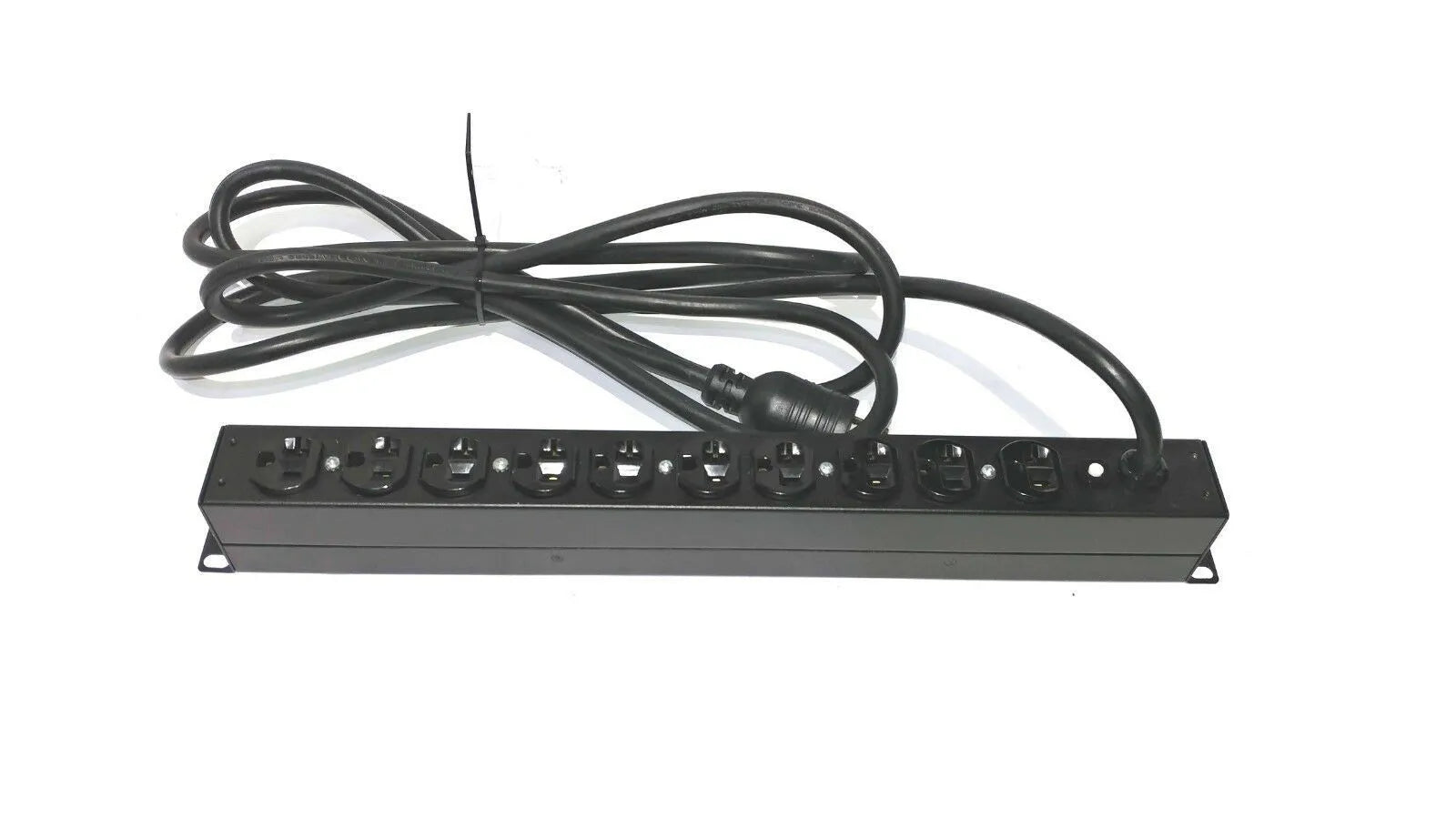

AP9564 - APC BASIC RACK-MOUNT PDU - POWER DISTRIBUTION STRIP ( RACK-MOUNTABLE ) - 2.4 KW

APC Basic Rack 2.4kVA. Product color: Black. Input connection type: NEMA L5-20P, Output connections: (10) NEMA 5-20R. Cable length: 144.1" (3.66 m), Certification: cUL,CSA,UL 1363,UL. Nominal input voltage: 120 V, AC input frequency: 50 - 60 Hz, Nominal output voltage: 120 V. Dimensions (WxDxH): 17.6 x 2.24 x 1.73" (447 x 57 x 44 mm), Weight: 5.51 lbs (2.5 kg)



Specification:



Design
Type	Single-phase
PDU types	Basic
Mounting	Horizontal/Vertical
Product colour	Black
Certification	cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Rack capacity	0U/1U
Ports & interfaces
AC outlets quantity	12 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C20 coupler
Output connections	(12) IEC 320 C13
Input connection type	IEC-320 C20
Features
Cable length	98.4" (2.5 m)
Certification	cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Ergonomics
Cable length	98.4" (2.5 m)
Power
Maximum power	3680 W
Maximum input current per phase	16 A
Load capacity	3680 VA
Weight & dimensions
Dimensions (WxDxH)	17.6 x 2.25 x 1.75" (447 x 57.2 x 44.5 mm)
Weight	4.52 lbs (2.05 kg)
Package weight	8.02 lbs (3.64 kg)
Package dimensions (WxDxH)	18.3 x 9.02 x 2.76" (464 x 229 x 70 mm)
Packaging data
Package weight	8.02 lbs (3.64 kg)
Package dimensions (WxDxH)	18.3 x 9.02 x 2.76" (464 x 229 x 70 mm)
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
