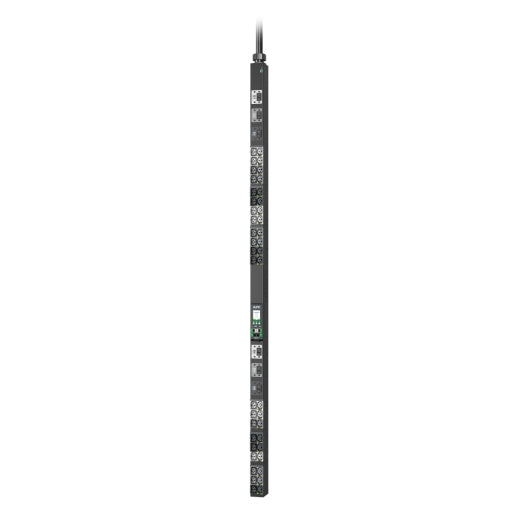

APDU10452MO - APC NETSHELTER RACK PDU ADVANCED, METERED OUTLET, 3PH, 17.3KW, 208V, 60A, 460P9,

APC NetShelter Rack PDU Advanced, Metered Outlet, 3PH, 17.3kW, 208V, 60A, 460P9, 42 Outlet APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Outlet and PDU level power metering for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.



Specification:



Design
Type	Single-phase
PDU types	Metered, Switched
Display	LCD
Product colour	Black
Ports & interfaces
AC outlets quantity	42 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports	2
Features
Cable length	70.9" (1.8 m)
Management features
Management platform	NMC
Ergonomics
Cable length	70.9" (1.8 m)
Display	LCD
Power
Maximum power	48 W
Nominal input voltage	208 V
Nominal output voltage	208 V
Power protection features	Overload
Maximum current	60 A
Load capacity	17300 VA
AC input frequency	50/60 Hz
Number of phases	3
Weight & dimensions
Weight	24.9 lbs (11.3 kg)
Width	2.2" (56 mm)
Depth	2.95" (75 mm)
Height	70.1" (1780 mm)
Package width	10.3" (262 mm)
Package depth	5.2" (132 mm)
Package height	78" (1980 mm)
Package weight	31.5 lbs (14.3 kg)
Packaging data
Package width	10.3" (262 mm)
Package depth	5.2" (132 mm)
Package height	78" (1980 mm)
Package weight	31.5 lbs (14.3 kg)
Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	23 - 140 °F
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 600000" (0 - 15240 m)
Technical details
Sustainability certificates	RoHS
