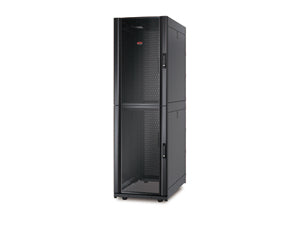

AR3200 - APC NETSHELTER SX COLOCATION 2 X 20U 600MM WIDE X 1070MM DEEP ENCLOSURE WITH SIDES B

Two compartment enclosure for colocation facilities with customers requiring a minimal amount of rack space. This multi-tenant, security enhanced enclosure is provided with a compact width to optimize data center space. Includes: Adjustable vertical mounting rails, Baying hardware, Documentation CD, Door key, Installation guide, Leveling feet, Pre-installed casters, Rack mounting hardware, Roof.



Specification:



Features
Size (imperial)	19"
Rack capacity	42U
Type	Freestanding rack
Maximum weight capacity	3756.7 lbs (1704 kg)
Product colour	Black
Weight & dimensions
Package weight	328.7 lbs (149.1 kg)
Mounting depth (max)	41.3" (104.8 cm)
Mounting depth (min)	7.52" (19.1 cm)
Width	23.6" (600 mm)
Depth	47.2" (1200 mm)
Height	78.4" (1991 mm)
Weight	295.6 lbs (134.1 kg)
Size (imperial)	19"
Maximum weight capacity	3756.7 lbs (1704 kg)
Packaging data
Package weight	328.7 lbs (149.1 kg)
Package dimensions (WxDxH)	29.4 x 52.5 x 83.4" (746 x 1334 x 2118 mm)
Technical details
Type	Freestanding rack
Size (imperial)	19"
Dimensions (WxDxH)	23.6 x 47.2 x 78.4" (600 x 1200 x 1991 mm)
Static load	1363.64 kg
Dynamic load	1022.73 kg
Harmonized System (HS) code	85381000
Rack capacity	42U
Colour
Product colour	Black
Other features
Package dimensions (WxDxH)	29.4 x 52.5 x 83.4" (746 x 1334 x 2118 mm)
Dimensions (WxDxH)	23.6 x 47.2 x 78.4" (600 x 1200 x 1991 mm)
Static load	1363.64 kg
Dynamic load	1022.73 kg
