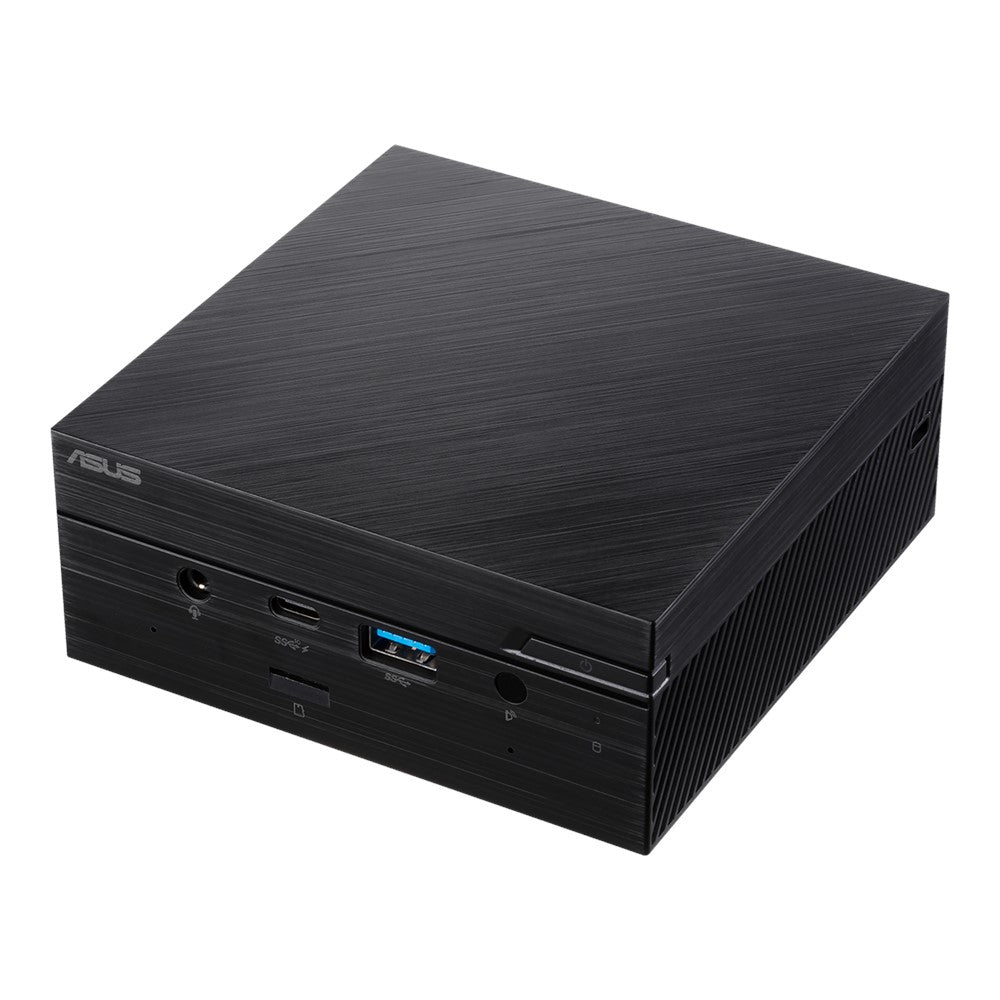

Ultracompact mini PC with 10th Gen Intel® Core processors, up to 64GB DDR4 RAM, M.2 SSD, Thunderbolt 3, Wi-Fi 6, Windows 10 and USB 3.1 Gen 2 Type-C Easy modification, maximum possibilities ASUS Mini PC PN62 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 10th Generation Intel® Core™ processors and support for high-speed 2666 MHz DDR4 memory, Mini PC PN62 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6 (802.11ax) networking ensures stable, high-speed data transfers, even in crowded networking environments, and a USB-C port with Power Delivery (PD) supports data transfer, power and DisplayPort functionality over a single cable. Mini PC PN62 also supports Microsoft Cortana via dual-array front microphones for convenient voice control and features an infrared (IR) sensor, letting you control applications via remote control. Upgrade-friendly A convenient sliding chassis design lets you add or upgrade an M.2 SSD, 2.5-inch HDD or SSD, or memory in two easy steps using just a screwdriver. A bare-bones* option is also available, giving you maximum flexibility to customize your system. Dual storage design ASUS Mini PC PN62 fits one Intel® Optane™ Memory or M.2 SSD, and a 2.5-inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs. Modern, space-saving design With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN62 easily blends into home, office and retail environments. Compact and lightweight at 115mm x 115mm x 49mm with a 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.
Specification:
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor model | i5-10210U |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 1.6 GHz |
| Processor cores | 4 |
| Processor family | Intel Core i5 |
| Processor manufacturer | Intel |
| CPU configuration (max) | 1 |
| Processor cache | 6 MB |
| Processor generation | 10th gen Intel® Core™ i5 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2666 MHz |
| Maximum internal memory | 64 GB |
| Video | |
| On-board graphics adapter | Yes |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA |
| Number of storage drives supported | 2 |
| Optical drive type | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| SSD form factor | M.2 |
| Graphics | |
| On-board graphics adapter | Yes |
| On-board graphics adapter model | Intel® UHD Graphics |
| Discrete graphics adapter model | Not available |
| Audio | |
| Built-in speaker(s) | No |
| Audio chip | Realtek ALC3236-VB2 |
| Network | |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel WGI219V |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Ports & interfaces | |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| Design | |
| Product type | Mini PC |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | Black |
| Chassis type | mini PC |
| Performance | |
| Optical drive type | No |
| Audio chip | Realtek ALC3236-VB2 |
| Processor special features | |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Flex Memory Access | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Embedded options available | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Colour | |
| Product colour | Black |
| Technical details | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Embedded options available | No |
| Processor cores | 4 |
| Optical drive type | No |
| Chassis type | mini PC |
| Packaging data | |
| AC adapter included | Yes |
| Power | |
| AC adapter output voltage | 19 V |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Weight & dimensions | |
| Width | 4.53" (115 mm) |
| Depth | 4.53" (115 mm) |
| Height | 1.93" (49 mm) |
| Weight | 24.7 oz (700 g) |
| Packaging content | |
| Display included | No |
| AC adapter included | Yes |
| Other features | |
| Embedded options available | No |
| Chassis type | mini PC |
