Description

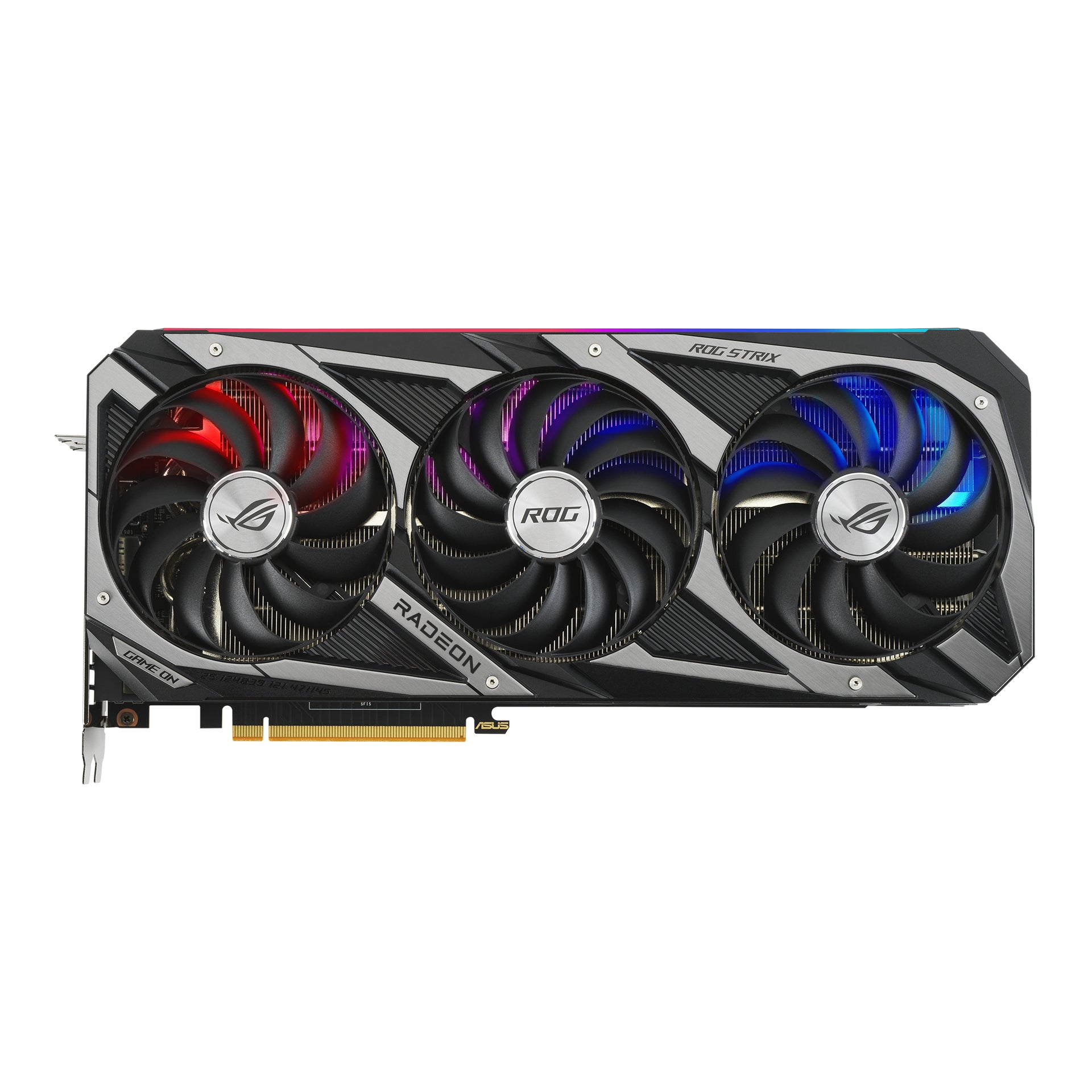

TAKE FLIGHT The ROG Strix Radeon™ RX 6800 merges an industry-leading cooling solution with high-end power performance and additional creature comforts. Beneath the surface, a massive heatsink is cooled by a trio of Axial-tech fans that utilize a new rotation scheme and specialized roles for central and auxiliary fans. At the heart of the beast, top-shelf capacitors, chokes, and MOSFETs effortlessly deliver hundreds of watts at a millisecond’s notice. A host of convenient features, including a Dual BIOS switch, 0dB mode, FanConnect PWM headers, and metal backplate, make this frame-crunching colossus an ideal choice for DIY builders. BIGGER, BETTER COOLING This generation, our Axial-tech fan design has matured with an increased blade count on all three fans: 13 on the center fan and 11 on the auxiliary fans. The barrier rings on the side fans have been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader. The fan design growth is specifically optimized for a massive new heatsink that features more fins and surface area than previous iterations. MAXCONTACT To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer. 2.9-SLOT DESIGN The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.9-slot footprint. FIERCE SHROUD A striking shroud with metal accents mirrors the design aesthetic of ROG and ROG Strix motherboards. Mixing surface textures and materials make a statement when vertically mounted and lit by chassis LEDs. For those who prefer a sleeker, more subtle look, the greyscale colorway allows it to seamlessly blend into the build. ARMORED UNDERSIDE The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software. GNARLY GRILL An impressive addressable RGB element on the front of the card can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the Radeon RX 6800, two 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue. The Strix’s reinforced metal frame is also visible here, adding a literal layer of durability. GPU TWEAK II The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card. RADEON SOFTWARE The latest Radeon™ Software Adrenalin 2020 Edition unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.
Specification:
Internal I/O | |
---|---|
Number of M.2 (M) slots | 4 |
Thunderbolt headers | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
12V power connector | Yes |
Supported storage drive interfaces | M.2, SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
TPM connector | Yes |
Power fan connector | Yes |
Number of SATA III connectors | 6 |
Number of chassis fan connectors | 3 |
Front panel audio connector | Yes |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
RGB LED pin header | Yes |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z590 |
Supported processor sockets | LGA 1200 (Socket H5) |
Parallel processing technology support | 2-Way SLI |
HDMI version | 2.0 |
Motherboard form factor | ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z590 |
Windows operating systems supported | Windows 10 x64 |
Supported processor sockets | LGA 1200 (Socket H5) |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
Supported processor sockets | LGA 1200 (Socket H5) |
Processor socket | LGA 1200 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5133,5333 MHz |
Maximum internal memory | 128 GB |
Unbuffered memory | Yes |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
Number of storage drives supported | 10 |
Graphics | |
Parallel processing technology support | 2-Way SLI |
Maximum resolution | 5120 x 2880 pixels |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
DisplayPort version | 1.4 |
USB connector type | USB Type-A, USB Type-C |
USB 2.0 ports quantity | 2 |
WiFi-AP antenna jack | 1 |
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 5 |
HDMI version | 2.0 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
DisplayPorts quantity | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Wake-on-LAN ready | Yes |
LAN controller | Intel I225-V |
Ethernet interface type | 2.5 Gigabit Ethernet |
Bluetooth | Yes |
Bluetooth version | 5.2 |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
WLAN controller model | Intel Wi-Fi 6E AX210 |
Features | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z590 |
Windows operating systems supported | Windows 10 x64 |
Supported processor sockets | LGA 1200 (Socket H5) |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Audio chip | Realtek ALC4080 |
Harmonized System (HS) code | 84733020 |
Expansion slots | |
Number of M.2 (M) slots | 4 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 2 |
BIOS | |
BIOS type | UEFI AMI |
Clear CMOS jumper | Yes |
BIOS memory size | 256 Mbit |
Clear CMOS button | Yes |
Video | |
Maximum resolution | 5120 x 2880 pixels |
Software | |
Windows operating systems supported | Windows 10 x64 |
Drivers included | Yes |
Weight & dimensions | |
Width | 12" (305 mm) |
Depth | 9.61" (244 mm) |
Packaging content | |
Drivers included | Yes |
Cables included | SATA |
