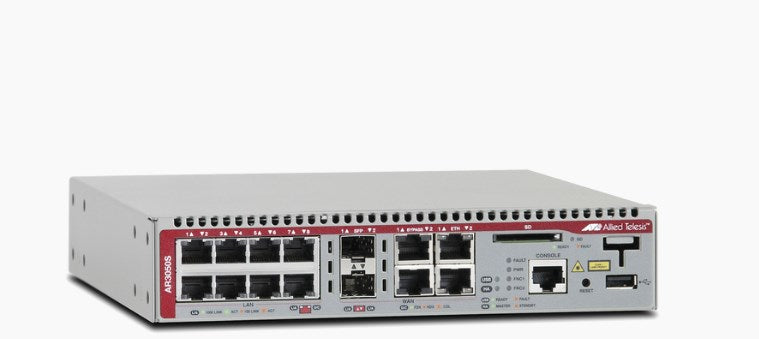

AT-AR3050S-10 - Allied Telesis NEXT-GEN FIREWALL/VPN ROUTER. DUAL-CORE CPU WITH 2XGE WAN, 8XGE LAN. NGFW, ATP

The AR3050S UTM Firewall consolidates threat protection, application and web control capabilities into a single device - ensuring the security of business communications. Together with advanced routing and switching, the AR3050S integrated security platform is the ideal choice for Internet gateway applications.

The dual-core processor significantly increases throughput and enables simultaneous packet inspection. It is optimized for single-pass low-latency traffic inspection. Security engines and threat signature databases from the industry’s leading vendors, with regular updates, provide up-to-the-minute protection against malware, viruses and other cyber-attacks.

- High availability bypass ports allow device redundancy with a single WAN link, reducing ongoing ISP fees. If the Master firewall loses power, traffic is automatically forwarded to the backup device.
- A USB interface supports 3G/4G connectivity, so data transfer can automatically switch to a mobile network when a primary WAN connection becomes unavailable.
- An SD card slot allows easy backup of important files.
- Autonomous Management Frameworkâ„¢ (AMF) compatibility automates device back-up for plug-and-play recovery.



Specification:



Technical details
Concurrent connections	300000
Data transmission
Firewall throughput	1900 Mbit/s
VPN throughput	1000 Mbit/s
IPS/IDS throughput	750 Mbit/s
Maximum firewall connections per second	12000
Performance
Processor cores	2
Processor frequency	1560 MHz
Noise level	35.1 dB
Concurrent connections	300000
Certification	EN55022 class A, FCC class A, VCCI class A EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TuV RoHS
Built-in processor	Yes
Networking
Point-to-point protocol over Ethernet (PPPoE)	Yes
Networking standards	IEEE 802.1Q,IEEE 802.3ad
Port forwarding	Yes
Multicast support	Yes
DHCP server	Yes
DHCP client	Yes
Processor
Processor frequency	1560 MHz
Built-in processor	Yes
Security
Security algorithms	3DES,128-bit AES,192-bit AES,256-bit AES,WEP,WPA
VPN support	IPsec, SHA-1, SHA-256, SHA-512, IKEv2, SSL/TLS VPN
Protocols
Routing protocols	BGP4+,OSPF,OSPFv3,RIP,RIPng
Ports & interfaces
Connectivity technology	Wired
USB 2.0 ports quantity	1
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	8
Compatible memory cards	SD,SDHC
Memory
Internal memory	2048 MB
Storage
Flash memory	4096 MB
Sound emission
Noise level	35.1 dB
Certificates
Certification	EN55022 class A, FCC class A, VCCI class A EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TuV RoHS
Power
AC input voltage	90-260 V
AC input frequency	47/63 Hz
Power consumption (typical)	27 W
Power consumption (max)	27 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Weight & dimensions
Dimensions (WxDxH)	16.7 x 8.27 x 8.66" (425 x 210 x 220 mm)
Weight	3.75 lbs (1.7 kg)
Packaging data
Package width	14.4" (365 mm)
Package height	10.2" (260 mm)
Package depth	4.53" (115 mm)
Package weight	5.73 lbs (2.6 kg)
