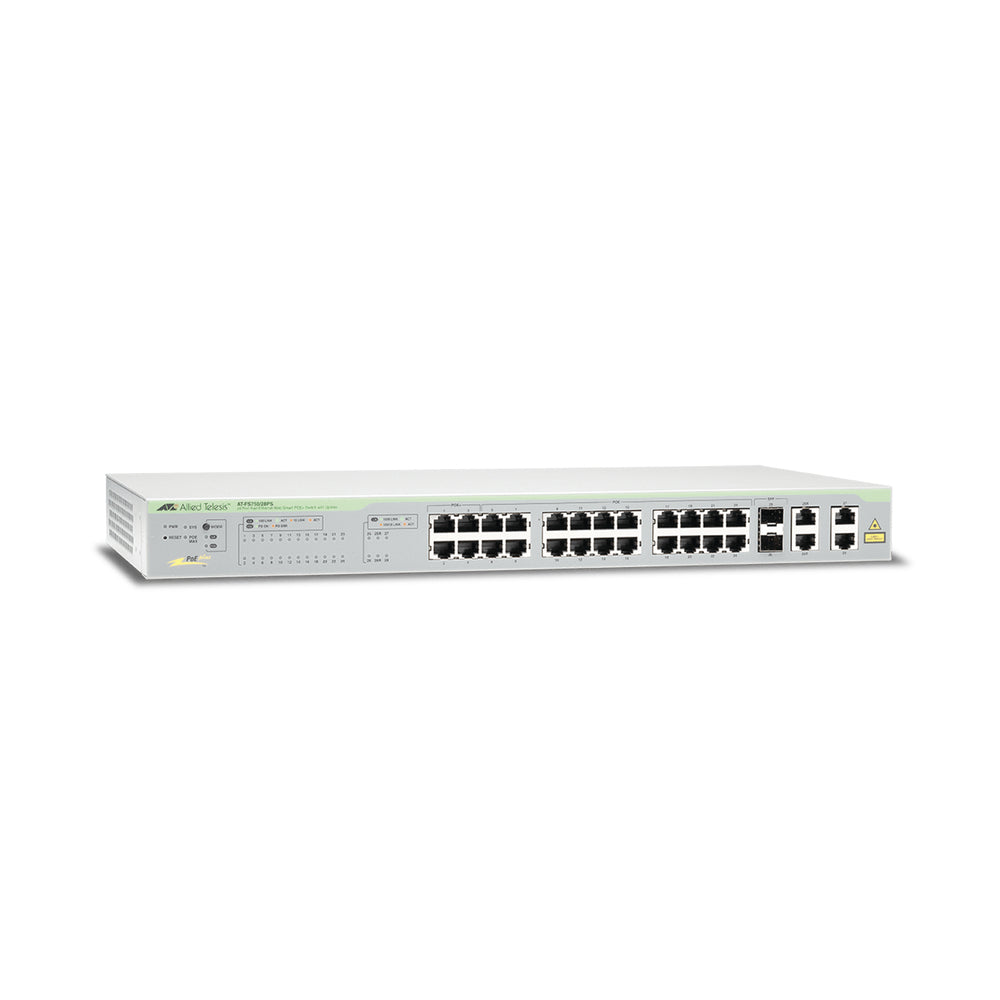

AT-FS750/28PS-10 - Allied Telesis 24 X 10/100T POE+ & 4 SFP WEBSMART SWITCH

Allied Telesis AT-FS750/28PS-10. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 28. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U



Specification:



Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
MIB support	RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Head-of-line (HOL) blocking	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Virtual LAN features	Tagged VLAN,Port-based VLAN
Virtual LAN features
Number of VLANs	4000
Virtual LAN features	Tagged VLAN,Port-based VLAN
Data transmission
Number of multicast groups filtered	256
Number of VLANs	4000
Jumbo frames	10000
Packet buffer memory	4.1 MB
MAC address table	16000 entries
Switching capacity	17.6 Gbit/s
Jumbo frames support	Yes
Forwarding rate	13.1 Mpps
Performance
Packet buffer memory	4.1 MB
Internal memory	128 MB
Flash memory	16 MB
Technical details
Form factor	1U
Product colour	Gray
Rack mounting	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	52
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Combo SFP ports quantity	2
Gigabit Ethernet (copper) ports quantity	2
Fast Ethernet (copper) ports quantity	48
Security
Access Control List (ACL) rules	200
Security algorithms	802.1x RADIUS,SNMPv3
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP server,DHCP client
Multicast features
Number of multicast groups filtered	256
Multicast support	Yes
Certificates
Certification	UL60950-1 2nd edition (UL) FCC/EN55022/CISPR 22 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE Mark CSA / cUL
Memory
Packet buffer memory	4.1 MB
Internal memory	128 MB
Flash memory	16 MB
Design
Form factor	1U
Product colour	Gray
LED indicators	Yes
Certification	UL60950-1 2nd edition (UL) FCC/EN55022/CISPR 22 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE Mark CSA / cUL
Rack mounting	Yes
Indication
LED indicators	Yes
Power
Power consumption (max)	13.25 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	17.3" (440 mm)
Depth	9.84" (250 mm)
Height	1.73" (44 mm)
Weight	6.61 lbs (3 kg)
Packaging data
Mounting brackets included	Yes
Rubber feet	Yes
Included power plug types	US
Manual	Yes
Packaging content
Mounting brackets included	Yes
Rubber feet	Yes
Included power plug types	US
Manual	Yes
