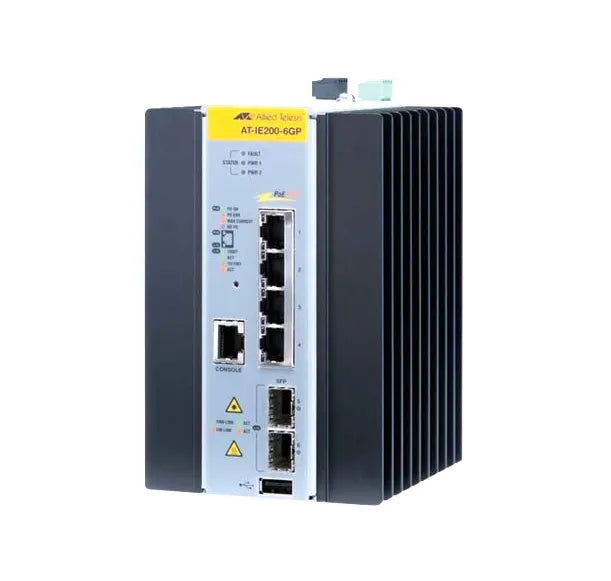

AT-IE200-6GP-80 - Allied Telesis INDUSTRIAL 6-PORT GIGABIT POE SWITCH W/AW+

The Allied Telesis IE200 Series of industrial switches is a cost-effective solution that meets the high reliability requirements demanded by industrial applications. The units can be easily managed through Web GUI, SNMP, Telnet, SSH, or Allied Telesis Management Framework (AMF). The AMF is a suite of features that combine to simplify network management across all supported network equipment from the core to the edge; AMF provides simplified device recovery and firmware upgrade management. The IE200 Series with AlliedWare Plus provides Ethernet Protection Switched Ring (EPSRing ) resilient functionality that can prevent network connection failure. With the wide operating temperature range of between -40° and 75°C, IE200 Series switches can be deployed in any of the harshest industrial environments. The AT-IE200-6GP is a PoE Power Sourcing Device (PoE PSE) complaint to IEEE802.3af, IEEE802.3at standards. Each port provides either 15.40W PoE with 12.95W available to the powered device (IEEE802.3af, IEEE802.3at Type 1), or 30.00W PoE+ with 25.50W available to the powered device (IEEE802.3at Type 2). Practical use is to support PTZ cameras with heater/blowers for outdoor application, enhanced infrared (IR) lighting, lighting controller and LED lighting fixtures, Remote Point of Sale (POS) kiosks, network switches, as well as other devices. IE200 allows the configuration of the overall power budget and the power feeding limit on port basis; that establishes a close relationship between power sourcing feature with the real capabilities of the external power supply unit (PSU). The AT-IE200-6GP supports up to 2K MAC addresses and 12Gbps of wired speed switching, so that is ideal for network solution requiring high throughput at the edge.



Specification:



Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
IGMP snooping	Yes
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Number of VLANs	2000
Link aggregation	Yes
10G support	No
Virtual LAN features	VLAN Identifier ( VLAN ID), Port-based VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	2000
Virtual LAN features	VLAN Identifier ( VLAN ID), Port-based VLAN
Data transmission
Number of VLANs	2000
Packet buffer memory	0.25 MB
MAC address table	2000 entries
Switching capacity	12 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Optical fiber
Fiber optic connector	SFP
Performance
Packet buffer memory	0.25 MB
Harmonized System (HS) code	85176990
Power
Power connector	DC-in jack
Power consumption (max)	24 W
Input voltage	12 - 48 V
Technical details
Product colour	Black
Rack mounting	No
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	1
Fiber optic connector	SFP
Console port	RJ-45
Power connector	DC-in jack
Security
Authentication	MAC-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCPv6 client, DHCP server, DHCP client
Multicast features
Multicast support	Yes
Memory
Packet buffer memory	0.25 MB
Design
Product colour	Black
Rack mounting	No
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	6.26" (159 mm)
Depth	2.17" (55 mm)
Height	5.28" (134 mm)
Weight	31.7 oz (900 g)
Logistics data
Harmonized System (HS) code	85176990
Other features
Input voltage	12 - 48 V
