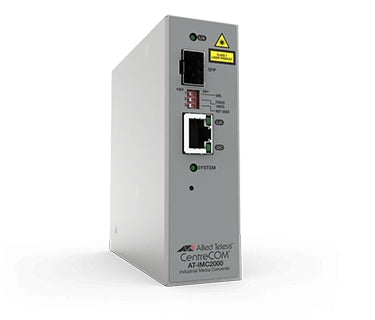

AT-IMC2000T/SP-980 - Allied Telesis TAA,10/100/1000T TO 100X/1000X SFP INDUSTRIAL TEMP GIGABIT MEDIA CONVERTER

10/100/1000T to 100Mbps/1000Mbps SFP industrial temperature media converter. These converters feature Smart MissingLinkâ„¢ (SML) and support up to 10K jumbo frames. The IMC2000T/SP-980 can be mounted on a DIN-rail or used as a desktop/standalone device and is fanless for silent operation. Powering remote devices Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE. The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics. Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device. Remote Power Cycle The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location. Jumbo frame support Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks. Smart MissingLinkâ„¢ (SML) The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.



Specification:



Network
Fiber optic connector	SC
Jumbo frames support	Yes
Store-and-forward	Yes
Packet forwarding rate (100 Mbps)	148880 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (1 Gbps)	1488000 pps
Converter input interface	10Base-T,100Base-TX,1000Base-T
Networking standards	IEEE 802.1Q,IEEE 802.3at
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Converter output interface	1000Base-SX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	1000 Mbit/s
Technical details
International Protection (IP) code	IP30
Wavelength	850 nm
Maximum transfer distance	21653.5" (550 m)
Fiber mode structure	Multi-mode
Tx power (min)	-9.5 dBmW
Tx power (max)	-4 dBmW
Rx power (min)	-17 dBmW
Rx power (max)	-3 dBmW
Internal	No
Sustainability certificates	RoHS
Performance
Jumbo frames support	Yes
Store-and-forward	Yes
Wavelength	850 nm
Maximum transfer distance	21653.5" (550 m)
Fiber mode structure	Multi-mode
Tx power (min)	-9.5 dBmW
Tx power (max)	-4 dBmW
Rx power (min)	-17 dBmW
Rx power (max)	-3 dBmW
Ports & interfaces
Power over Ethernet plus (PoE+) ports quantity	1
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Indication
LED indicators	Yes
Design
DIN rail mounting	Yes
International Protection (IP) code	IP30
Safety	UL 62368-1, EN 62368-1, UL 60950-1 (UL), CAN/CSA C22.2 No. 60950-1 (cUL), EN 60950-1 (TUV)
LED indicators	Yes
Product colour	Gray
Certification	TAA FCC A, EN55024, EN55032, EN55035, VCCI A
Internal	No
Power
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	70 W
Colour
Product colour	Gray
Weight & dimensions
Width	4.37" (111 mm)
Depth	3.78" (96 mm)
Weight	26.4 oz (748 g)
Height	1.38" (35 mm)
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Certificates
Safety	UL 62368-1, EN 62368-1, UL 60950-1 (UL), CAN/CSA C22.2 No. 60950-1 (cUL), EN 60950-1 (TUV)
Certification	TAA FCC A, EN55024, EN55032, EN55035, VCCI A
