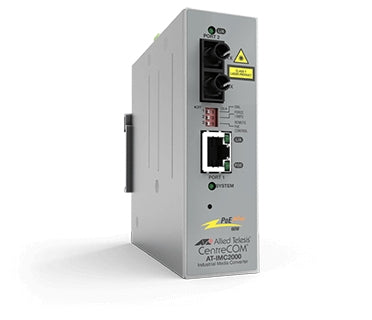

AT-IMC200TP/SC-980 - Allied Telesis TAA, 10/100TX POE+ TO 100FX/SC INDUSTRIAL TEMP FAST ETHERNET MEDIA CONVERTER

10/100/1000T to 100FX/SC Industrial temperature PoE+ media converter. These converters support 802.3at, PoE+, 30W, LTPoE++ and 4-pair up to 70W. The IMC200TP/SC-980 features Remote Power Cycle and Smart MissingLinkâ„¢ (SML) and is fanless for silent operation. Powering remote devices Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE. The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics. Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device. Remote Power Cycle The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location. Jumbo frame support Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks. Smart MissingLinkâ„¢ (SML) The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.



Specification:



Technical details
Product colour	Black
Housing material	Metal
Rack mounting	No
Management features
Switch type	Unmanaged
Switch layer	L2
Ports & interfaces
SFP module slots quantity	1
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Data transmission
Jumbo frames	9216
MAC address table	2000 entries
Switching capacity	12 Gbit/s
Jumbo frames support	Yes
Forwarding rate	8.93 Mpps
Certificates
Safety	AS/NZS 62368.1 CAN/CSA C22.2 No.62368-1 EN/IEC/UL62368-1
Electromagnetic compatibility	AS/NZS CISPR 32, A CAN/CSA-CISPR 22 CISPR 22; CISPR 32 EN55024; EN55032, A EN61000-6-2, IEC61000-6-4, A FCC 15B, A ICES-003, 6 A VCCI,A
Certification	WEEE, RoHS
Design
Wall mountable	Yes
International Protection (IP) code	IP30
DIN rail mounting	Yes
Safety	AS/NZS 62368.1 CAN/CSA C22.2 No.62368-1 EN/IEC/UL62368-1
Product colour	Black
Housing material	Metal
Electromagnetic compatibility	AS/NZS CISPR 32, A CAN/CSA-CISPR 22 CISPR 22; CISPR 32 EN55024; EN55032, A EN61000-6-2, IEC61000-6-4, A FCC 15B, A ICES-003, 6 A VCCI,A
Certification	WEEE, RoHS
Rack mounting	No
Performance
Buffer size	128 KB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	109.6 W
DC voltage range	48 - 54 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	90 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	10 - 95%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Heat dissipation	374 BTU/h
Weight & dimensions
Width	1.18" (30 mm)
Depth	3.74" (95 mm)
Height	5.51" (140 mm)
Weight	17.6 oz (500 g)
Packaging data
Package width	8.5" (216 mm)
Package depth	6.5" (165 mm)
Package height	2.68" (68 mm)
Package weight	24.7 oz (700 g)
Logistics data
Harmonized System (HS) code	85176990
