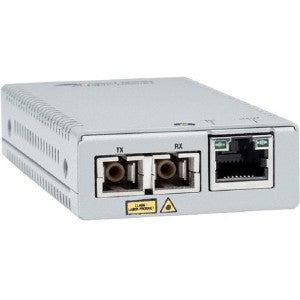

AT-MMC2000/SC-960 - Allied Telesis TAA (FEDERAL) 10/100/1000T TO 1000SX/SC MM MEDIA & RATE CONVERTER, MULTI-REGION

Gigabit Ethernet to Fiber Mini Media and Rate Converter This standalone mini media and rate converter features 10/100/1000T to 1000SX conversion with a multi-mode SC fiber connector and supports from 220 m to 500 m. It is compatible with the MMCR18 rack-mount chassis. Copper to Fiber Mini Media and Rate Converters Overview The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters. Extend Networks The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet). VLAN Support Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks. Small and Flexible The smaller size and external power supply of the MMC Series allows them to be used almost anywhere. Smart MissingLink (SML) The Smart MissingLinkâ„¢ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime. Smart Link Restoration Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them. Power Saving The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today. Link Test The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.



Specification:



Network
Fiber optic connector	SFP
Jumbo frames support	Yes
VLAN support	Yes
Fiber ethernet cabling technology	1000BASE‑SX
Converter input interface	10Base-T, 100Base-T, 1000Base-T
Networking standards	IEEE 802.1Q
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Converter output interface	1000Base-SX
Maximum data transfer rate	1000 Mbit/s
Technical details
Wavelength	850 nm
Maximum transfer distance	19685" (500 m)
Fiber mode structure	Multi-mode
Internal	No
Harmonized System (HS) code	85176990
Performance
Jumbo frames support	Yes
Wavelength	850 nm
Maximum transfer distance	19685" (500 m)
Fiber mode structure	Multi-mode
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	SFP
Design
Product colour	Silver
Certification	CE, UL60950-1, EN60950-1, FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Internal	No
Power
Input voltage	12 V
Input current	0.14 A
Colour
Product colour	Silver
Weight & dimensions
Width	2.16" (54.9 mm)
Depth	4" (101.6 mm)
Weight	6 oz (170 g)
Height	0.858" (21.8 mm)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Packaging content
Quick installation guide	Yes
User guide	Yes
Manual	Yes
Certificates
Certification	CE, UL60950-1, EN60950-1, FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
