AT-X510-28GPX-10 - Allied Telesis 24 PORT POE+ 10/100/1000T STACKABLE GIGABIT EDGE SWITCH W/ 4 SFP+ AND 2 PSU. BAS

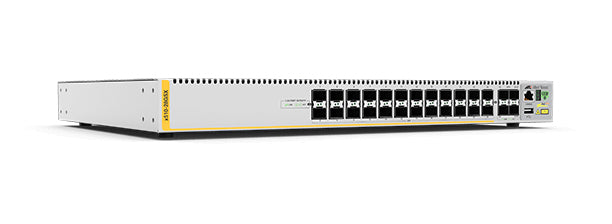

Stackable Gigabit Switch The Allied Telesis x510-28GSX stackable Gigabit edge switch provides an advanced feature set for fiber networks, with 24 x 100/1000X fiber access ports and 4 x 1G/10G SFP+ uplink ports. Two internal power supplies provide high reliability, and the power of VCStackâ„¢ allows multiple units to create a single virtual device for a highly resilient solution that can be distributed over long distances. The x510-28GSX is ideal for Network Service Providers, supporting fiber access solutions for FTTB (Fiber To The Building) or FTTH (Fiber To The Home), and is equally well-suited to enterprise customers who require total data security, or industrial applications, where the noise immunity of fiber connectivity provides a reliable network infrastructure.



Specification:



Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
MIB support	Yes
Ports & interfaces
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Fiber ports quantity	4
Fiber optic connector	SFP
Console port	RJ-45
Power connector	DC-in jack
Network
IGMP snooping	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4094
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Data transmission
Number of VLANs	4094
Throughput	95.2 Mpps
Latency (1 Gbps)	4.4 µs
Latency (10 Gbps)	3.1 µs
Packet buffer memory	2 MB
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Jumbo frames support	Yes
Optical fiber
Fiber optic connector	SFP
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX, 100BASE-BX, 100BASE-FX, 10GBASE-LR, 10GBASE-SR
Performance
Packet buffer memory	2 MB
Stackable	Yes
Noise level	45 dB
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	64 MB
Power
Power connector	DC-in jack
AC input voltage	90 - 260 V
AC input frequency	47/63 Hz
Technical details
Product colour	Gray
Stackable	Yes
Noise level	45 dB
Rack mounting	Yes
Security
IGMP snooping	Yes
DHCP features	DHCPv6 client, DHCP server, DHCPv6 relay, DHCP client
Multicast features
Multicast support	Yes
Memory
Packet buffer memory	2 MB
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	64 MB
Design
Product colour	Gray
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Indication
Power LED	Yes
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	17.3" (440 mm)
Depth	17.3" (440 mm)
Height	1.73" (44 mm)
Weight	12.8 lbs (5.8 kg)
Packaging data
Quick start guide	Yes
User guide	Yes
Package weight	17.2 lbs (7.8 kg)
Other features
Power LED	Yes
Packaging content
Quick start guide	Yes
User guide	Yes
