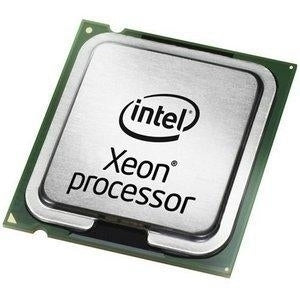

AT80602000801AA - Intel E5504 2.00G 4C 4M PROC
AT80602000801AA - Intel E5504 2.00G 4C 4M PROC
SKU:AT80602000801AA
Regular price
$71.25 USD
Regular price
Sale price
$71.25 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Intel Xeon E5504. Processor family: Intel Xeon 5000 Sequence, Processor socket: LGA 1366 (Socket B), Processor lithography: 45 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 144 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Physical Address Extension (PAE): 40 bit, Export Control Classification Number (ECCN): 3A991.A.1. Package type: Retail box. Processor package size: 42.5mm x 45mm
Specification:
| Processor | |
|---|---|
| Processor base frequency | 2.26 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Nehalem EP |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Thermal Design Power (TDP) | 60 W |
| Processor cache | 8 MB |
| Processor ARK ID | 40201 |
| Processor model | L5520 |
| Processor threads | 8 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0.75 - 1.35 V |
| Processor boost frequency | 2.48 GHz |
| Stepping | D0 |
| Number of QPI links | 2 |
| L3 cache speed | 2.26 GHz |
| CPU multiplier (bus/core ratio) | 17 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 45 nm |
| Processor family | Intel Xeon 5000 Sequence |
| Processor cores | 4 |
| Box | No |
| Processor socket | LGA 1366 (Socket B) |
| Processor code | SLBFA |
| Processor series | Intel Xeon 5500 Series |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Supported memory types | DDR3-SDRAM |
| Memory channels | Triple-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 60 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Technical details | |
| Cache memory | 8 MB |
| Intel Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | No |
| Intel Smart Cache | Yes |
| Intel Hyper Threading Technology (Intel HT Technology) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology (Intel VT) | VT-d, VT-x |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| Number of Graphics & IMC Die Transistors | 731 M |
| Physical Address Extension (PAE) | Yes |
| L3 cache speed | 2.26 GHz |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Processor code | SLBFA |
| Product type | Processor |
| Processor cache | 8192 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 60 W |
| Supported memory types | DDR3-SDRAM |
| Status | Discontinued |
| Product name | Intel Xeon L5520 (8M Cache, 2.26 GHz, 5.86 GT/s Intel QPI) |
| Processor series | Intel Xeon 5500 Series |
| Processor core voltage | 0.75 -1.35 V |
| Physical Address Extension (PAE) | 40 bit |
| Market segment | Server |
| Launch date | Q1'09 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 5.86 |
| Born on date | Q1'09 |
| Maximum memory | 144 GB |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor 5000 Sequence |
| Bus speed | 5.86 GT/s |
| Features | |
| Thermal Design Power (TDP) | 60 W |
| Processor package size | 42.5mm x 45mm |
| Processor ARK ID | 40201 |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| Number of Graphics & IMC Die Transistors | 731 M |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Processor code | SLBFA |
| Physical Address Extension (PAE) | 40 bit |
| Market segment | Server |
| Images Type Map |
|
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 3A991.A.1 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | No |
| Intel Smart Cache | Yes |
| Intel Hyper Threading Technology (Intel HT Technology) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology (Intel VT) | VT-d, VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Operational conditions | |
| Tcase | 70 °C |
| Packaging data | |
| Package type | Retail box |
| Weight & dimensions | |
| Processor package size | 42.5mm x 45mm |
| Other features | |
| Cache memory | 8 MB |
| Intel Virtualization Technology (Intel VT) | VT-d, VT-x |
| Maximum internal memory | 144 GB |
| Maximum internal memory | 147456 MB |
| CPU configuration (max) | 2 |
| Processor code | SLBFA |
