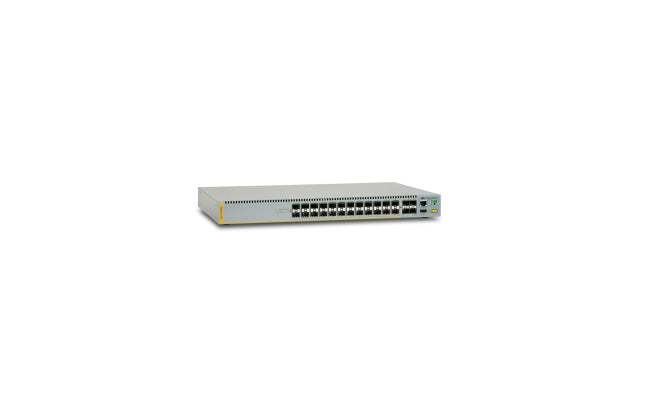

ATX51028GSX80 - Allied Telesis 24 - 100/1000 SFP PORTS, 4 10G SFP+ PORTS, DUAL REPLACEABLE DC POWER SUPPLIES, S

The Allied Telesis AT-x510-28GSX stackable Gigabit edge switch provides an advanced feature set for fiber networks, with 24 x 100/1000X fiber access ports and 4 x 1G/10G SFP+ uplink ports. Two internal power supplies provide high reliability, and the power of VCStackâ„¢ allows multiple units to create a single virtual device for a highly resilient solution that can be distributed over long distances. The AT-x510-28GSX is ideal for Network Service Providers, supporting fiber access solutions for FTTB (Fiber To The Building) or FTTH (Fiber To The Home), and is equally well-suited to enterprise customers who require total data security, or industrial applications, where the noise immunity of fiber connectivity provides a reliable network infrastructure.



Specification:



Management features
Multicast support	Yes
Traffic classification	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	4
Gigabit Ethernet (copper) ports quantity	24
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3x,IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Policy-based routing	Yes
Virtual LAN features	Stacked VLAN,Tagged VLAN,Protocol-based VLAN,Port-based VLAN
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Stacked VLAN,Tagged VLAN,Protocol-based VLAN,Port-based VLAN
IPv4 & IPv6 features
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Performance
Packet buffer memory	4 MB
Stackable	Yes
Physical stacking (units)	4
Noise level	45 dB
Memory type	SDRAM
Technical details
Physical stacking (units)	4
Form factor	1U
Product colour	Gray
Stackable	Yes
Noise level	45 dB
Rack mounting	Yes
Data transmission
Jumbo frames	13000
Throughput	95.2 Mpps
Latency (10-100 Mbps)	9.3 µs
Latency (1 Gbps)	3.9 µs
Latency (10 Gbps)	3 µs
Packet buffer memory	4 MB
Switching capacity	128 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
Security algorithms	3DES,802.1x RADIUS,AES,DES,HTTPS,MD5,PEAP,RSA,SHA-1,SHA-2,SSH,SSH-2,SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server,DHCP relay,DHCPv6 relay,DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP, Telnet
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Certificates
Certification	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TUV RoHS EN55024, EN61
Memory
Packet buffer memory	4 MB
Memory type	SDRAM
Design
Form factor	1U
Product colour	Gray
Stackable	Yes
LED indicators	Yes
Certification	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TUV RoHS EN55024, EN61
Rack mounting	Yes
Indication
LED indicators	Yes
Power
Power consumption (max)	52 W
Power supply included	Yes
AC input voltage	90 - 260 V
AC input frequency	47/63 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 90%
Operating altitude	0 - 120000" (0 - 3048 m)
Heat dissipation	177 BTU/h
Weight & dimensions
Width	17.3" (440 mm)
Depth	12.8" (325 mm)
Height	1.73" (44 mm)
Weight	9.48 lbs (4.3 kg)
Packaging data
Package weight	13.9 lbs (6.3 kg)
