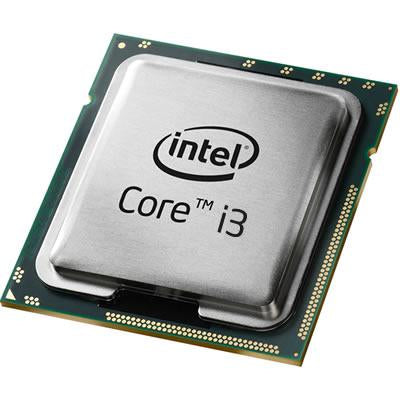

AV8063801032800 - Intel CORE I3-3110M

Intel Core i3-3110M. Processor family: Intel® Core™ i3, Processor socket: PGA988, Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM. On-board graphics card model: Intel® HD Graphics 4000, On-board graphics card outputs supported: DisplayPort, Embedded DisplayPort (eDP), HDMI, Serial Digital Video Out (SDVO), VGA (D-Sub), On-board graphics card base frequency: 650 MHz. Market segment: Mobile, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: AVX. Processor package size: 37.5mm x 37.5mm; 31mm x 24mm



Specification:



Processor
Processor base frequency	1.8 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Ivy Bridge
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	17 W
Processor cache	2 MB
Processor ARK ID	71995
Processor model	1037U
Processor threads	2
System bus rate	5 GT/s
Processor operating modes	64-bit
Compatible chipsets	Intel® HM70 Express, Intel® HM75 Express, Intel HM76 Express, Intel HM77 Express, Intel® QM77 Express, Intel® QS77 Express, Intel UM77 Express
Stepping	P0
CPU multiplier (bus/core ratio)	18
Bus type	DMI
Component for	Notebook
Processor lithography	22 nm
Processor family	Intel® Celeron®
Processor cores	2
Box	No
Processor socket	BGA 1023
Processor code	SR108
Processor series	Intel Celeron 1000 series for Mobile
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM
Memory channels	Dual-channel
ECC	No
Graphics
On-board graphics card outputs supported	Embedded DisplayPort (eDP), DisplayPort, HDMI, Serial Digital Video Out (SDVO), CRT
Number of displays supported (on-board graphics)	3
On-board graphics card model	Intel® HD Graphics
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card base frequency	350 MHz
Power
Thermal Design Power (TDP)	17 W
Technical details
Cache memory	2 MB
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	No
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Flex Memory Access	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Dual Display Capable Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
PCI Express slots version	2.0
PCI Express configurations	1x16, 2x8, 1x8, 2x4
Supported instruction sets	SSE4.1, SSE4.2
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Graphics & IMC lithography	22 nm
Embedded options available	No
CPU configuration (max)	1
Processor code	SR108
Graphics output	eDP/DP/HDMI/SDVO/CRT
Product type	Processor
Processor cache	2048 KB
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Thermal Design Power (TDP)	17 W
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM
Status	Discontinued
Product name	Intel Celeron 1037U (2M Cache, 1.80 GHz)
Processor series	Intel Celeron 1000 series for Mobile
Market segment	Mobile
Launch date	Q1'13
Intel Virtualization Technology (VT-x)	Yes
Graphics max dynamic frequency	1.00 GHz
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q1'13
Maximum memory	32 GB
Processor brand name	Intel Celeron
Last change	63903513
Product family	Intel Celeron Processor
Bus speed	5 GT/s
Features
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	17 W
Processor package size	31mm x 24mm
Processor ARK ID	71995
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	2.0
PCI Express configurations	1x16, 2x8, 1x8, 2x4
Supported instruction sets	SSE4.1, SSE4.2
Graphics & IMC lithography	22 nm
Embedded options available	No
CPU configuration (max)	1
Processor code	SR108
Market segment	Mobile
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	3A991
Commodity Classification Automated Tracking System (CCATS)	NA
PCI Express CEM revision	2.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Wireless Display (Intel® WiDi)	No
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Flex Memory Access	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Dual Display Capable Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	No
Operational conditions
Tjunction	105 °C
Weight & dimensions
Processor package size	31mm x 24mm
Other features
Cache memory	2 MB
Intel® Virtualization Technology (Intel® VT)	VT-x
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
CPU configuration (max)	1
Processor code	SR108
Graphics output	eDP/DP/HDMI/SDVO/CRT
